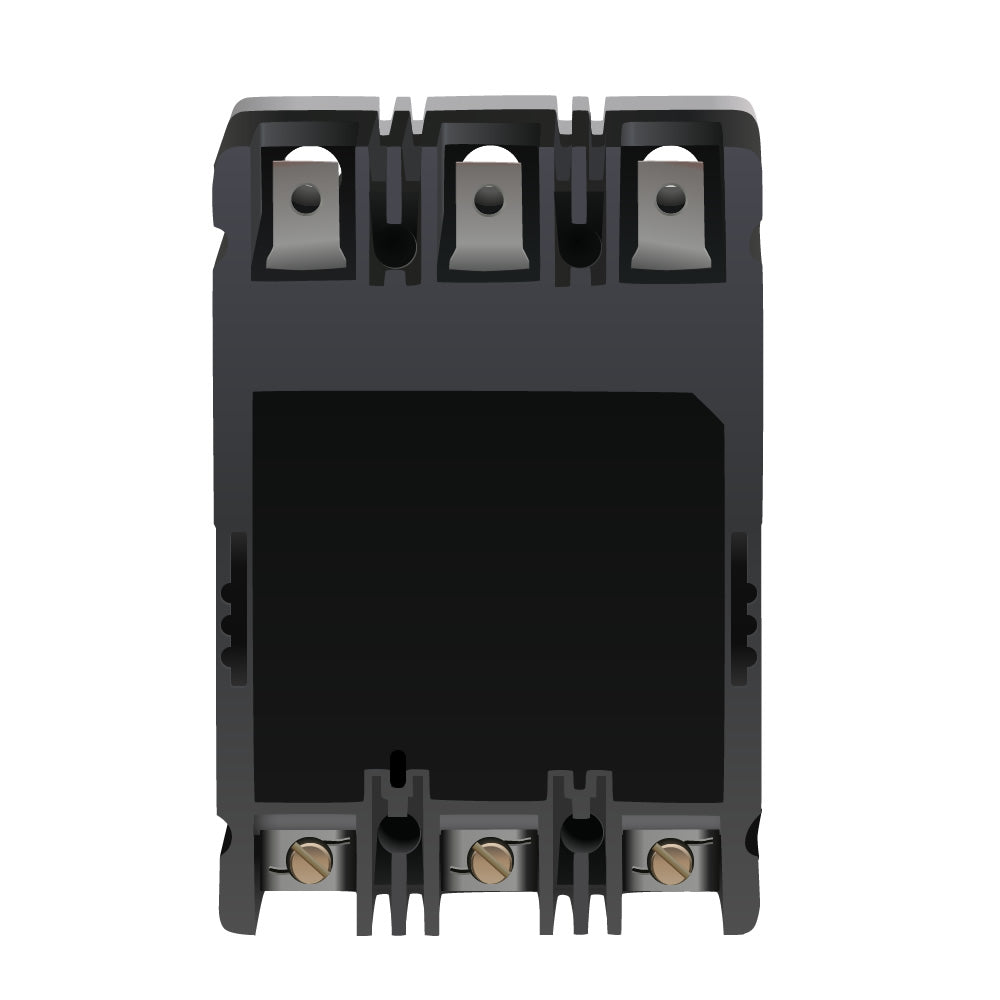

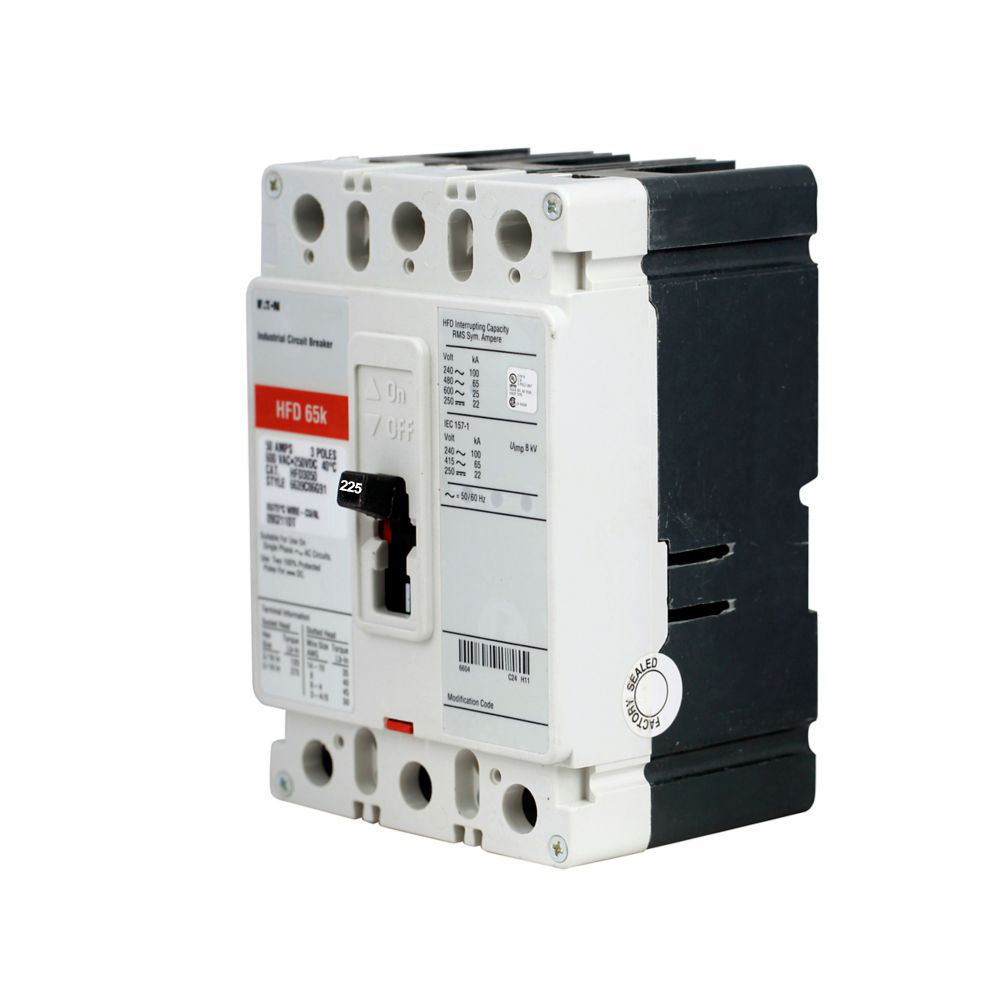

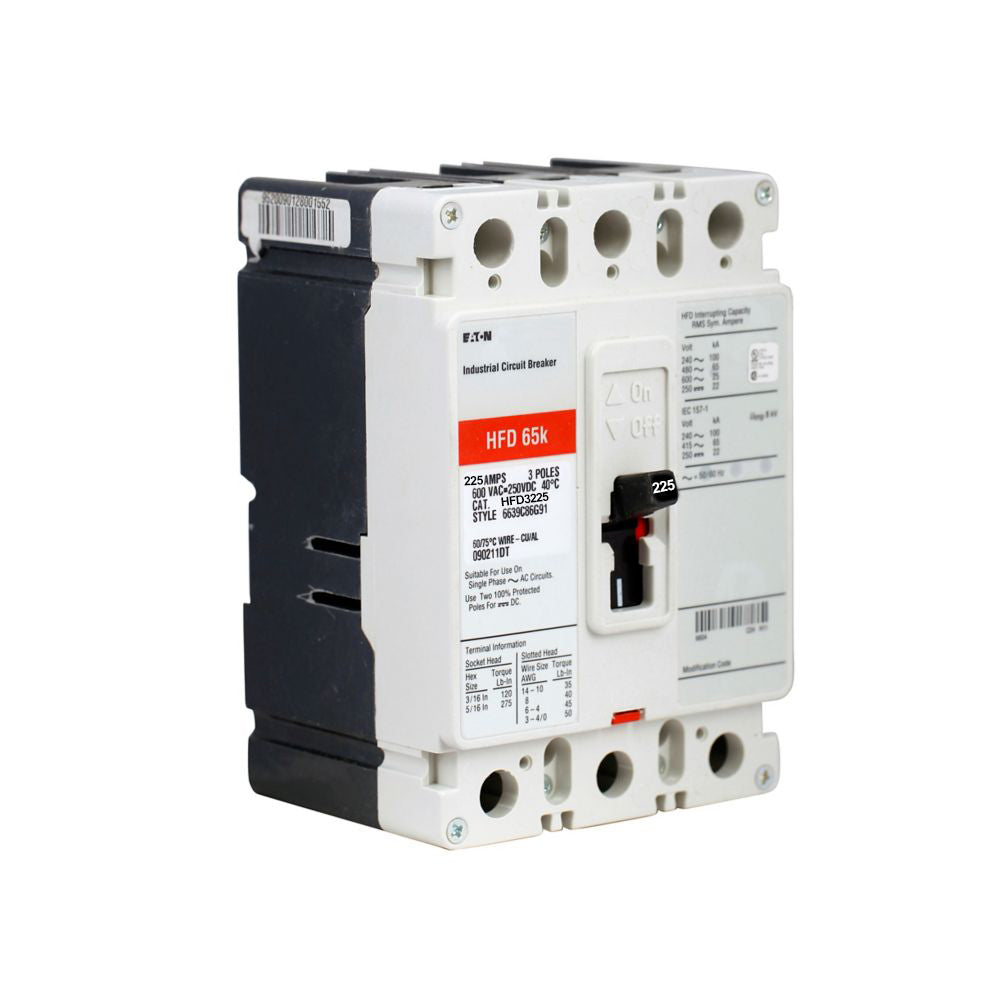

HFD3225 - Cutler Hammer 225A 600V 3-Pole Bolt-On Circuit Breaker HFD Frame

HFD3225

HFD3225 is an Eaton Series C F-Frame molded case circuit breaker designed for industrial and commercial power distribution applications. This three-pole breaker features fixed thermal and fixed magnetic trip units with load-side lug terminals and bolt-on mounting for reliable overcurrent protection.HFD3225 delivers high interrupting capacity with patented contact design for superior performance and fast arc suppression. The breaker is rated for 225 amperes at 600 VAC (250 VDC) and operates at 50/60 Hz. It features thermal-magnetic trip protection with long-time and instantaneous trip functions, making it suitable for three-phase power systems. The non-interchangeable trip design ensures proper application-specific configuration.

• Amperage Rating: 225 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Frame Type: HFD (F-Frame)
• Series: Series C
• Trip Type: Fixed Thermal / Fixed Magnetic
• Interrupt Rating: 65 kA at 480V
• Mounting: Bolt-On
• Terminal Type: Load Side Lug
• Frequency: 50/60 Hz
• Dimensions: 4.125 in. Width x 3.375 in. Depth x 6 in. Height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3225
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679015421
• GTIN : 00786679015421
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.4
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
