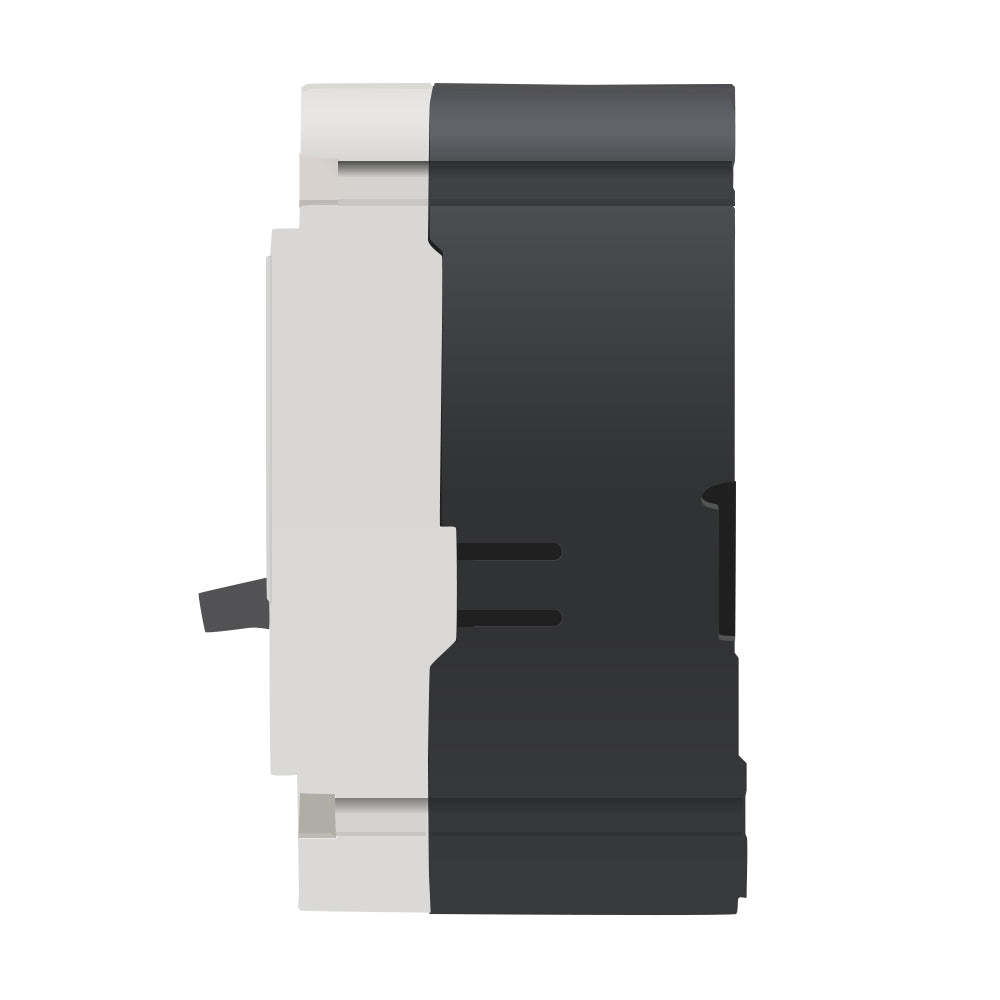

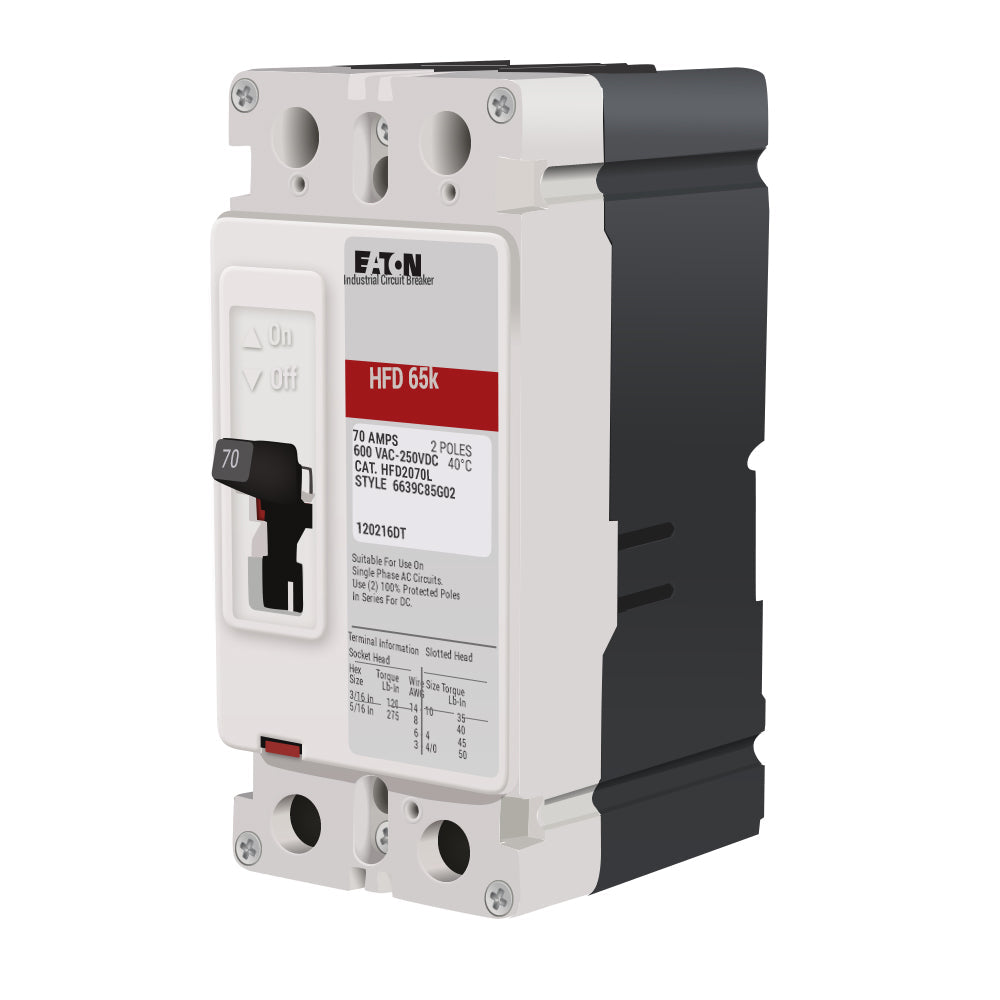

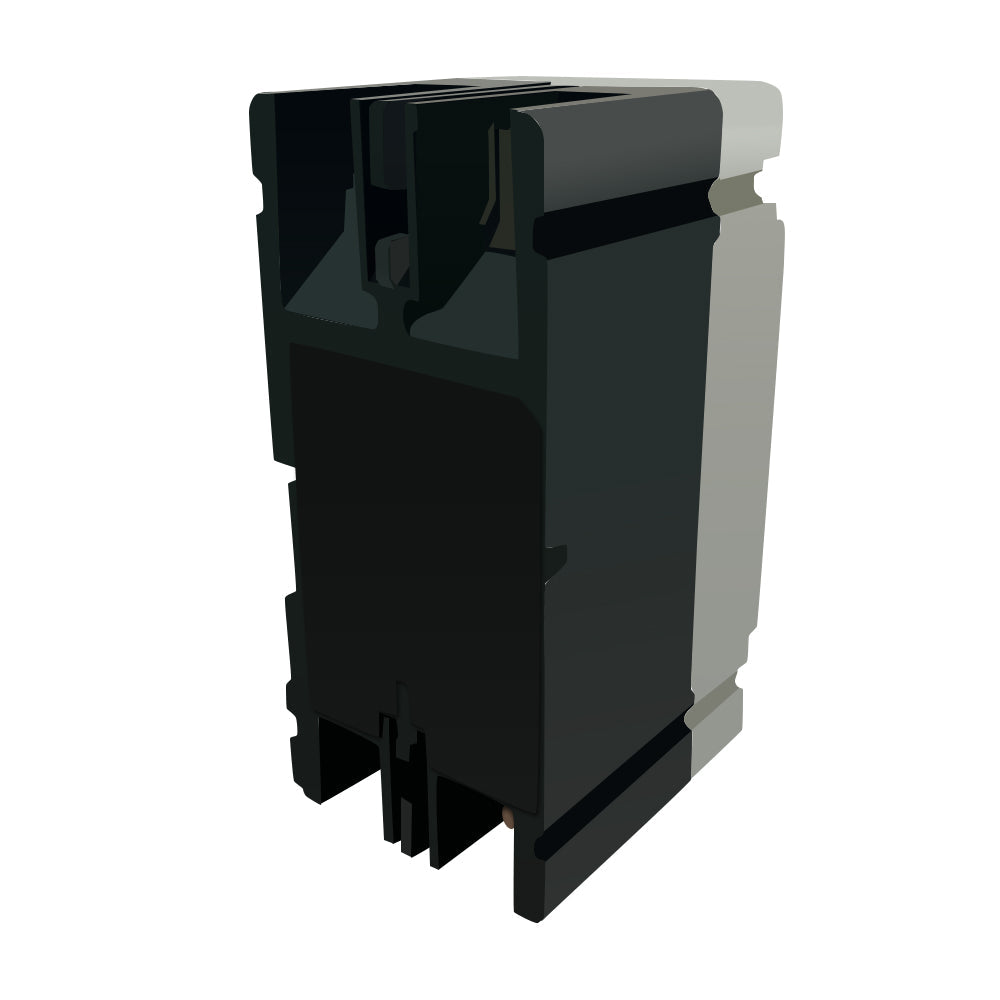

HFD2070L - Westinghouse 70A 600V 2-Pole Molded Case Circuit Breaker F-Frame

HFD2070L

HFD2070L is a Westinghouse 2-pole molded case circuit breaker designed for 70 ampere and 600 volt applications.This breaker features an F-frame Series C design with a thermal magnetic trip unit, providing reliable protection with a high interrupting capacity of 65 kA at 480 VAC and 100 kA at 240 VAC. It is suitable for use in single-phase power distribution systems and includes feed-thru connection capability.

Key Specifications
• Manufacturer: Westinghouse
• Part Number: HFD2070L
• Amperage: 70A
• Voltage Rating: 600 VAC
• Number of Poles: 2
• Frame/Series: F-Frame, Series C
• Interrupting Rating: 65 kA at 480 VAC, 100 kA at 240 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Molded Case
• Phase: Single-phase
• Connection Type: Feed-Thru
• Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HFD2070L
• Manufacturer : Westinghouse
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786679451823
• GTIN : 00786679451823
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL Listed
