Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF368R

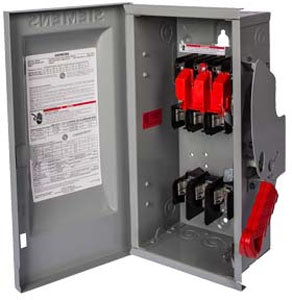

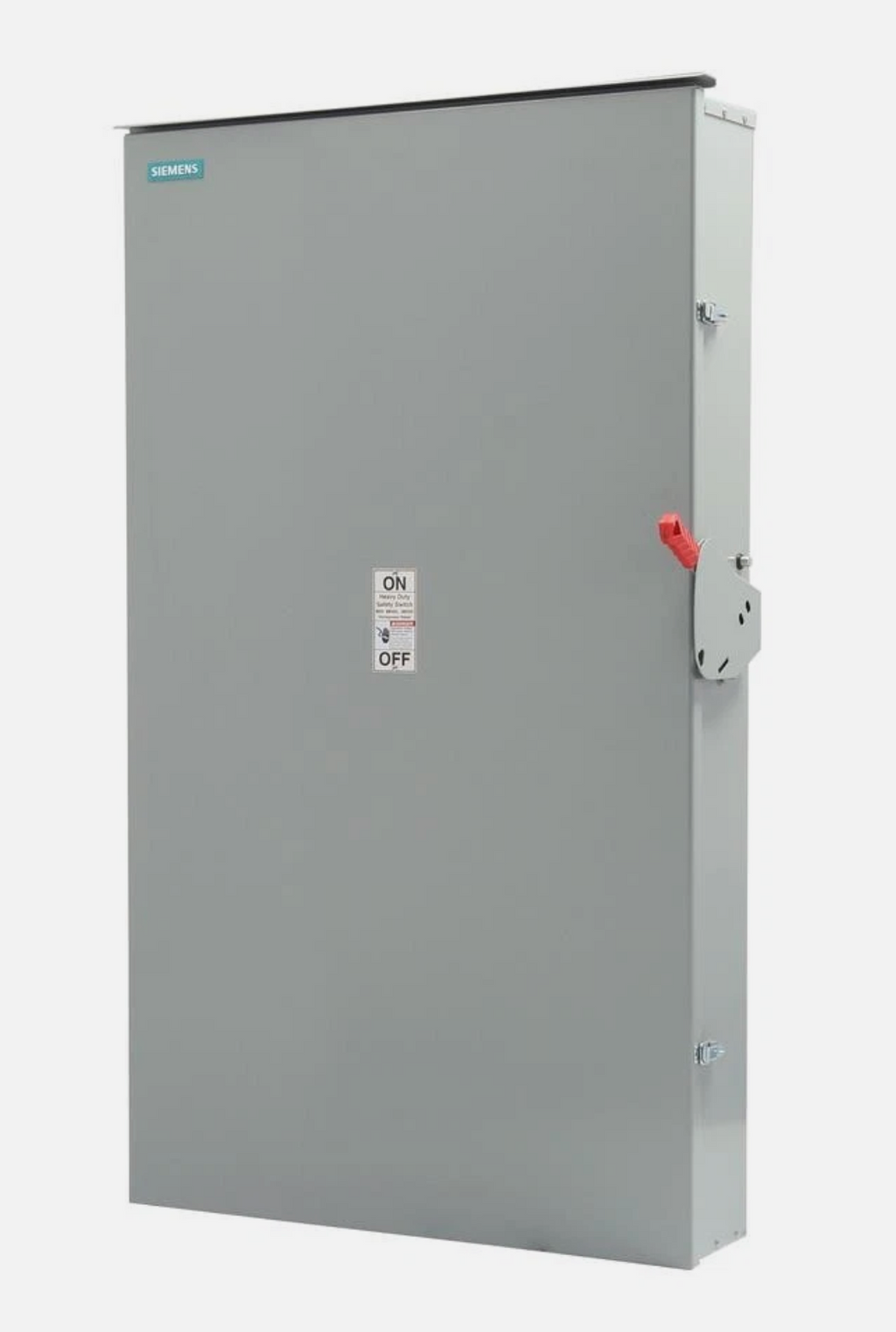

HF368R is a Siemens heavy duty fusible safety switch designed for low voltage circuit protection with a 1200 amp rating.This Siemens HF368R safety switch features a 3-pole, 3-fuse configuration rated for 600 VAC and 250 VDC. It is enclosed in a NEMA 3R outdoor-rated enclosure with a single throw action and a 2500 operating cycle durability. The switch supports up to 250 horsepower and is designed for heavy duty industrial applications requiring reliable disconnect and circuit protection.
- Key Specifications
- Manufacturer: Siemens
- Part Number: HF368R
- Amperage: 1200A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Fusible: Yes, 3-fuse
- Enclosure Type: NEMA 3R (Outdoor)
- Contact Form: TPST (Triple Pole Single Throw)
- Horsepower Rating: 250 HP
- Operating Cycles: 2500
- Mounting Type: Enclosed Safety Switch
- Interrupt Rating: Heavy Duty
Specifications
- Part Number: HF368R
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : PGP
Product Data
- UPC : 783643151376
- GTIN : 00783643151376
- Country of Origin : Mexico
- Dimensions : 74.803 x 42.913 x 11.811 inch
- Weight : 350.733 lb
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
