Siemens HF368NR Heavy Duty Safety Switch | 1200A 600V Fusible 3-Pole NEMA 3R Outdoor

HF368NR

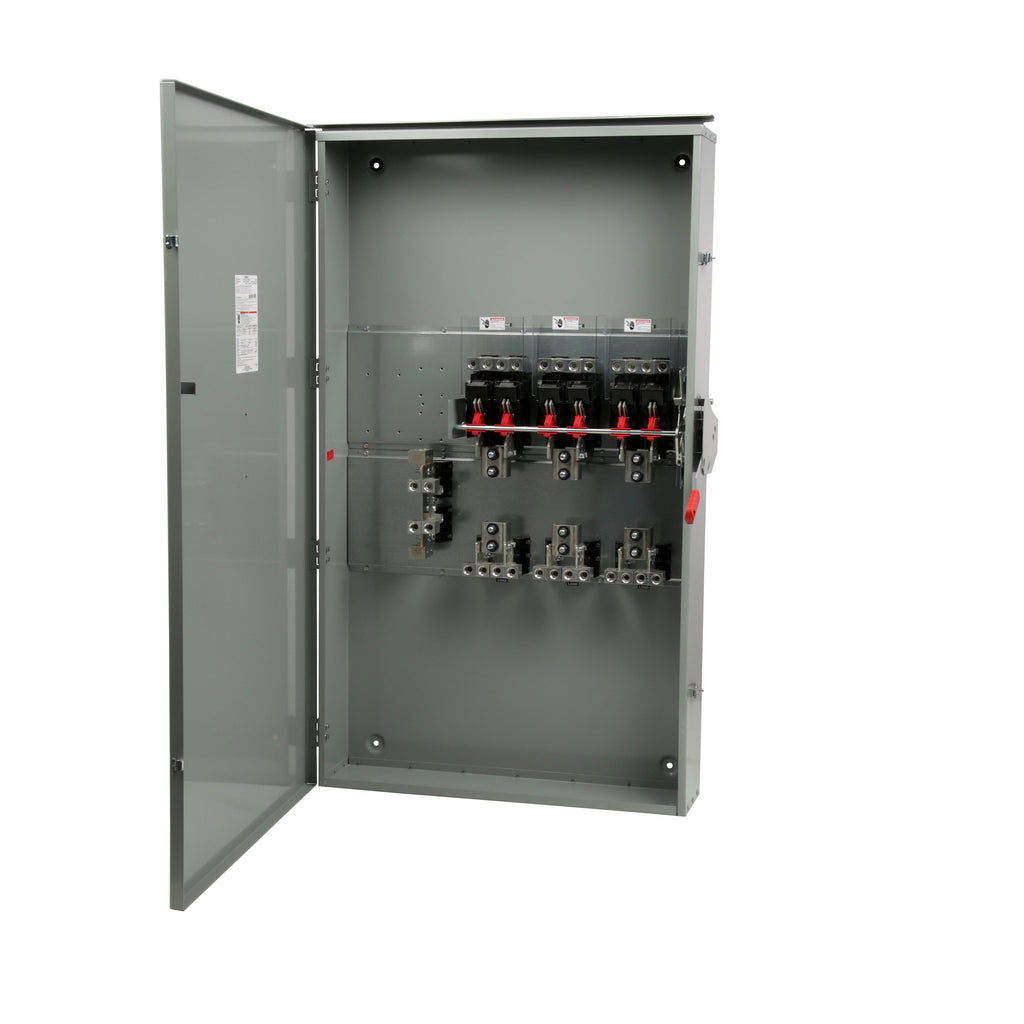

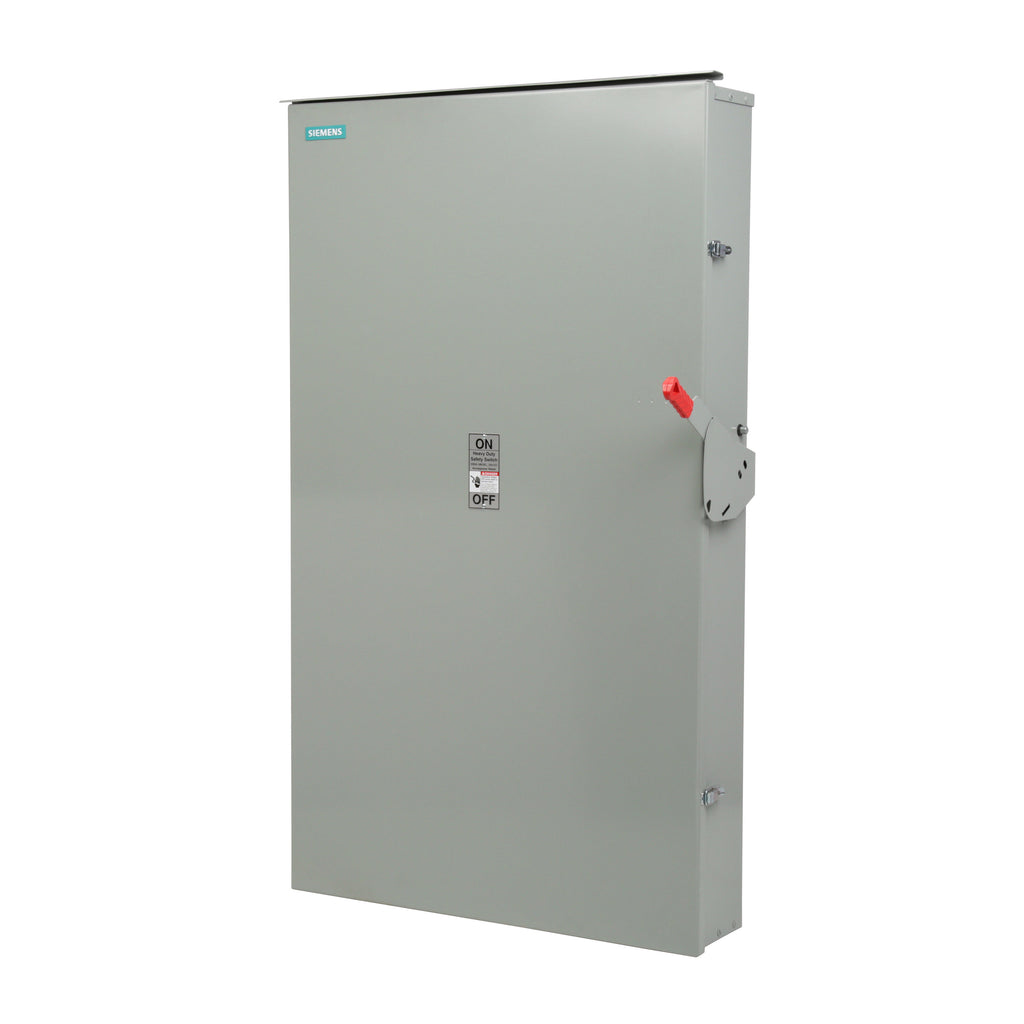

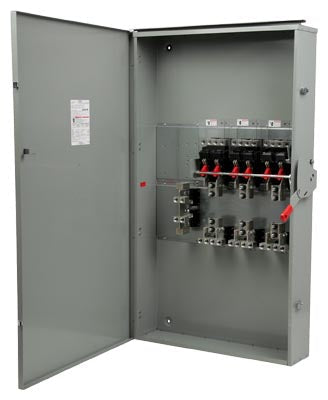

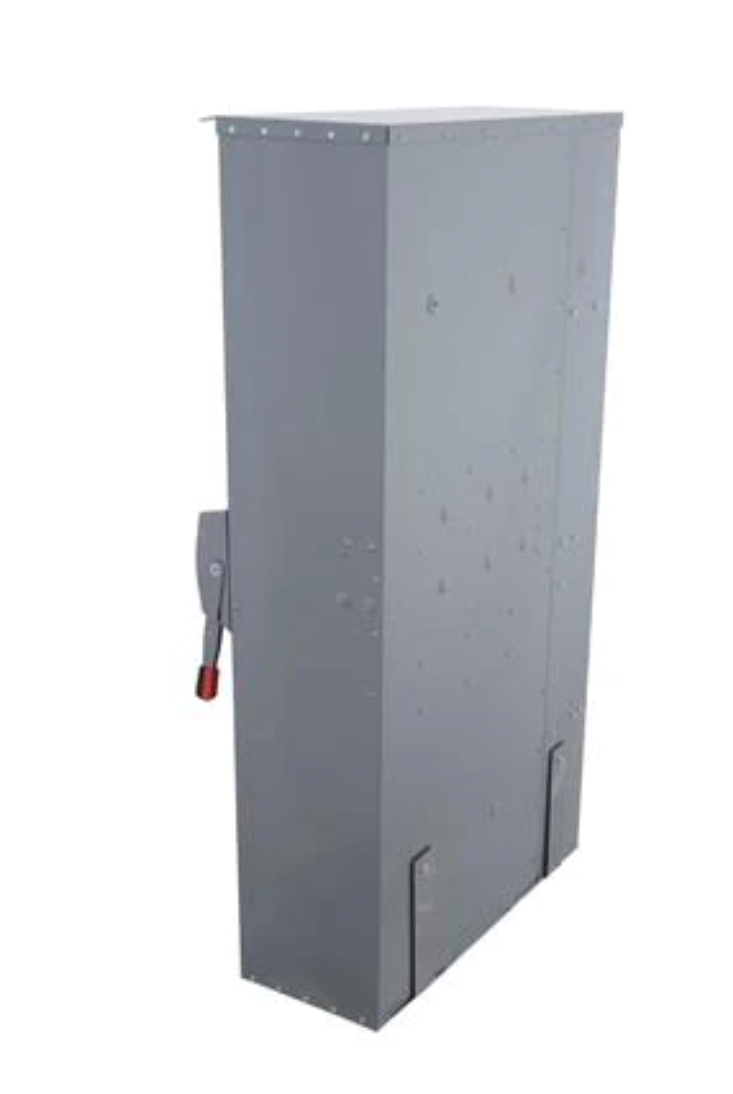

Siemens HF368NR heavy duty safety switch — 1200A, 600V, 3-pole, fusible, NEMA 3R

The Siemens HF368NR is a heavy duty fusible safety switch rated for 1200 amps at 600 volts AC, designed for reliable disconnection and overcurrent protection in demanding commercial and industrial power distribution applications. Part of the VBII Series, it features a 3-pole, 4-wire configuration with a solid neutral, accepts Class L fuses, and is housed in a NEMA 3R steel enclosure rated for outdoor and wet location installation. The switch is UL Listed to UL 98 and carries a 200kA AIC interrupt rating, making it suitable for service entrance, motor control centers, and main disconnect applications up to 250 hp.

Key features include a quick-make, quick-break operating mechanism with visible blade double-break switching, arc chutes for thermal dissipation, a defeatable dual cover interlock, and a red handle grip designed for hook stick operation. The handle can be padlocked in the off position with up to three padlocks. Mechanical lugs accept copper or aluminum conductors rated 60°C or 75°C and are field-convertible to a wide range of compression connectors. The side-hinged door opens 180° for easier wiring, and generously sized top, bottom, and side gutters meet or exceed NEC wire bending space requirements.

Common applications

• Outdoor service entrance disconnects
• Industrial machinery isolation
• Power distribution panels
• Motor control center feeders
• Main disconnect applications

Key specifications

• Part number: HF368NR
• Manufacturer: Siemens
• Series: VBII
• Switch type: Heavy duty fusible safety switch
• Amperage: 1200A (range: 800A–1200A)
• Voltage: 600V AC
• Phases: 3
• Poles: 3
• Wires: 4 (with solid neutral)
• Fuse class: Class L
• AIC rating: 200kA @ 600V
• NEMA enclosure: Type 3R (outdoor / rainproof)
• Mounting: Surface mount
• Configuration: Single throw
• Horsepower rating: 250 hp
• Compatible frames: PGP
• Operating temperature: -29°C to 85°C (-20°F to 185°F)
• Certifications: UL Listed (UL 98)
• Frequency: 60 Hz
• Material: Steel

Product identification

• UPC: 783643174214
• GTIN: 00783643174214
• Country of origin: Mexico
• Dimensions: 74.803" H × 42.913" W × 11.811" D
• Weight: 350 lb

Specifications

• Part Number: HF368NR
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : L
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Amperage Maximum : 1200
• Amperage Minimum : 800
• Compatible Frames : PGP

Product Data

• UPC : 783643174214
• GTIN : 00783643174214
• Country of Origin : Mexico
• Dimensions : 74.803 x 42.913 x 11.811 inch
• Weight : 350 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
