Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF367N

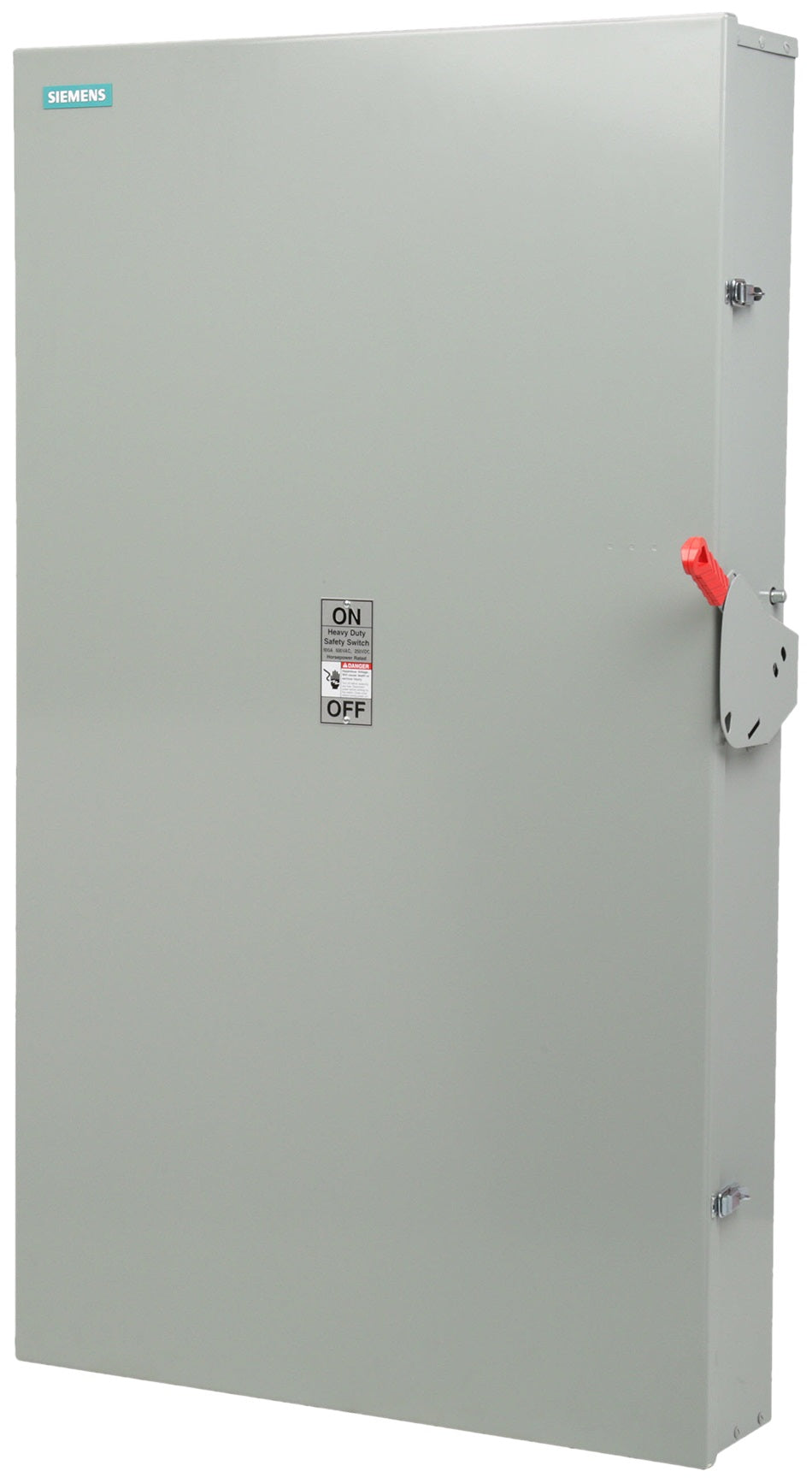

HF367N is a Siemens heavy duty fusible safety switch rated for 800 amps and 600 VAC, designed for industrial power distribution applications.HF367N features a 3-pole, 4-wire configuration with a 200 kA interrupt rating and a NEMA 1 steel enclosure for indoor surface mounting. It includes mechanical lug terminals, a single throw trip unit, and supports 60 Hz frequency operation. The switch is UL 98 certified and built to withstand ambient temperatures from -29 to 85 degrees Celsius.
- Key Specifications
- Amperage: 800 A
- Voltage: 600 VAC
- Poles: 3
- Enclosure Type: NEMA 1 Steel
- Mounting Type: Surface Mount
- Interrupt Rating: 200 kA
- Trip Unit: Single Throw
- Frequency: 60 Hz
- Terminal Type: Mechanical Lugs
- Dimensions: Approx. 66.67" H x 38.4" W x 14.68" D
- Certifications: UL 98
- Phase: 3
Specifications
- Part Number: HF367N
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : PGP
Product Data
- UPC : 783643151147
- GTIN : 00783643151147
- Country of Origin : Mexico
- Dimensions : 74.803 x 42.913 x 11.811 inch
- Weight : 350.733
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
