Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF367J

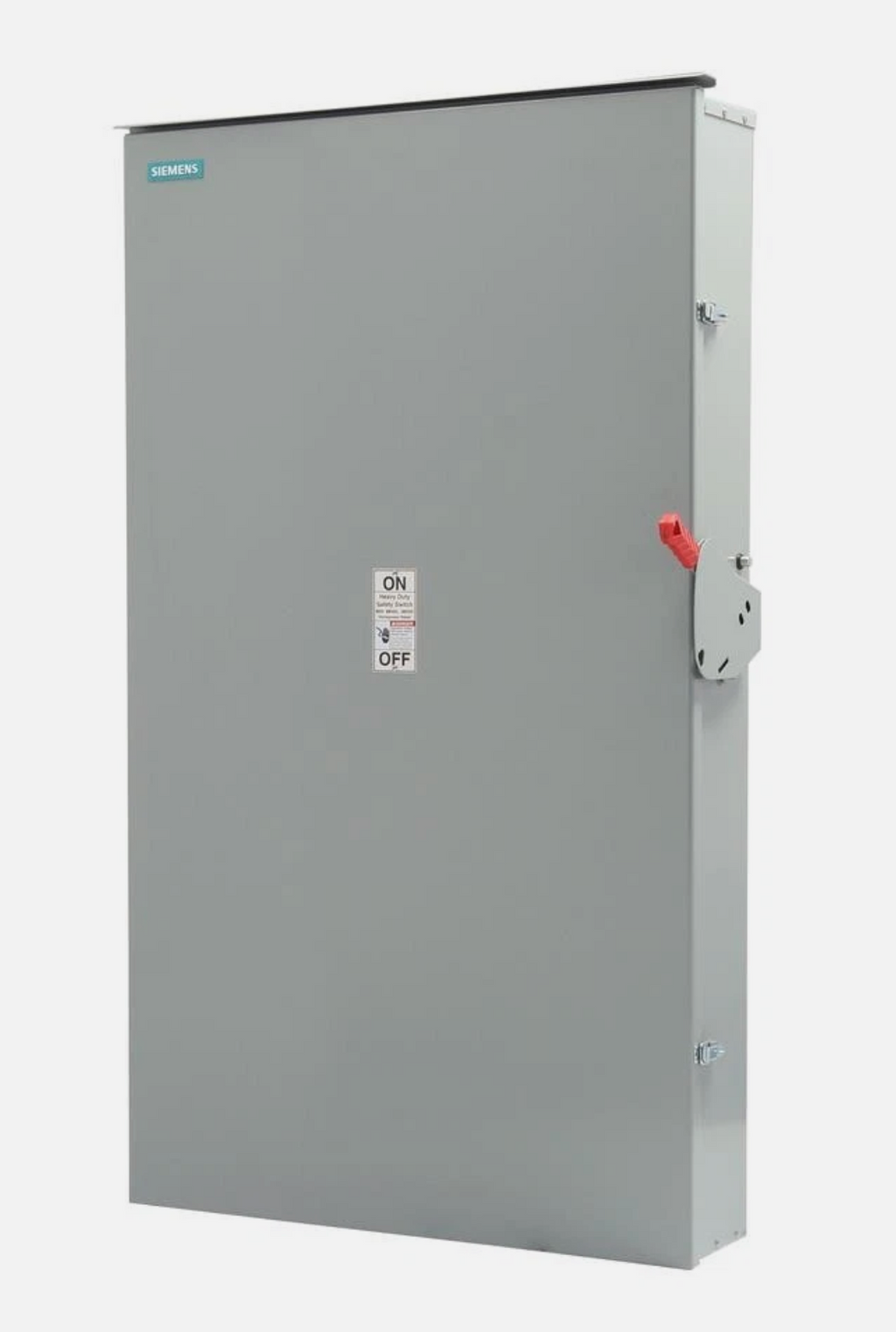

HF367J is a Siemens heavy duty fusible safety switch designed for low voltage industrial applications with 600 VAC rating and 800 ampere capacity. This enclosed safety switch features a Type VBII design with three poles and three fuses, providing reliable circuit protection and isolation in demanding environments. The switch is housed in a NEMA 12 industrial enclosure and supports 250 horsepower at rated voltage, making it suitable for motor control and power distribution applications.
- Amperage Rating: 800 A
- Voltage Rating: 600 VAC
- Poles: 3-Pole
- Contact Form: TPST (Three Pole Single Throw)
- Enclosure Type: NEMA 12
- Fused: Yes, 3-Fuse Configuration
- Horsepower Rating: 250 hp
- Switch Type: Heavy Duty Fusible Safety Switch
- Insulation: Included
Specifications
- Part Number: HF367J
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : L
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- Compatible Frames : PGP
Product Data
- UPC : 783643151888
- GTIN : 00783643151888
- Country of Origin : Mexico
- Dimensions : 74.803 x 42.913 x 11.811 inch
- Weight : 350.733
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
