Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF366A

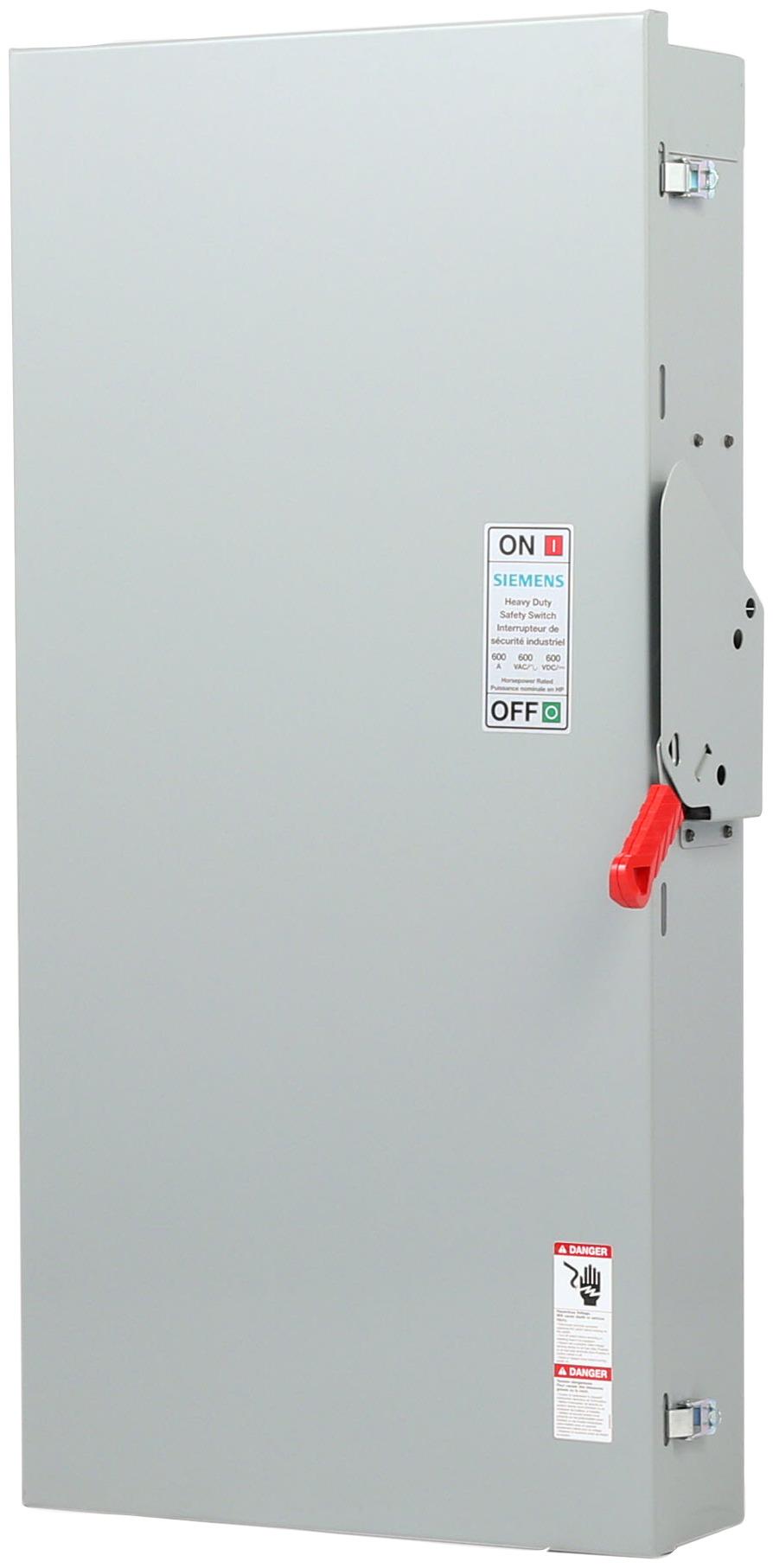

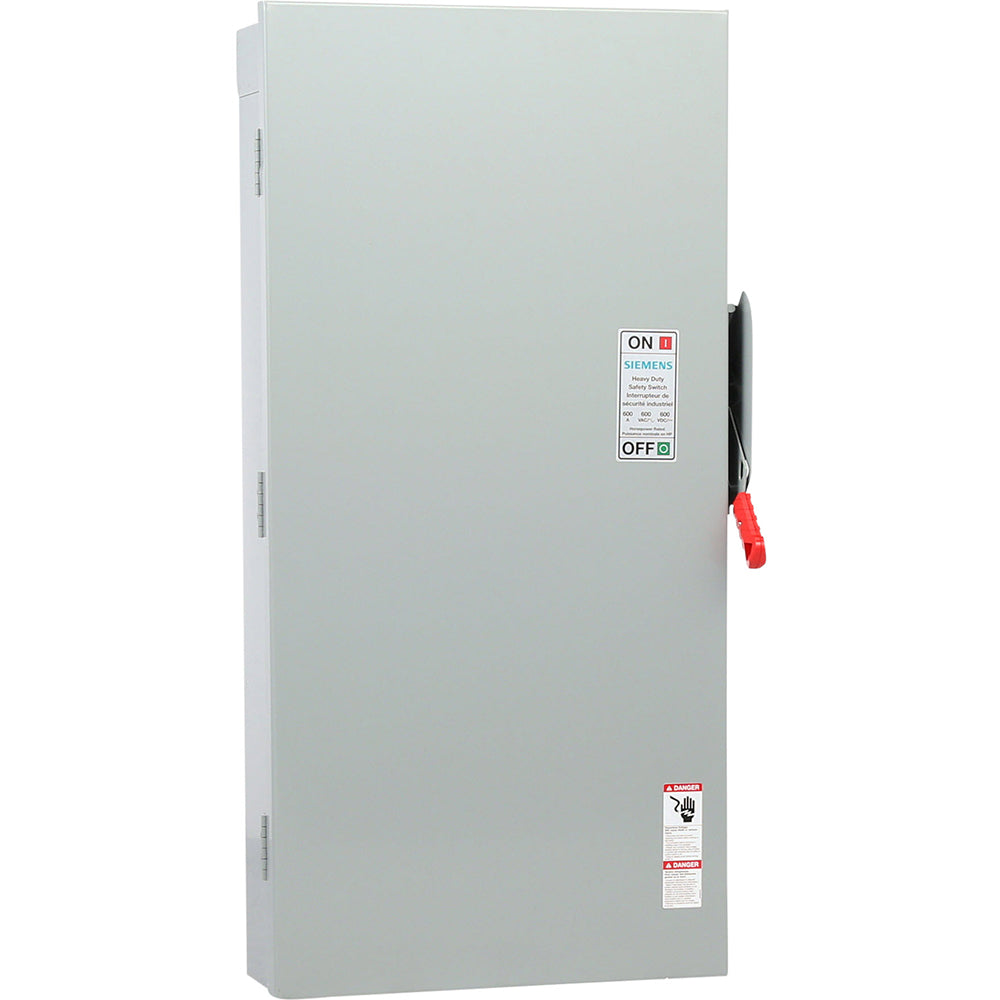

HF366A is a Siemens 600 Amp, 600 Volt, 3-Pole fusible safety switch designed for indoor use with a NEMA 1 enclosure.This heavy-duty switch features a quick-make, quick-break operating mechanism with visible blade double-break contacts, providing reliable and safe power disconnection. It is UL98 and CSA certified, rated for 200kA interrupt capacity at 600V, and suitable for 3-phase applications. The compact, lightweight design allows for easier installation in tight spaces.
- Key Specifications
- Amperage: 600 Amp
- Voltage: 600 Volt
- Poles: 3
- Mounting Type: Surface Mount
- Interrupt Rating: 200kA @ 600V
- Enclosure: NEMA 1 (Indoor)
- Trip Unit: Fusible
- Certifications: UL98, CSA
- Series/Frame: Heavy Duty
- Frequency: 60 Hz
Specifications
- Part Number: HF366A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : HED
Product Data
- UPC : 887621872595
- GTIN : 00887621872595
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 45.276 inch
- Weight : 97.982
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
