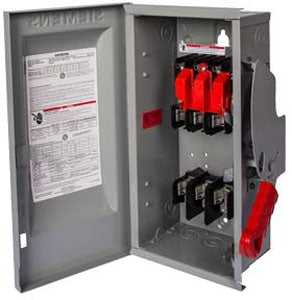

HF365NR - Siemens 400A 600V 3P Fusible NEMA 3R VBII Series Disconnect Switch

HF365NR

HF365NR is a Siemens heavy-duty 3-pole fusible disconnect switch rated for 400 amps and 600 volts with a NEMA 3R enclosure.HF365NR features a Type VBII series frame designed for industrial and commercial applications. It offers a 200kA interrupt rating at 600V, quick-make and break switching action, visible blade design, and highly visible ON/OFF indication. The switch is UL listed, meets UL98 and UL50 standards, and is suitable for use as service entrance equipment. It includes front removable lugs convertible to copper or compression type and a defeatable dual cover interlock.

Key Specifications
• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Surface mount
• Interrupt Rating: 200kA at 600V AC
• Series/Frame: VBII Heavy Duty
• Trip Unit: Fusible
• Enclosure Rating: NEMA 3R (outdoor rated)
• Certifications: UL Listed (UL98, UL50)
• Visible blade design with ON/OFF indication
• Quick-make and break switching action
• Suitable for service entrance use

At Essential Part(more...)

Specifications

• Part Number: HF365NR
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : PGP

Product Data

• UPC : 783643151703
• Country of Origin : Mexico
• Dimensions : 32.283 x 61.811 x 11.811
• Weight : 141.493 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
