Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF365N

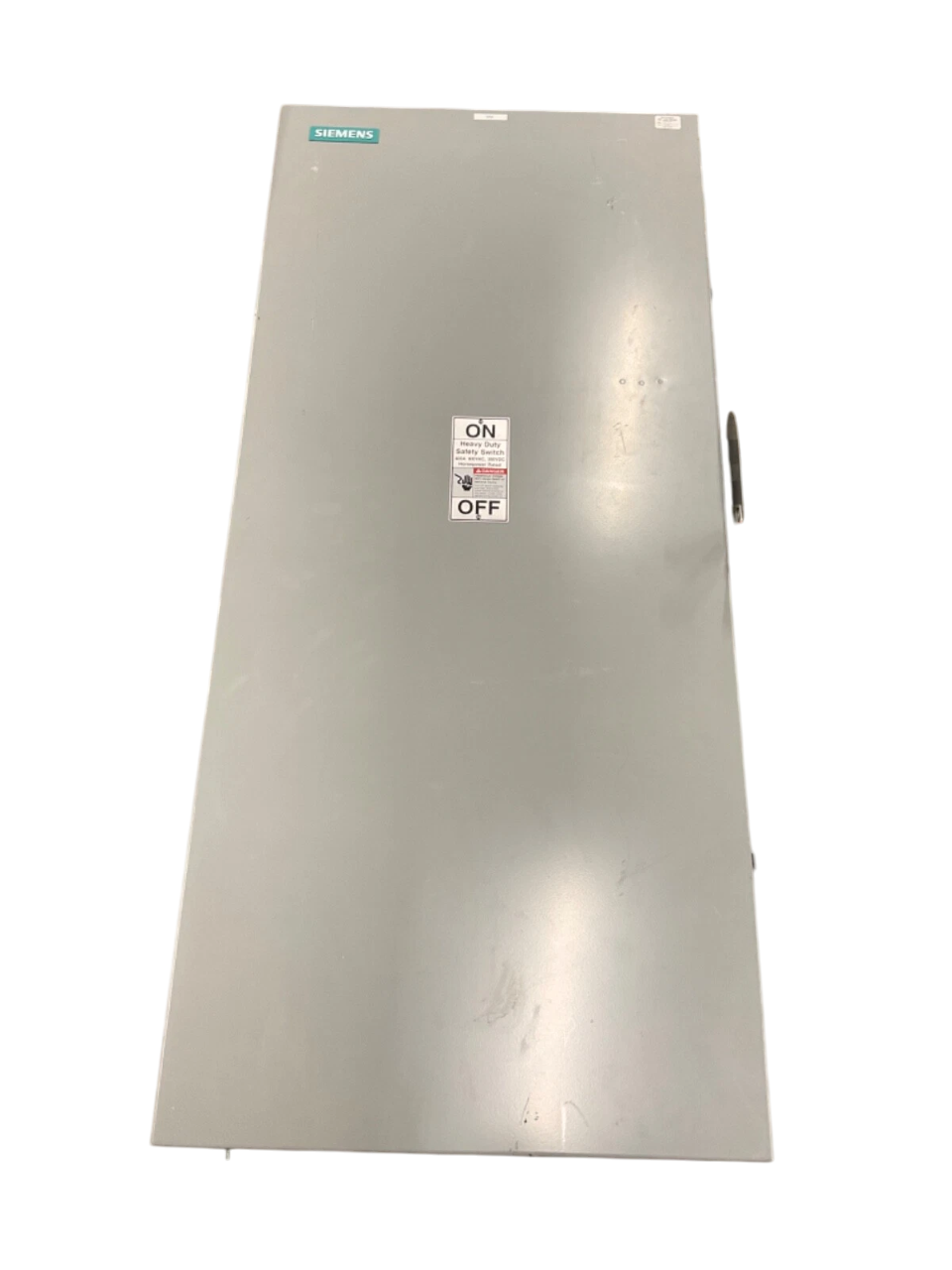

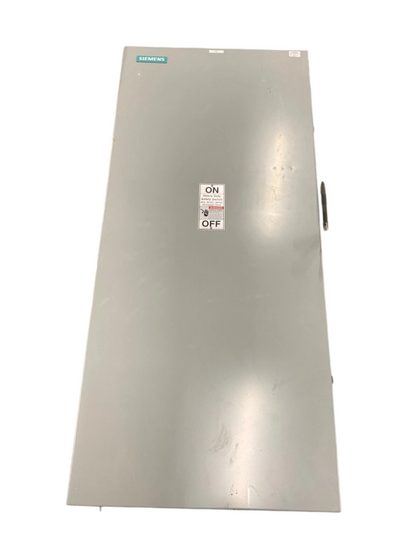

HF365N - Siemens Heavy Duty Fusible Safety Switch, Type VB II, rated 400 Amps maximum, 600V AC, 3 pole, NEMA 1 indoor enclosure.This Siemens HF365N is a heavy duty safety switch designed for reliable circuit protection and service entrance applications. It features fusible design with Class H/K fuses rated for 10kA interrupt, or up to 200kA with Class R/J/T fuses and proper kits. Suitable for 600V AC maximum, 250V DC maximum, with horsepower ratings for Design E motors including 75 HP at 240V 3-phase, 150 HP at 480V, and 250 HP at 600V 3-phase.
- Part Number: HF365N
- Manufacturer: Siemens
- Amperage: 400A Maximum
- Voltage: 600V AC / 250V DC Maximum
- Poles: 3
- Phases: 3
- Wires: 4
- Type: Fusible Heavy Duty Safety Switch
- Enclosure: NEMA Type 1 Indoor
- Mounting: Surface
- Series: Type VB II
- Interrupt Rating: 10kA (Class H/K), 200kA (Class R/J/T)
- Suitable for Service Equipment
Specifications
- Part Number: HF365N
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : PGP
Product Data
- UPC : 783643151123
- Country of Origin : Mexico
- Dimensions : 30.709 x 60.63 x 11.811
- Weight : 139.685 lb
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
