Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF365A

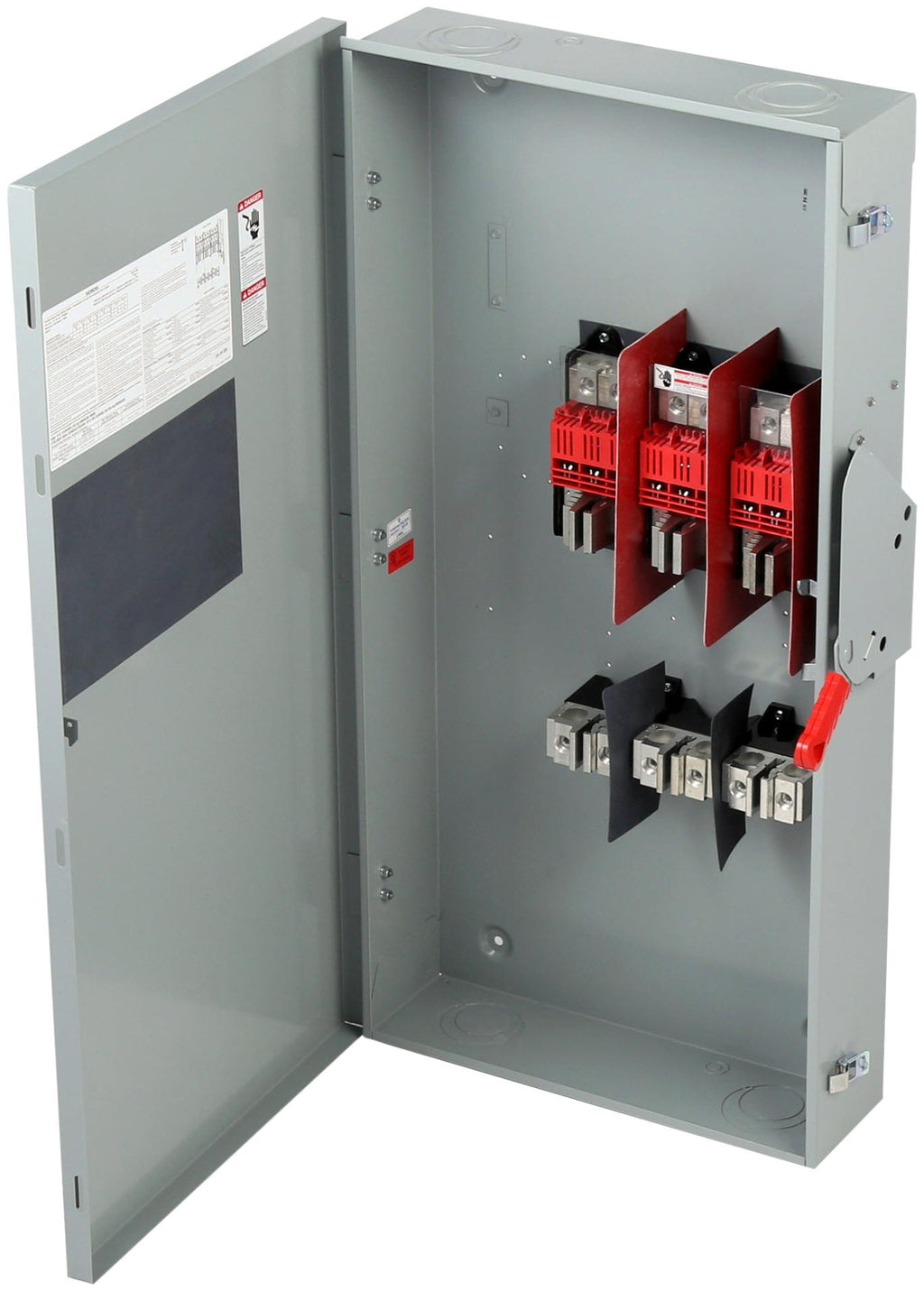

HF365A - Siemens Heavy Duty Safety Switch, fusible type, 3-pole, rated for 400A at 600VAC in NEMA 1 enclosure.This Siemens Type VBII heavy duty safety switch features quick-make quick-break operation, visible blades, and accepts Class R fuses for 200kA interrupt rating at 600V. Surface mount design with steel construction suits indoor applications, providing reliable circuit protection for 3-phase systems.
- Part Number: HF365A
- Manufacturer: Siemens
- Series: VBII
- Type: HF
- Amperage Rating: 400A
- Voltage Rating: 600VAC
- Poles: 3
- Phase: 3
- Wires: 3
- Interrupt Rating: 200kA@600V (Class R fuses)
- Mounting: Surface
- Enclosure: NEMA 1
- Material: Steel
- Approval: CSA
Specifications
- Part Number: HF365A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : PGP
Product Data
- UPC : 887621872519
- GTIN : 00887621872519
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 45.276 inch
- Weight : 92.984 lb
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
