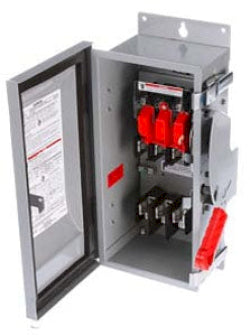

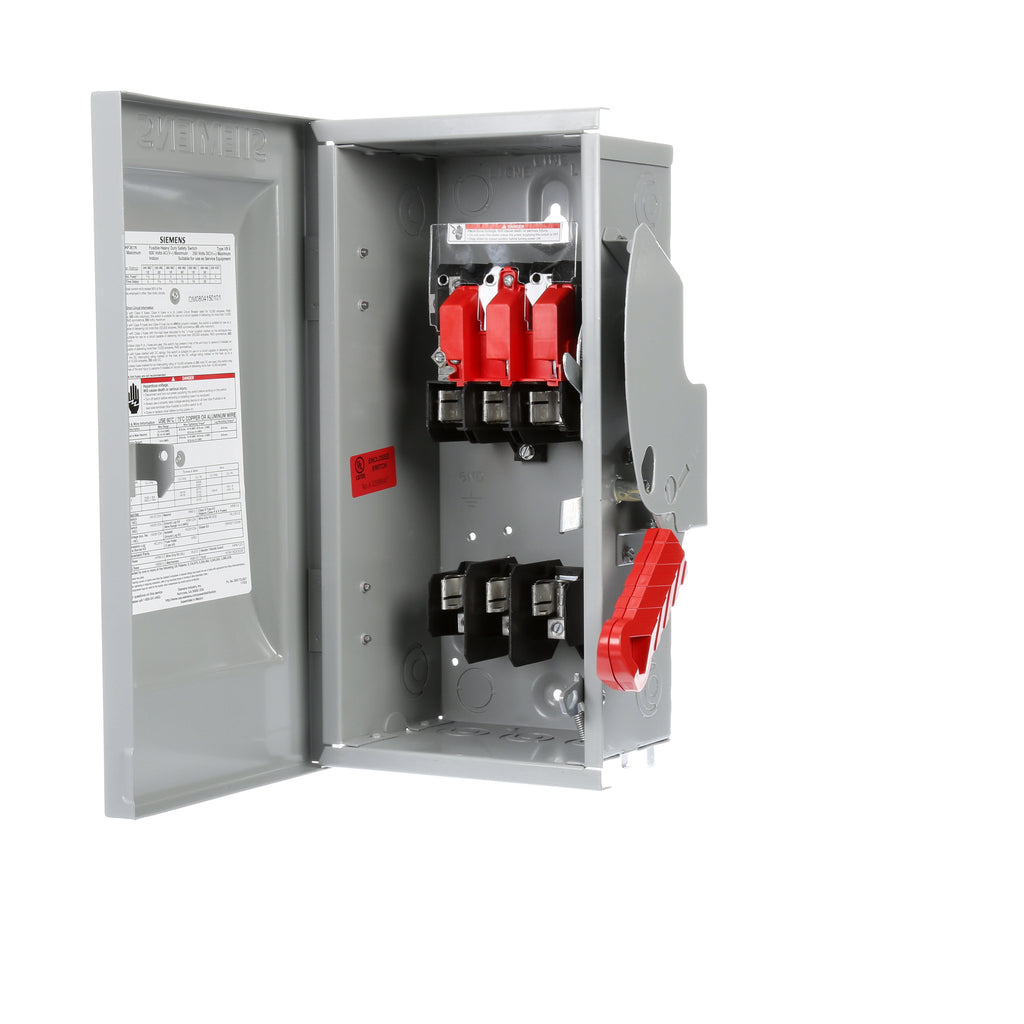

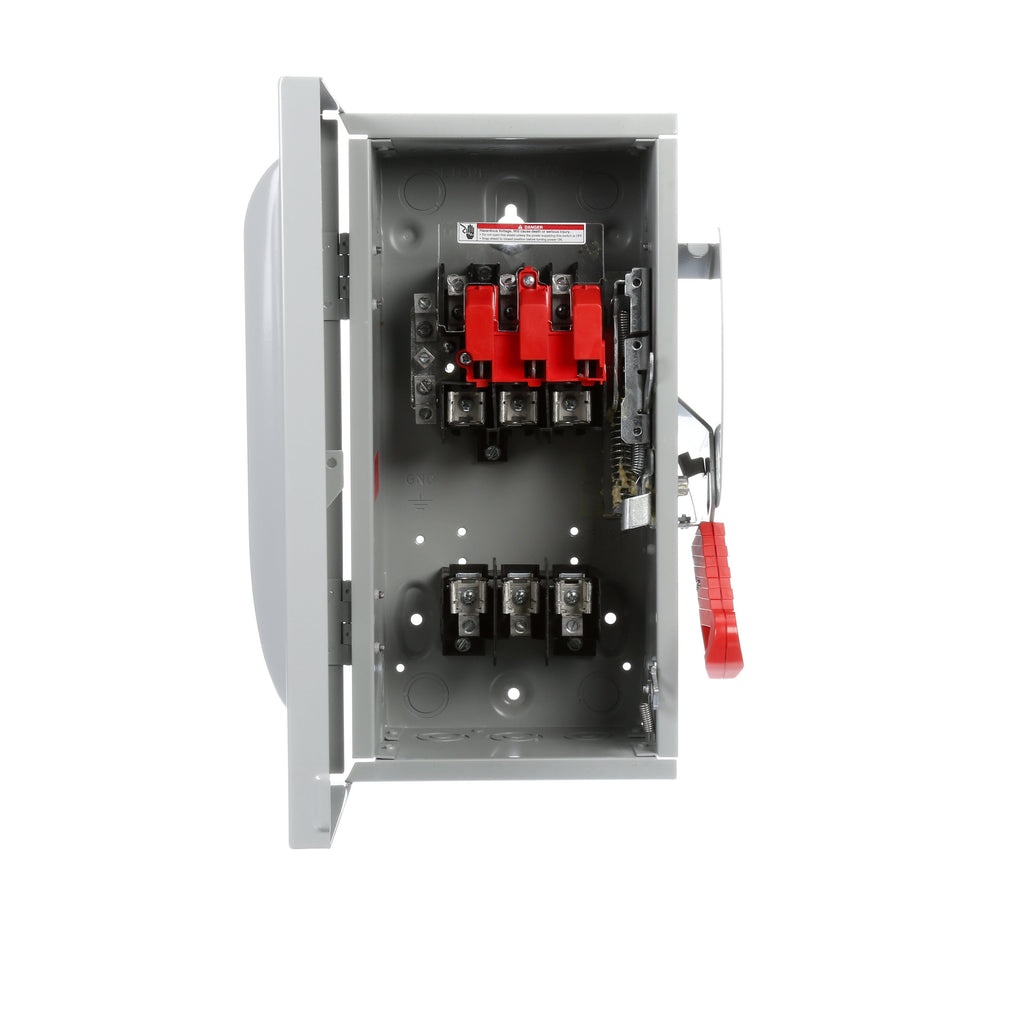

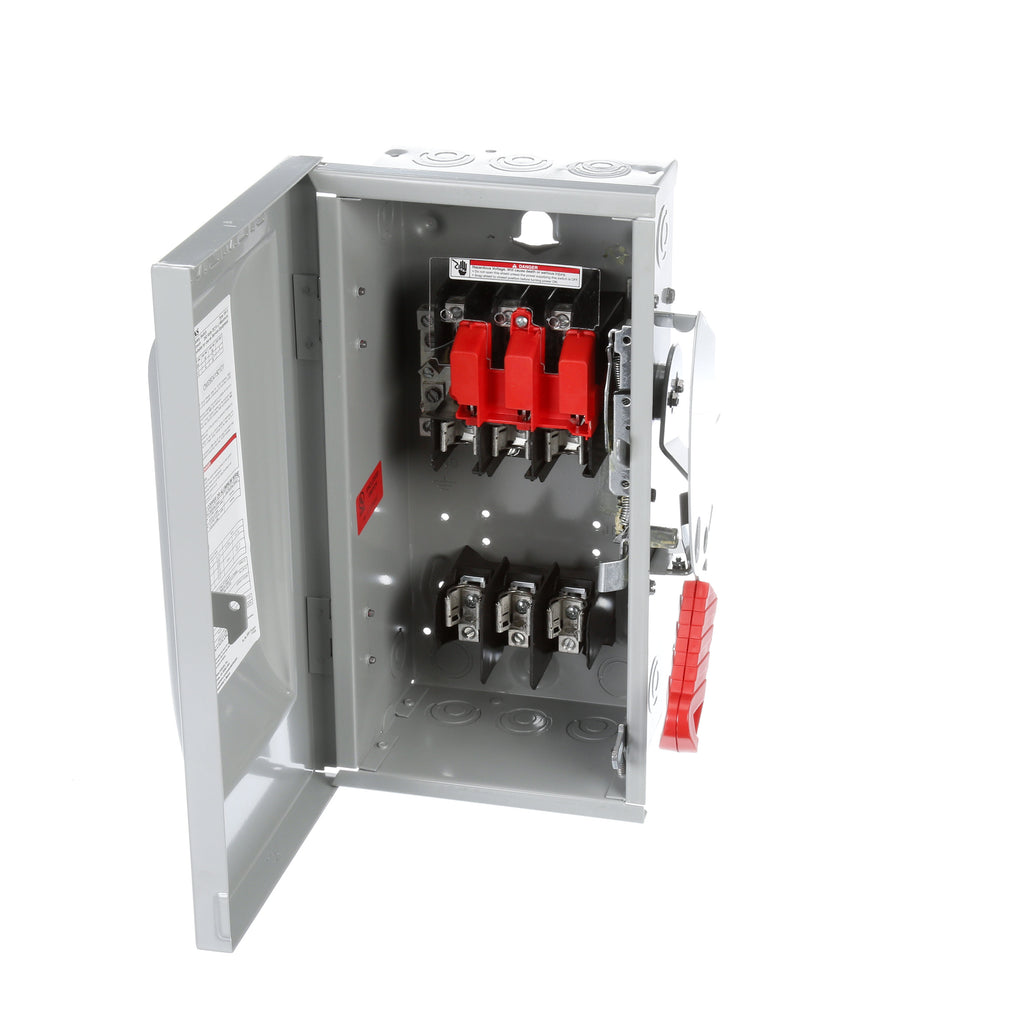

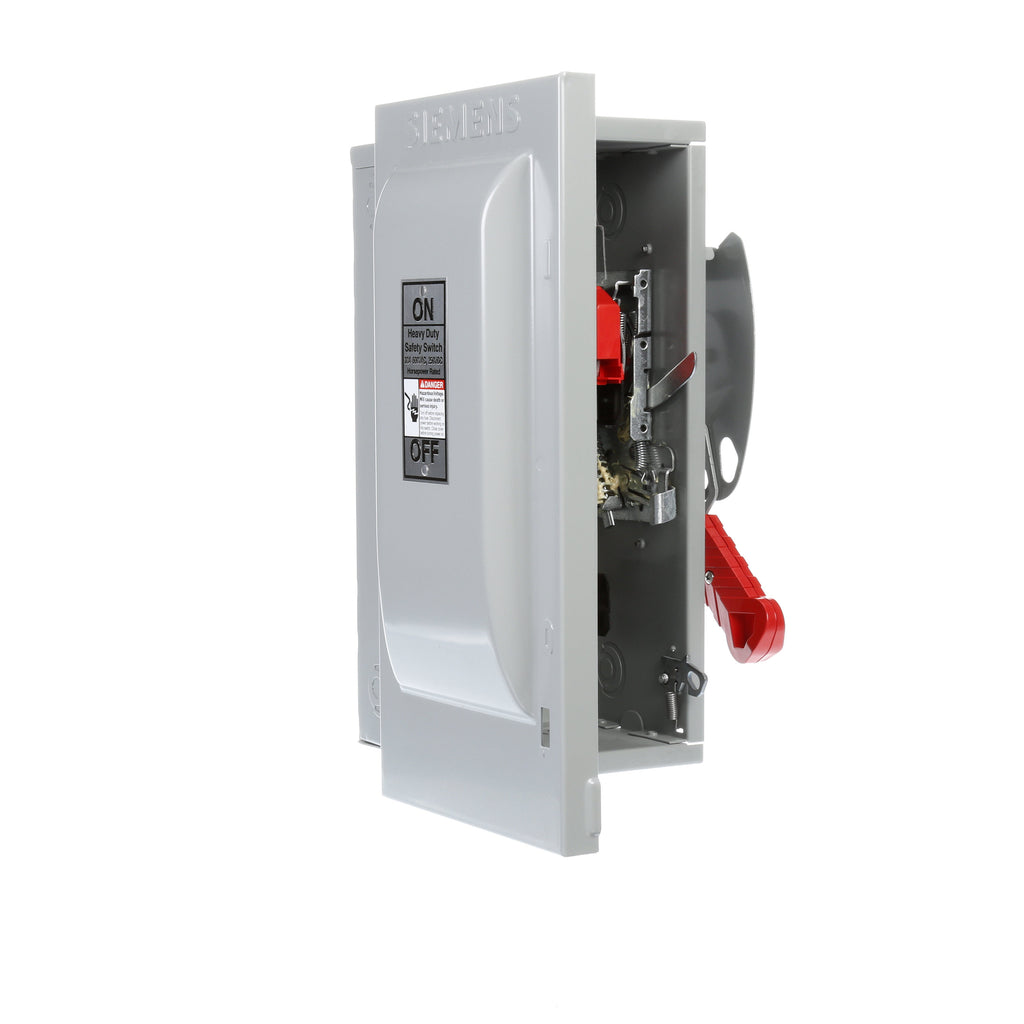

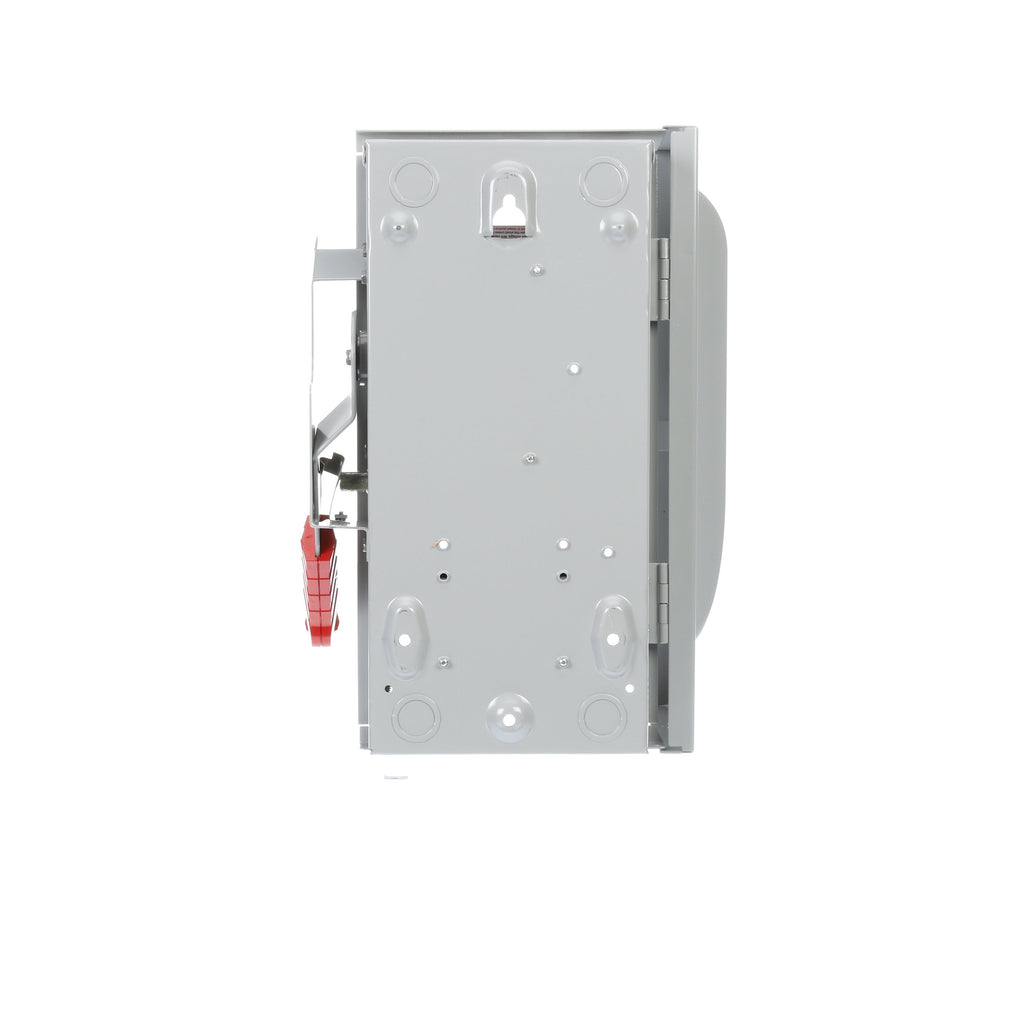

HF361N - Siemens 30 Amp 600 Volt 3-Pole Fusible Heavy Duty Safety Switch NEMA 1 Surface Mount

HF361N

HF361N is a Siemens heavy duty fusible safety switch designed for low voltage applications with a 30 amp rating.

This Type VBII enclosed switch features a 3-pole, 4-wire configuration rated for 600 VAC and 250 VDC operation. It includes a 200 kA short circuit current rating, NEMA 1 steel enclosure, and surface mounting. The switch supports 7-1/2 hp motor load at 3-phase 60 Hz frequency and uses lug terminals. It meets UL98 and UL50 standards and is suitable for service entrance equipment with quick-make and break switching action and visible blade indication.

Key Specifications
• Amperage: 30 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Wires: 4 (includes neutral)
• Enclosure Type: NEMA 1, steel
• Mounting Type: Surface mount
• Interrupt Rating: 200 kA short circuit current rating
• Horsepower Rating: 7-1/2 hp at 3 phase
• Frequency: 60 Hz
• Terminal Type: Lug
• Standards: UL Listed, UL98, UL50, NEMA KS-1
• Operating Temperature: -29 to 85 degrees C

At Essential Parts

Specifications

• Part Number: HF361N
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : PAF

Product Data

• UPC : 783643151086
• GTIN : 00783643151086
• Country of Origin : Mexico
• Dimensions : 14.6 x 7.75 x 8.89 inch
• Weight : 13.001 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
