HDL36150AA - Square D PowerPact H 150A 600V 3-Pole Thermal Magnetic Circuit Breaker

HDL36150AA

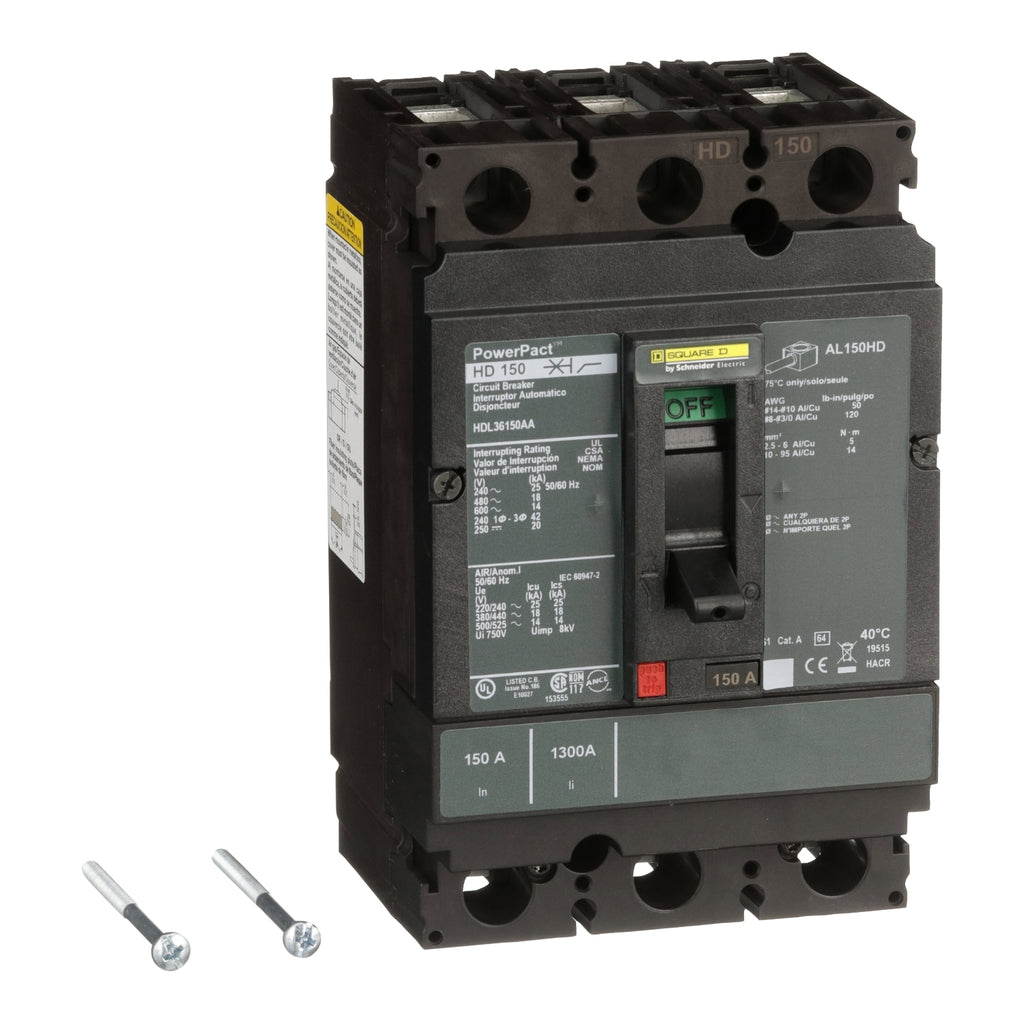

HDL36150AA is a Square D PowerPact H series molded case circuit breaker designed for 3-pole, 150 amp, 600 volt applications with thermal magnetic trip unit.

This circuit breaker features a thermal-magnetic trip unit with long-time and instantaneous protection functions, suitable for three-phase systems. It has a breaking capacity code D with interrupt ratings of 25 kA at 240 V AC, 18 kA at 480 V AC, and 14 kA at 600 V AC. The unit mount design includes line and load side lug terminals compatible with AWG 14 to AWG 3/0 aluminum or copper conductors. It is UL listed and certified to CSA, IEC, CE standards, and is suitable for reverse fed applications.

• Amperage: 150 A
• Voltage: 600 V AC
• Poles: 3
• Frame: PowerPact H
• Trip Unit: Thermal-magnetic
• Interrupt Rating: 25 kA @ 240 V AC, 18 kA @ 480 V AC, 14 kA @ 600 V AC
• Mounting Type: Unit mount lug
• Connection: Line and load lugs
• Breaking Capacity Code: D
• Continuous Current Rating: 80%
• Certifications: UL Listed, CSA, IEC, CE
• Dimensions (HxWxD): 6.4" x 4.12" x 4.36"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36150AA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901675686
• GTIN : 00785901675686
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
