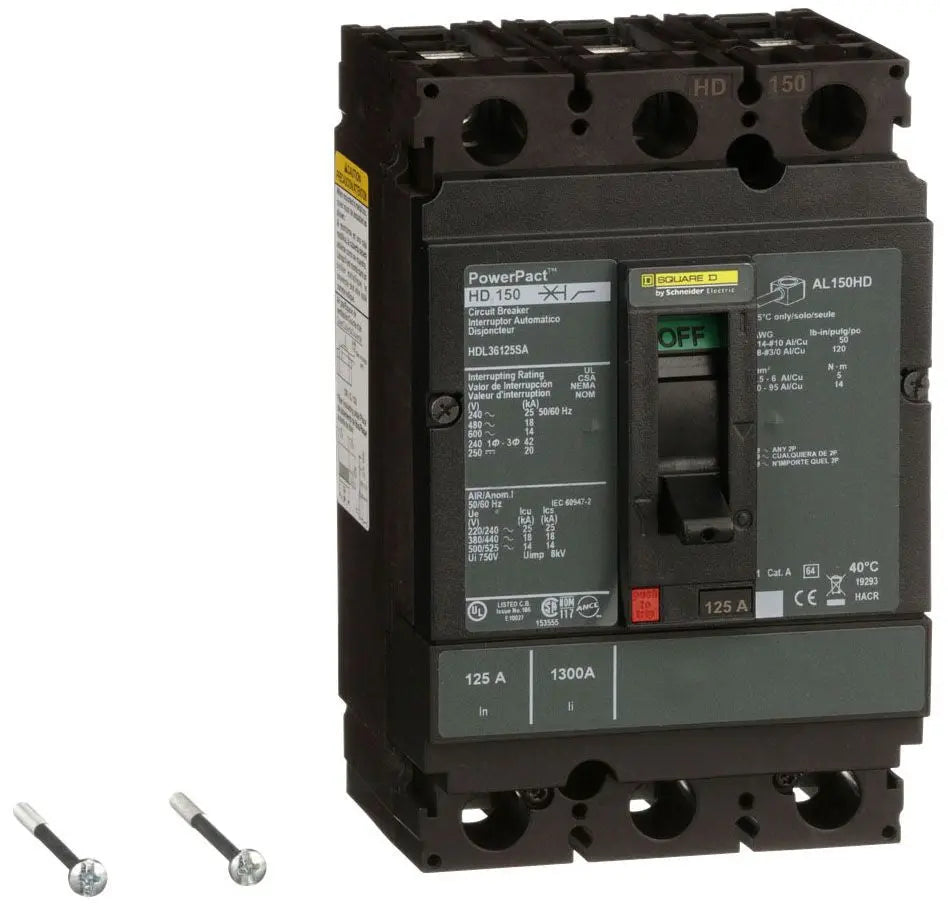

HDL36125SA - Square D PowerPact H Frame 125A 600VAC 3 Pole Molded Case Circuit Breaker

HDL36125SA

HDL36125SA is a Square D PowerPact H Frame 3 Pole molded case circuit breaker rated for 125A and 600VAC, designed for reliable thermal magnetic protection in industrial and commercial power distribution applications. This circuit breaker features a unit mounting type, feed-thru connection, and includes both long time and instantaneous trip functions. It is UL 489 listed and suitable for reverse fed applications, with line and load side lug terminals for flexible wiring options. The breaker is built to meet CE, CSA, UL, and RoHS standards, ensuring compliance and safety.

• Manufacturer: Square D
• Series/Frame: PowerPact H Frame
• Amperage: 125A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Unit
• Interrupt Rating: 18kAIC @ 480VAC
• Protection Type: Thermal Magnetic
• Connection Type: Feed-Thru
• Terminal Type: Line and Load Side Lug
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Certifications: UL 489, CSA, CE, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 110/130Vac shunt trip

Specifications

• Part Number: HDL36125SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901568483
• GTIN : 00785901568483
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.2
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
