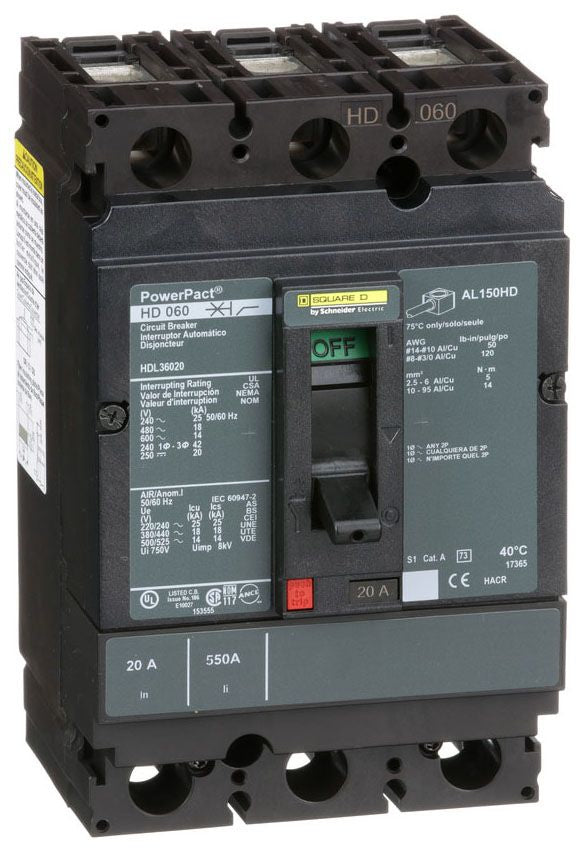

HDL36020AA - Square D 20 Amp 600 Volt 3-Pole H-Frame Molded Case Circuit Breaker

HDL36020AA

HDL36020AA is a 20 Amp, 600 Volt, 3-Pole molded case circuit breaker from Square D's Powerpact HDL series designed for industrial applications.This H-Frame circuit breaker features unit mount installation, thermal magnetic trip unit, and is UL Listed, CSA Certified, and IEC Rated. It provides overload and short circuit protection with a short circuit interrupt rating of 25kA at 240VAC, 18kA at 480VAC, and 14kA at 600VAC. The breaker supports line and load lug terminals and accommodates wire sizes from #14 to 3/0 AWG (Aluminum/Copper). It is HACR rated and suitable for use in industrial enclosures and switchboards.

Key Specifications
• Amperage: 20A
• Voltage Rating: 600VAC / 250VDC
• Number of Poles: 3
• Frame Type: H-Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 25kA@240VAC, 18kA@480VAC, 14kA@600VAC
• Trip Unit: Thermal Magnetic
• Terminal Type: Line and Load Lugs
• Wire Size Range: #14-3/0 AWG (Al/Cu)
• Certifications: UL Listed, CSA Certified, IEC Rated
• HACR Rated: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDL36020AA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 078590133368
• GTIN : 00785901333685
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
