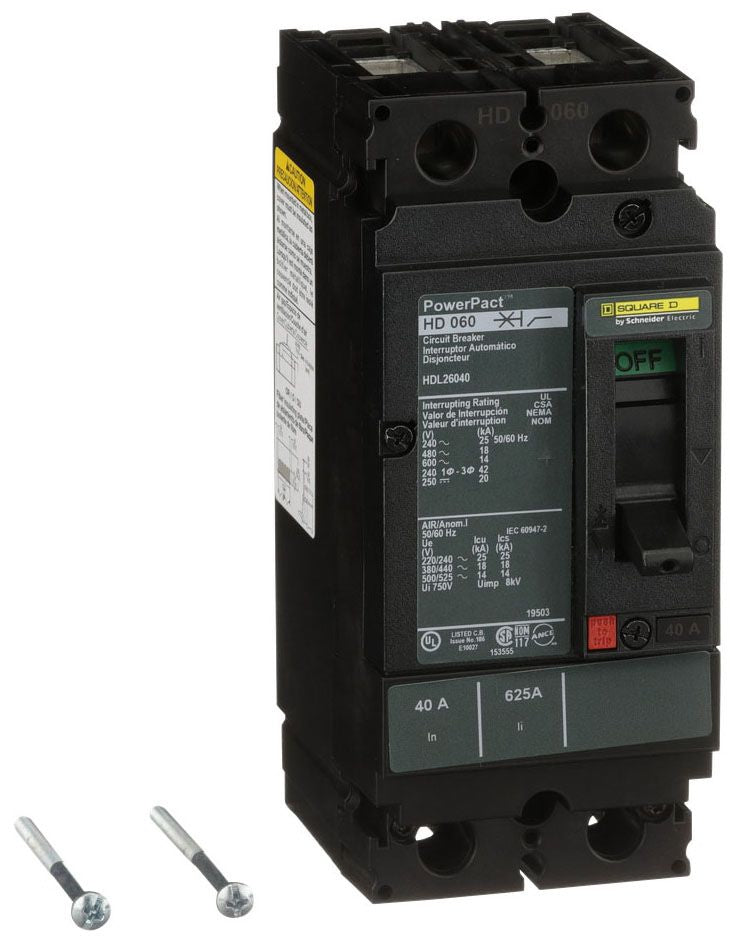

HDL26040 - Square D 40 Amp 600 Volt 2 Pole Thermal Magnetic Circuit Breaker, Unit Mount, PowerPact H Frame

HDL26040

HDL26040 is a 2 pole, 40 amp, 600 volt thermal magnetic molded case circuit breaker from Square D's PowerPact H frame series designed for unit mounting.This circuit breaker features a thermal magnetic trip unit with long-time and instantaneous functions, an interrupting rating of 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, and 20 kA at 250 VDC. It supports feed-thru connection type with line and load lug terminals and is UL, IEC, CSA, and CE certified.

Key Specifications
• Manufacturer: Square D
• Part Number: HDL26040
• Amperage: 40 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupting Rating: 25 kA @ 240 VAC, 18 kA @ 480 VAC, 14 kA @ 600 VAC, 20 kA @ 250 VDC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Series/Frame: PowerPact H (HDL)
• Connection Type: Feed-Thru (Line/Load Lugs)
• Certifications: UL, IEC, CSA, CE
• Dimensions: 2.74 in W x 4.36 in D x 6.4 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDL26040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable



Product Data

• UPC : 785901706533
• GTIN : 00785901706533
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.049
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
