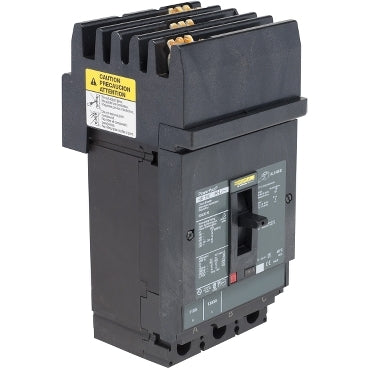

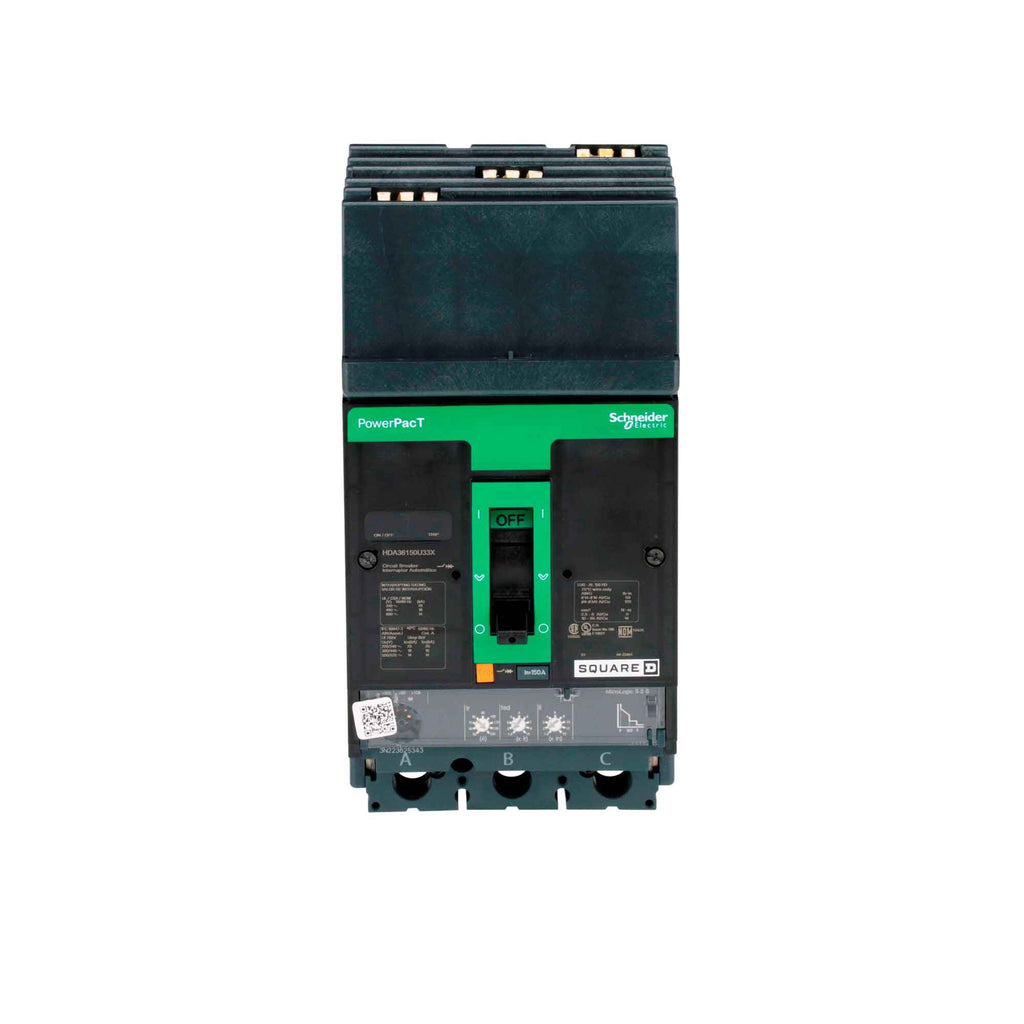

HDA36150U33X - Square D 150A 600V 3-Pole PowerPact H Circuit Breaker with Micrologic 3.2S Trip Unit

HDA36150U33X

HDA36150U33X is a 3-pole molded case circuit breaker from Square D's PowerPact H series, rated for 150 amps and 600 volts AC.This circuit breaker features a 14kA interrupt rating, I-Line plug-in mounting, and an electronic Micrologic 3.2S trip unit for precise protection.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupt Rating: 14 kA
• Mounting Type: I-Line plug-in
• Series/Frame: PowerPact H
• Trip Unit: Micrologic 3.2S electronic
• Trip Setting: 80% rated current
• Wire Size Range: 14-3/0 AWG
• Certifications: ABC (arc flash protection)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36150U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long Time, Short Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC
• Trip Type : MicroLogic 3.2 S

Product Data

• UPC : 785901944454
• GTIN : 00785901944454
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
