Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
HCP367HJ600

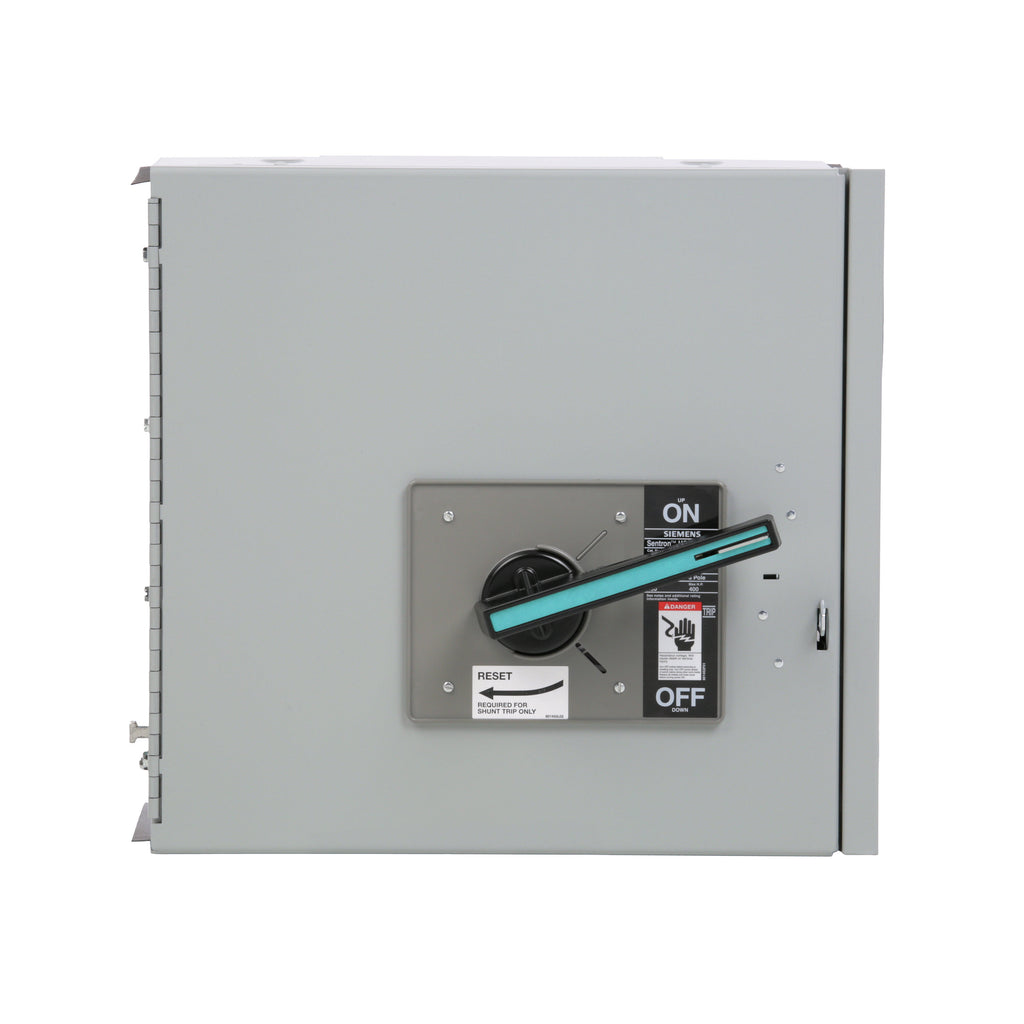

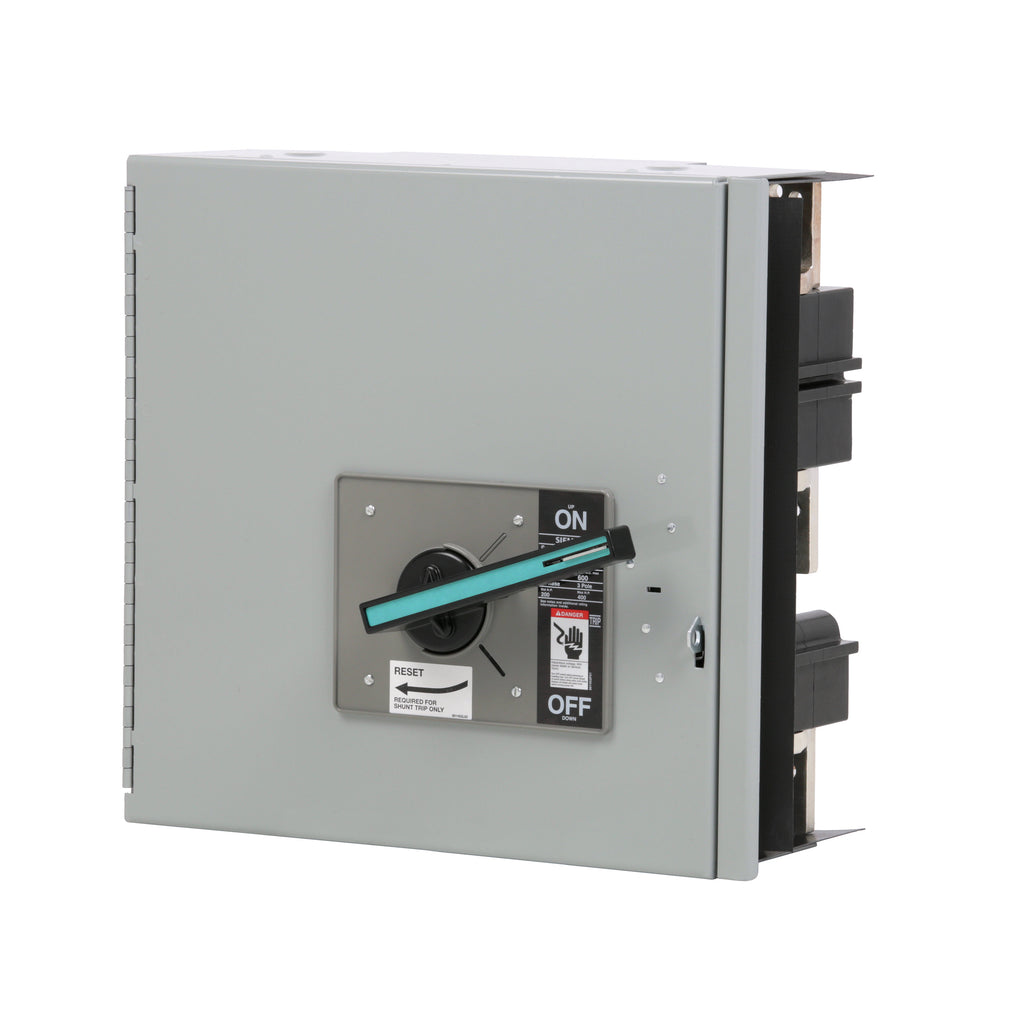

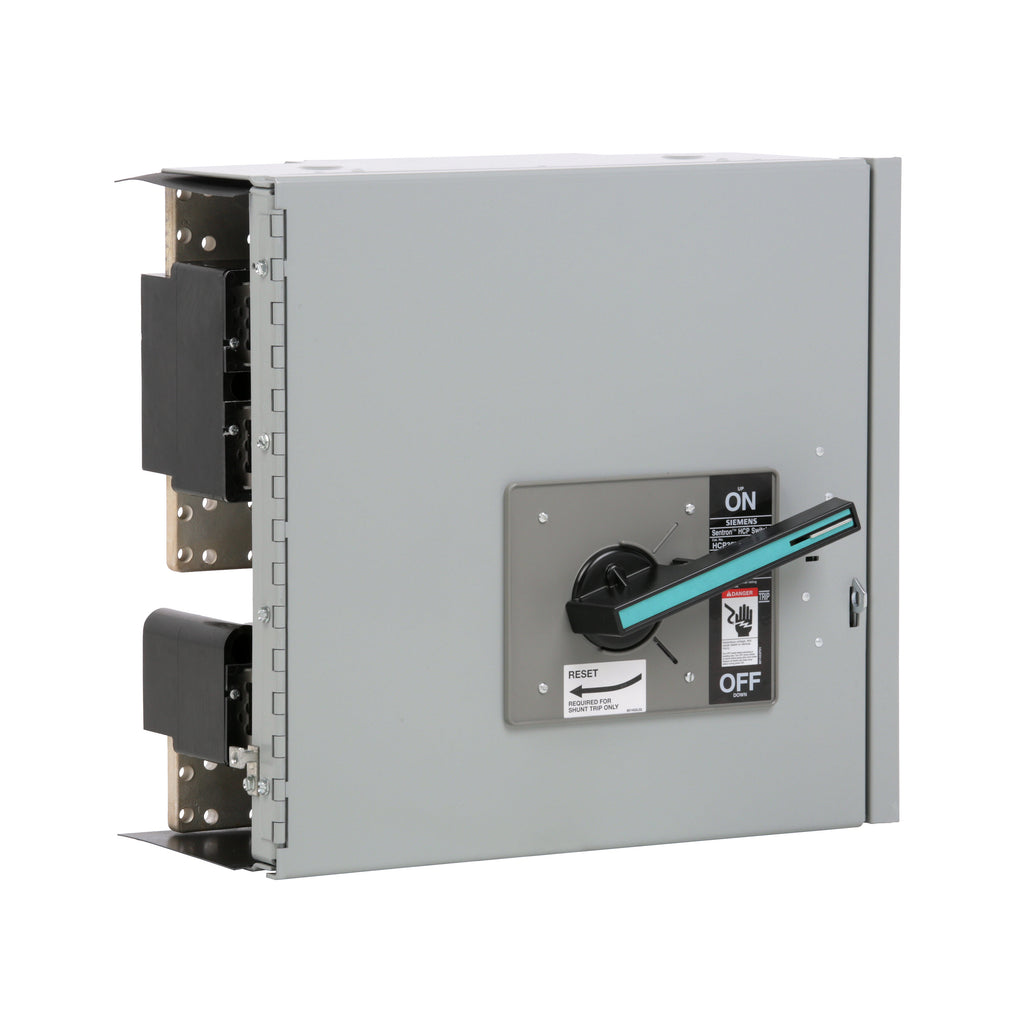

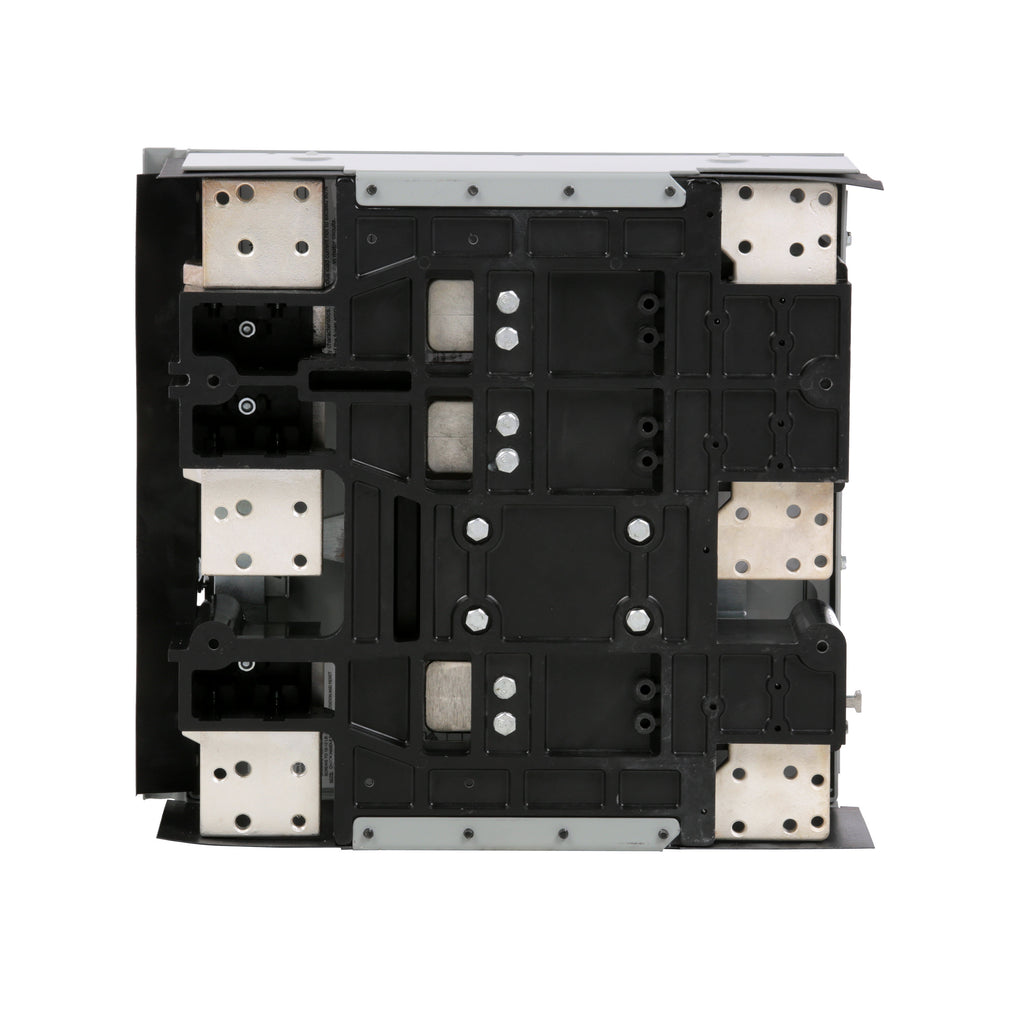

HCP367HJ600 is a Siemens 600 amp, 600 volt, 3-pole fused disconnect switch designed for horizontal mounting with Class J fuse provision.This Type HCP switch provides reliable power disconnection with a 600 ampere rating and 600 VAC voltage rating. It features a 3-pole configuration suitable for three-phase applications, horizontal mounting type, and is compatible with Class J fuses for enhanced circuit protection. The switch is designed for industrial and commercial use, supporting up to 200/400 horsepower motors. It meets industry standards for durability and safety.
- Amperage Rating: 600 A
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Horizontal
- Fuse Provision: Class J
- Series/Frame: Type HCP
- Interrupt Rating: Compatible with Class J fuses
- Frequency: 60 Hz
- Horsepower Rating: 200/400 hp
- Certifications: CSA Certified, UL Recognized
Specifications
- Part Number: HCP367HJ600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Sentron Series
- Type : HCP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : MHP
Product Data
- UPC : 783643308770
- GTIN : 00783643308770
- Country of Origin : Mexico
- Weight : 80.001
