Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
HCP367V

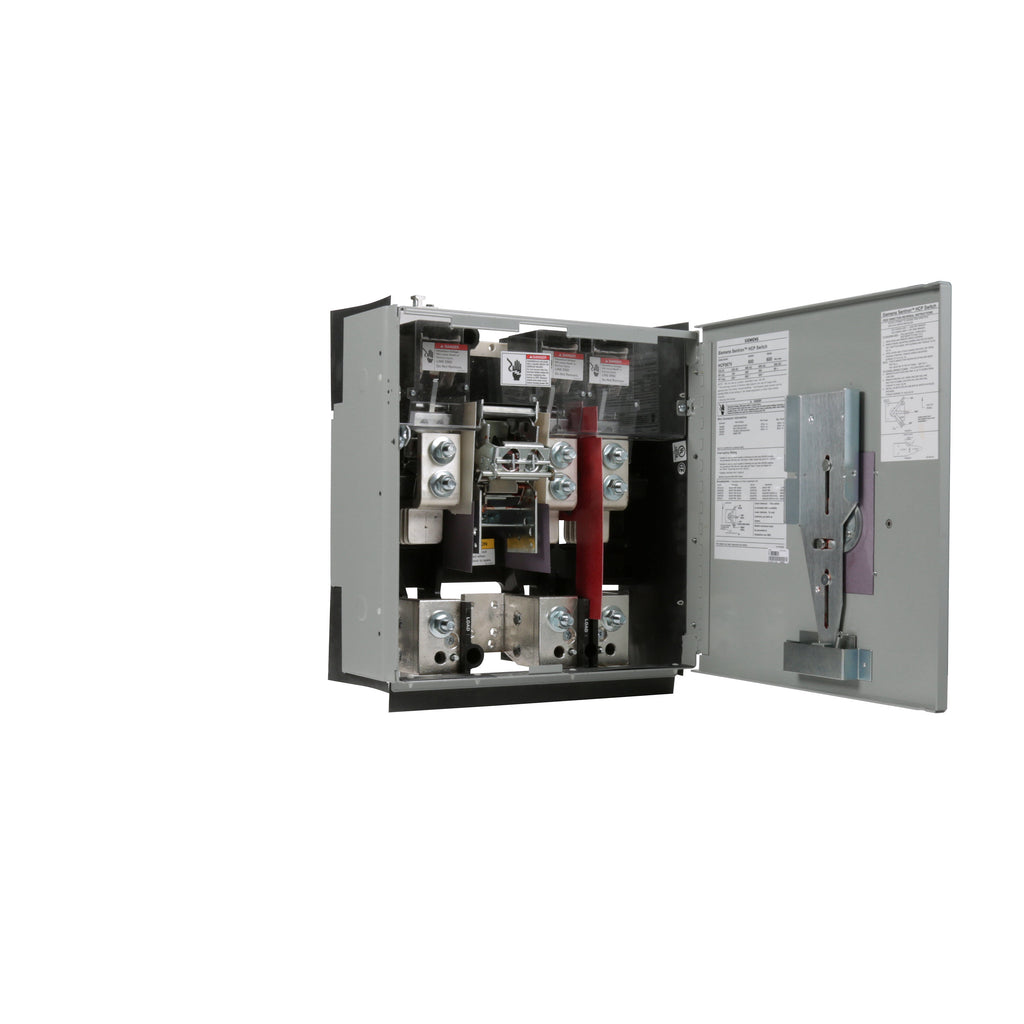

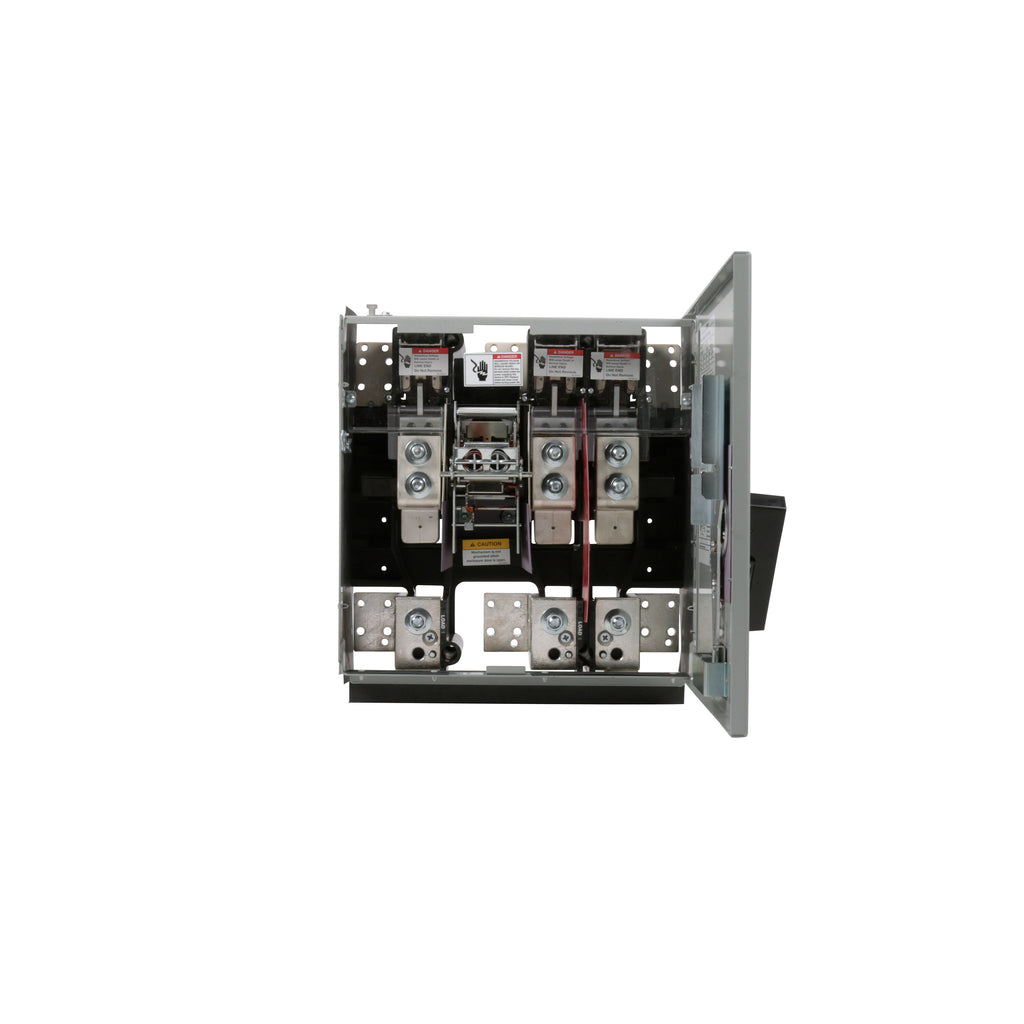

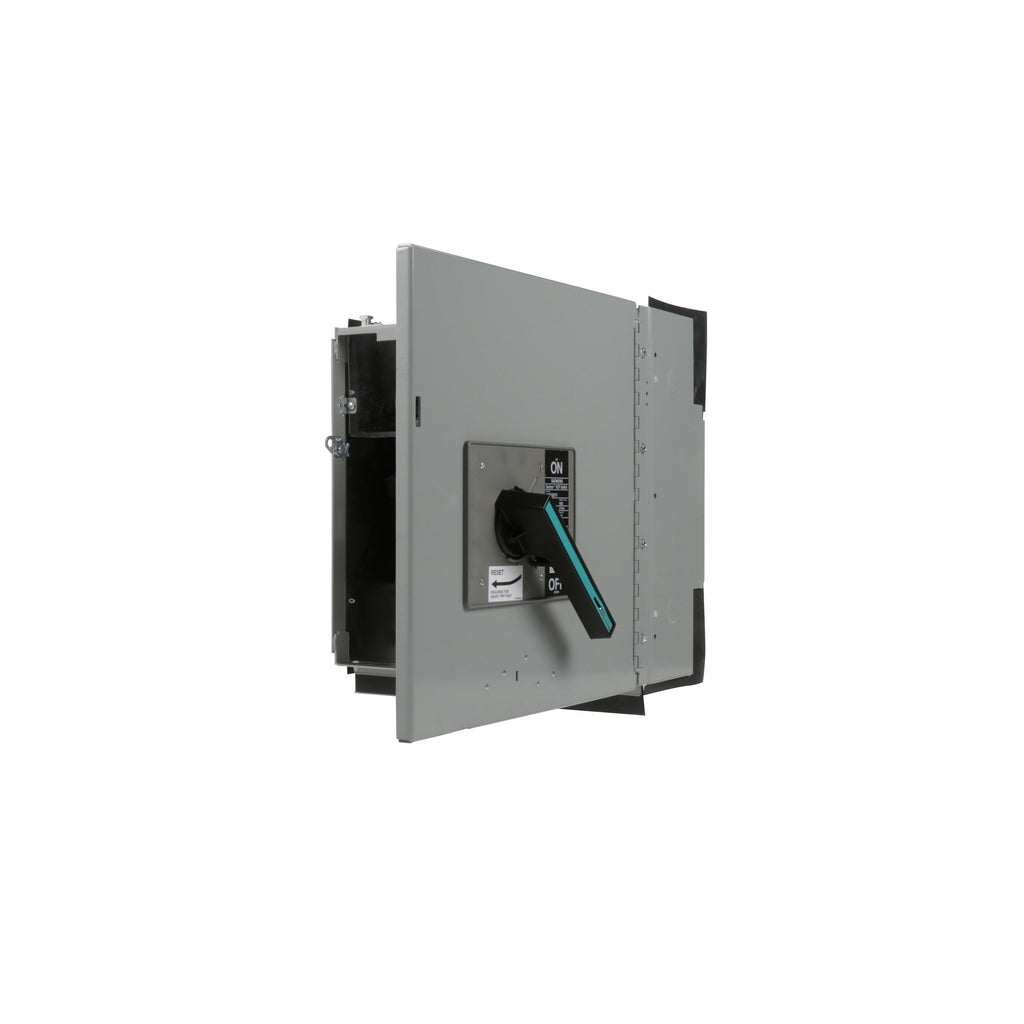

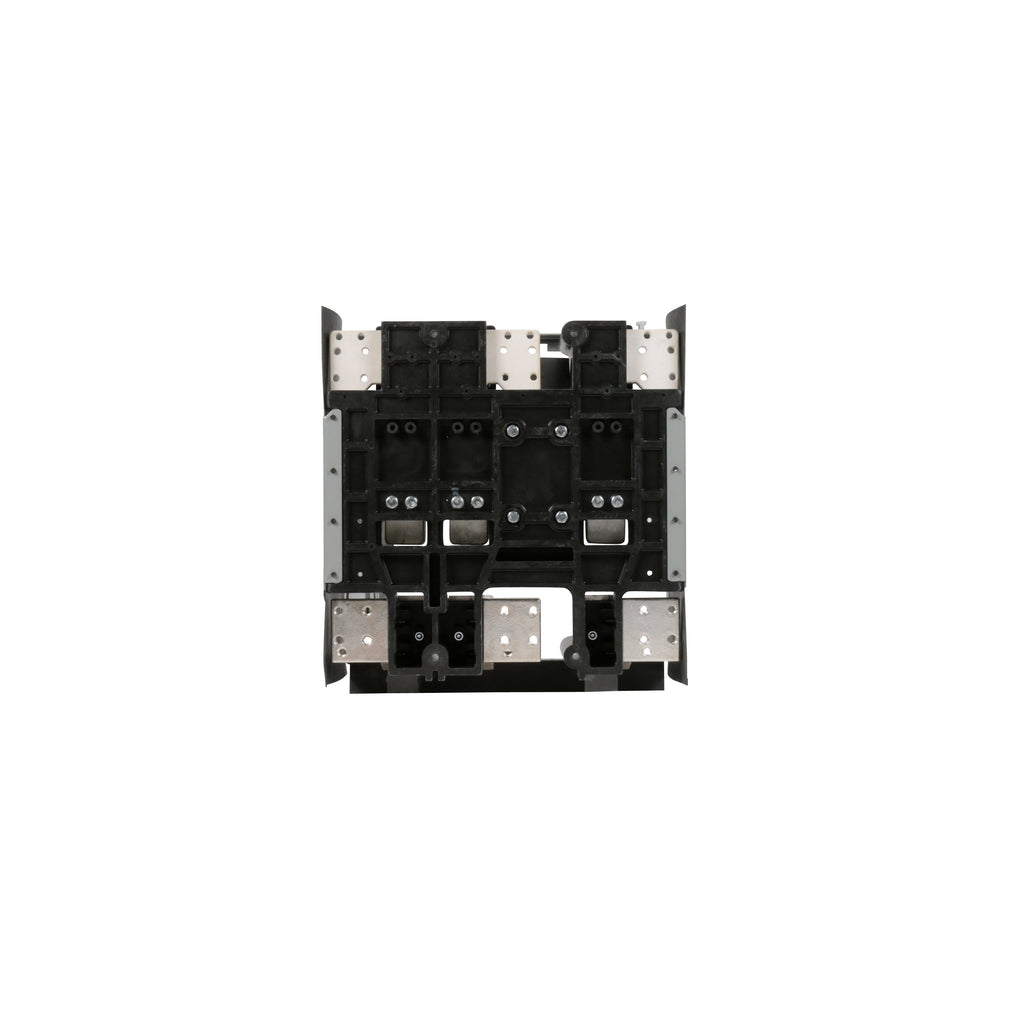

HCP367V is a Siemens 800 Amp, 600 Volt, 3-pole vertical mount fusible disconnect switch designed for industrial and commercial switchboard applications.HCP367V features a Type HCP construction with L Class fuse provision, suitable for high safety and reliability requirements. It supports 3-phase operation and is rated for 250 to 500 horsepower. The switch is designed for panel mounting with a vertical orientation and has a short circuit current rating of 200kA at 480V.
- Manufacturer: Siemens
- Part Number: HCP367V
- Amperage Rating: 800A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Mounting Type: Vertical Panel Mount
- Fuse Provision: L Class Fuses
- Short Circuit Current Rating: 200kA at 480V
- Type: HCP Disconnect Switch
- Phase: 3-Phase
- Horsepower Rating: 250 to 500 HP
Specifications
- Part Number: HCP367V
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Sentron Series
- Type : HCP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : MHP
Product Data
- UPC : 783643006805
- GTIN : 00783643006805
- Country of Origin : Mexico
- Weight : 75.502
