2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
HCP367HJ400

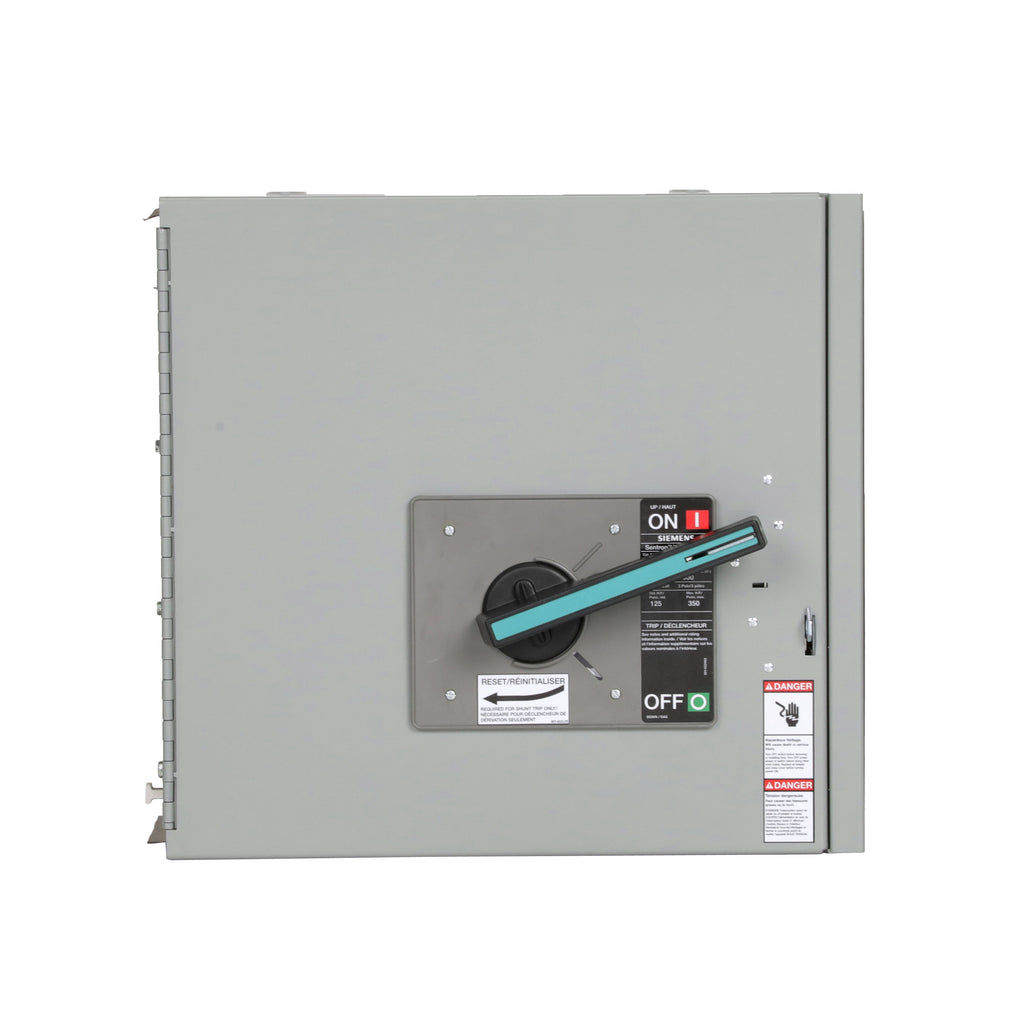

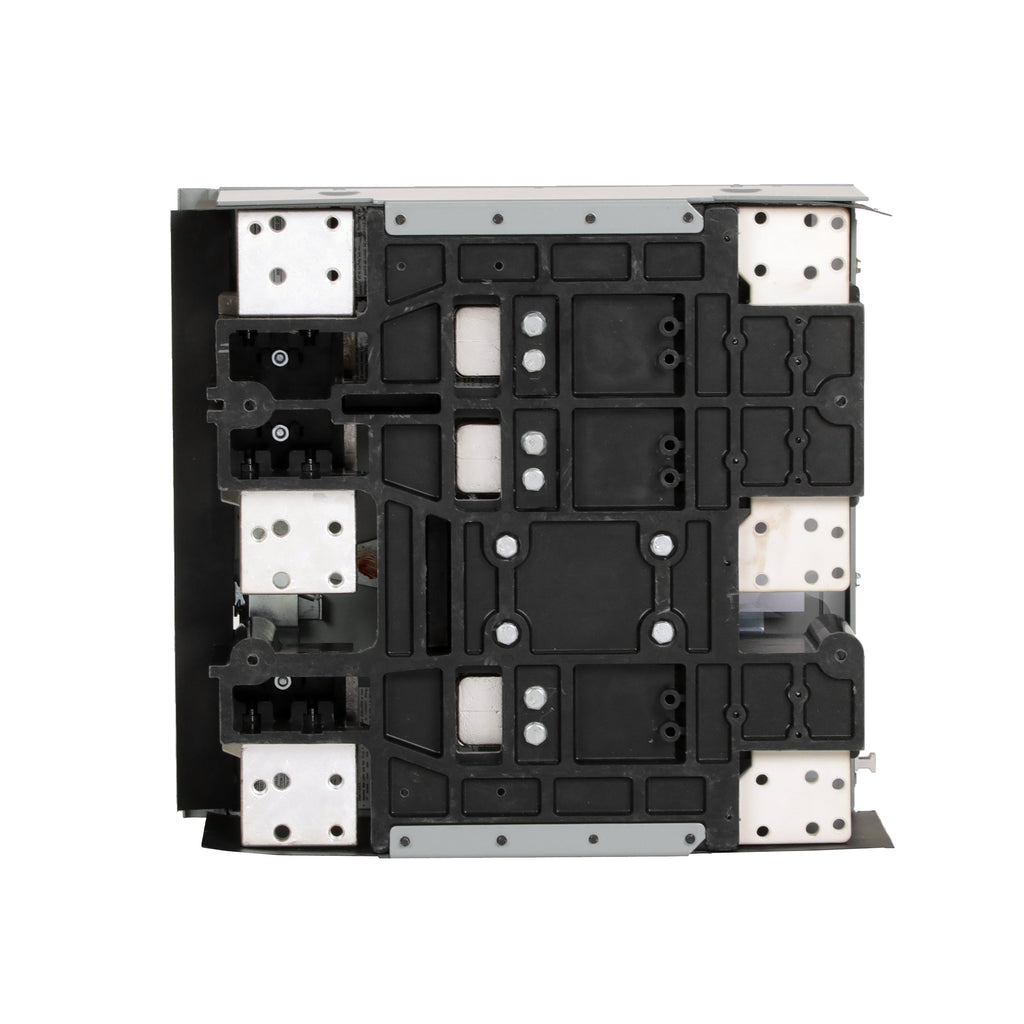

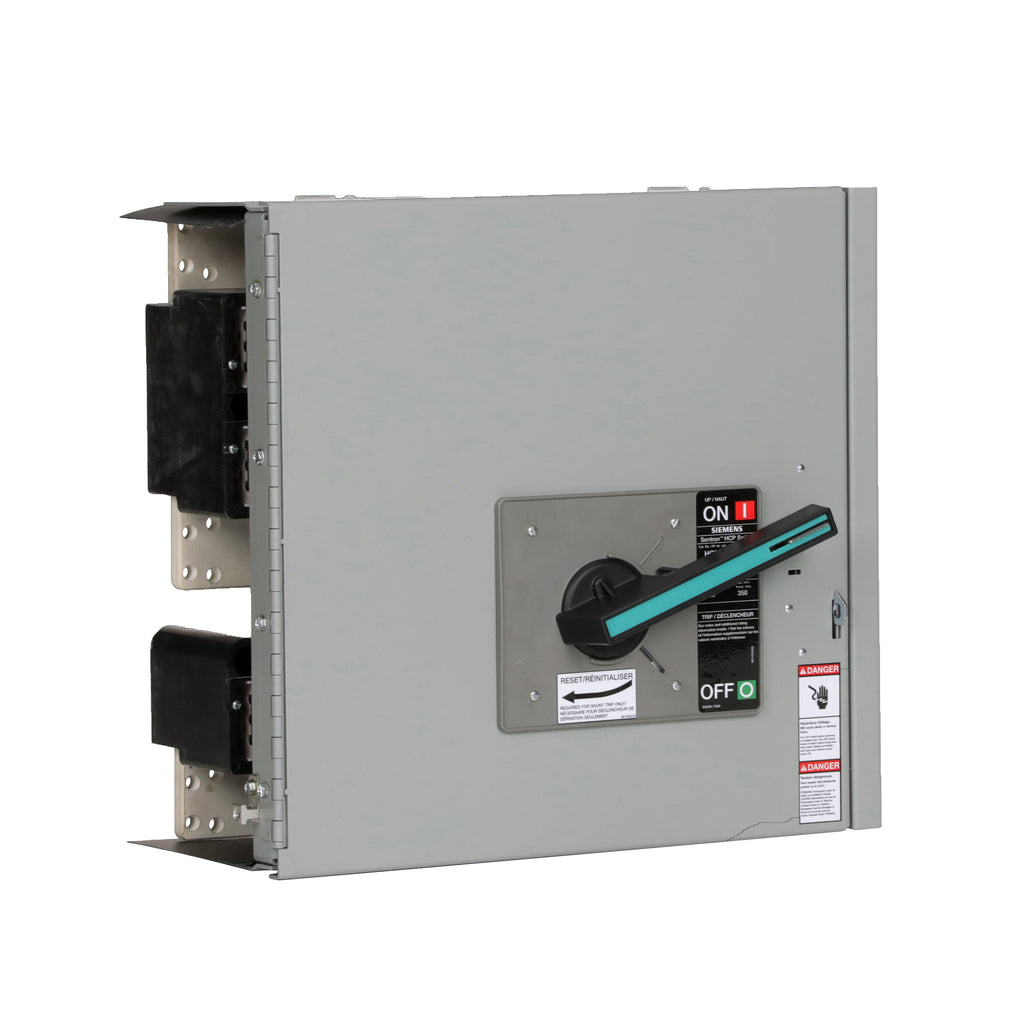

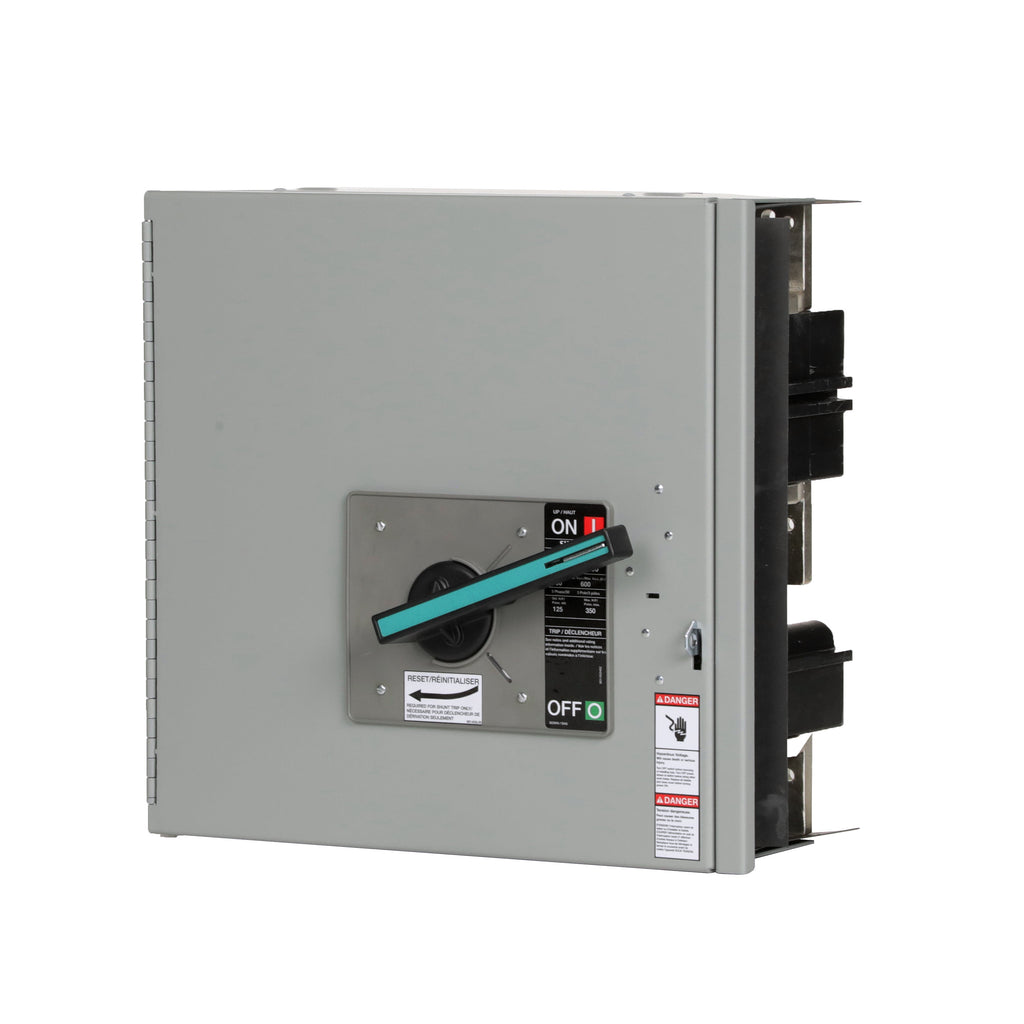

HCP367HJ400 is a Siemens 400 Amp, 600 Volt, 3-pole horizontal mount fusible switch designed for low voltage disconnect applications.This Siemens HCP series switch features a rotary actuator and is equipped with Class J fuse provision for enhanced circuit protection. It is suitable for switchboard units and panel mounting with a NEMA 1 enclosure rating. The switch supports 3-phase operation and is rated for 60 Hz frequency.
- Key Specifications
- Amperage: 400 Amp
- Voltage Rating: 600 Volt
- Poles: 3
- Mounting Type: Horizontal Mount
- Fuse Provision: Class J
- Enclosure Type: NEMA 1
- Frequency: 60 Hz
- Actuator Type: Rotary
- Part Number: HCP367HJ400
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Sentron Series
- Type : HCP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : MHP
- UPC : 783643308756
- GTIN : 00783643308756
- Country of Origin : Mexico
- Weight : 80.001
