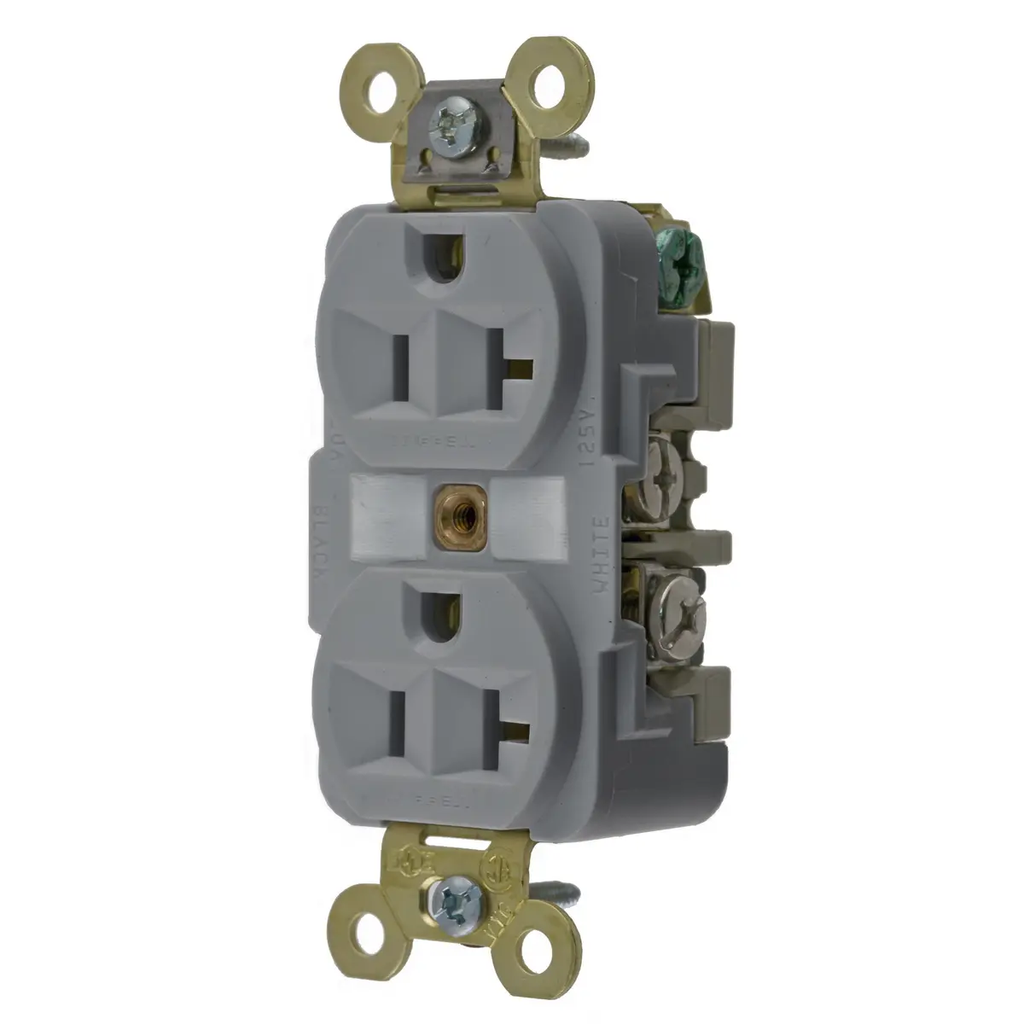

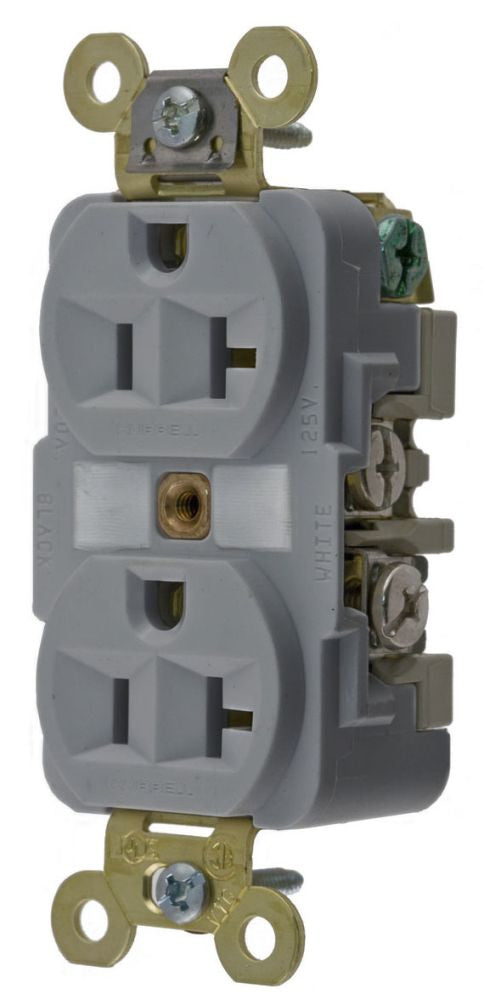

HBL5362GY is a Hubbell Extra Heavy Duty MAX Specification Grade Duplex Receptacle designed for industrial and commercial applications requiring reliable power connections. This receptacle features a gray nylon face and PBT base, with a deep body design for added durability and circuit identification. The one-piece brass integral ground strap and finder groove face ensure secure installation and easy identification. Suitable for back and side wiring, it supports conductors from #14 AWG to #10 AWG and is rated for indoor dry environments unless protected by additional means. This Hubbell HBL5362GY duplex receptacle is built to meet NEMA 5-20R standards, offering a robust solution for demanding electrical installations. The receptacle is RoHS compliant and features a maximum continuous operating temperature of 75°C and a minimum of -40°C without impact. Its extra heavy duty construction ensures long-lasting performance in industrial settings.

• Part Number: HBL5362GY
• Manufacturer: Hubbell
• Amperage: 20 A
• Voltage: 125 VAC
• Poles: 2-Pole
• Wires: 3-Wire
• Mounting Type: Back and Side Wired Screw Terminals
• Series/Frame: Extra Heavy Duty MAX Specification Grade
• Interrupt Rating: 2,000V minimum dielectric strength
• Wire Size: #14 AWG to #10 AWG
• Operating Temperature: -40°C to 75°C
• Certifications: RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL5362GY
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Voltage : 125 125
• Amperage : 20
• Poles : 2
• Wire : 3

Product Data

• UPC : 783585435268
• GTIN : 783585435268
• Dimensions : 3.28 in L x 1.65 in W x 1.19 in H 3.28 x 1.65 x 1.19 in
• Weight : 0.3
