Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Locking Devices
- Series
- HBL
- Rated current
- 20
- Voltage
- 125 125V
- Poles
- 2
- UPC
- 783585013916
- GTIN
- 00783585013916
- Dimensions
- 3.28 in H x 1.63 in W x 1.19 in D 3.28 x 1.63 x 1.19 3.28 x 1.63 x 1.19 in
- Weight
- 1
Product description & additional details
HBL5361I

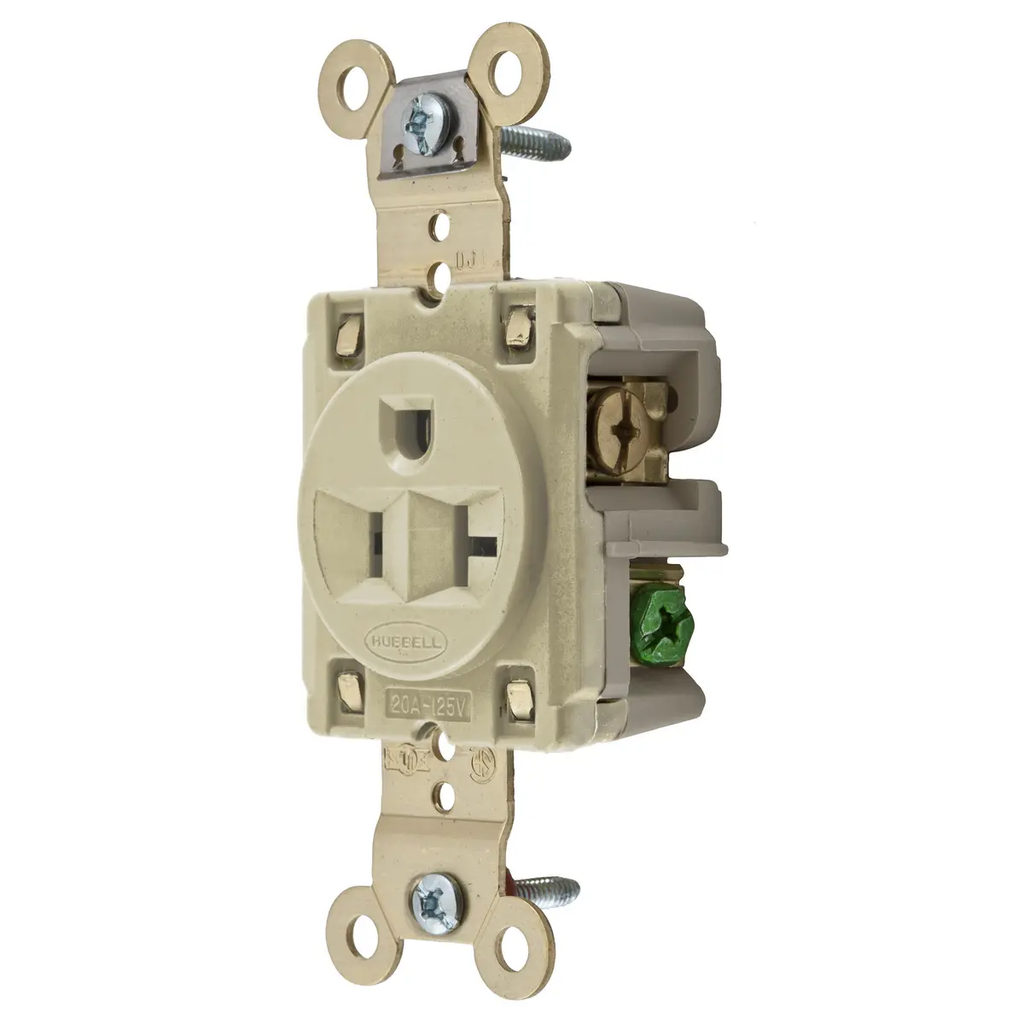

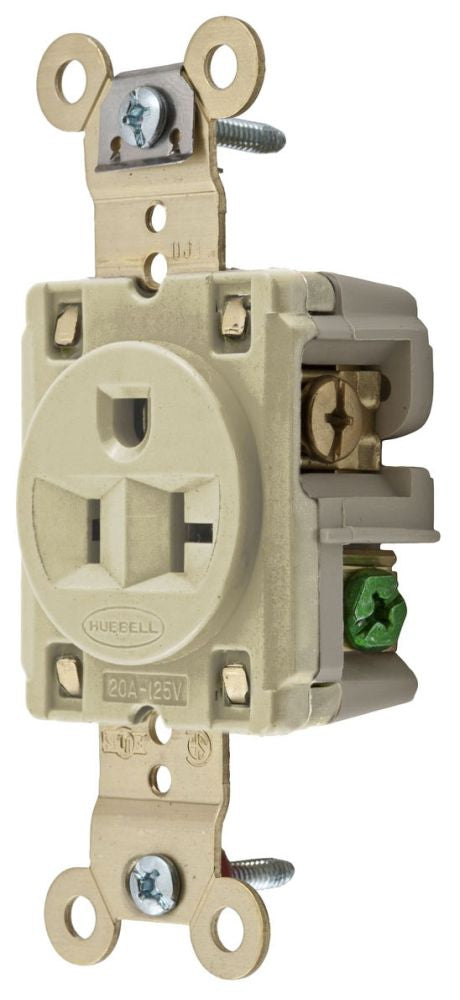

HBL5361I is a Hubbell 20 Amp, 125 Volt, 2-pole, 3-wire grounding extra heavy duty MAX specification grade single receptacle in ivory color.
This single receptacle features a nylon face and PBT base with a one-piece brass integral ground strap and unique bypass contact design. It is UL Listed to UL498 and CSA certified, compliant with NEMA WD-6 and Fed. Spec. W-C-596. It supports back and side wiring with #12-#10 AWG copper conductors and is rated for current interrupting at full rated current. The device withstands 2000V dielectric voltage and operates in temperatures from -40°C to 75°C continuous. Mounting strap and screws are brass and zinc plated steel respectively, with an auto self-grounding stainless steel clip.
- Key Specifications
- Amperage: 20A
- Voltage: 125V
- Poles: 2
- Wires: 3 (Grounding)
- Material: Nylon face, PBT base
- Mounting: Flush, back and side wired
- Interrupt Rating: Certified for full rated current interrupting
- Certifications: UL Listed UL498, CSA 22.2 No. 42, Fed. Spec. W-C-596
- Compliance: NEMA WD-6
- Wire Size: #12 to #10 AWG copper
- Dielectric Voltage: 2000V minimum
- Operating Temp: -40°C to 75°C continuous
- Part Number: HBL5361I
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Family : HBL
- Voltage : 125 125
- Amperage : 20
- Poles : 2
- UPC : 783585013916
- GTIN : 00783585013916
- Dimensions : 3.28 in H x 1.63 in W x 1.19 in D 3.28 x 1.63 x 1.19 3.28 x 1.63 x 1.19 in
- Weight : 1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
Product Data
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
