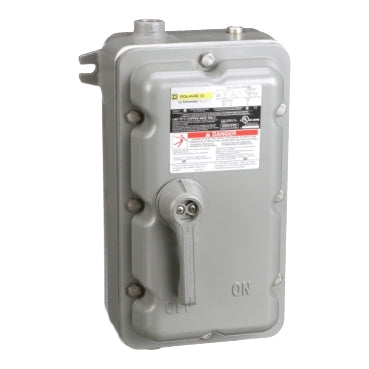

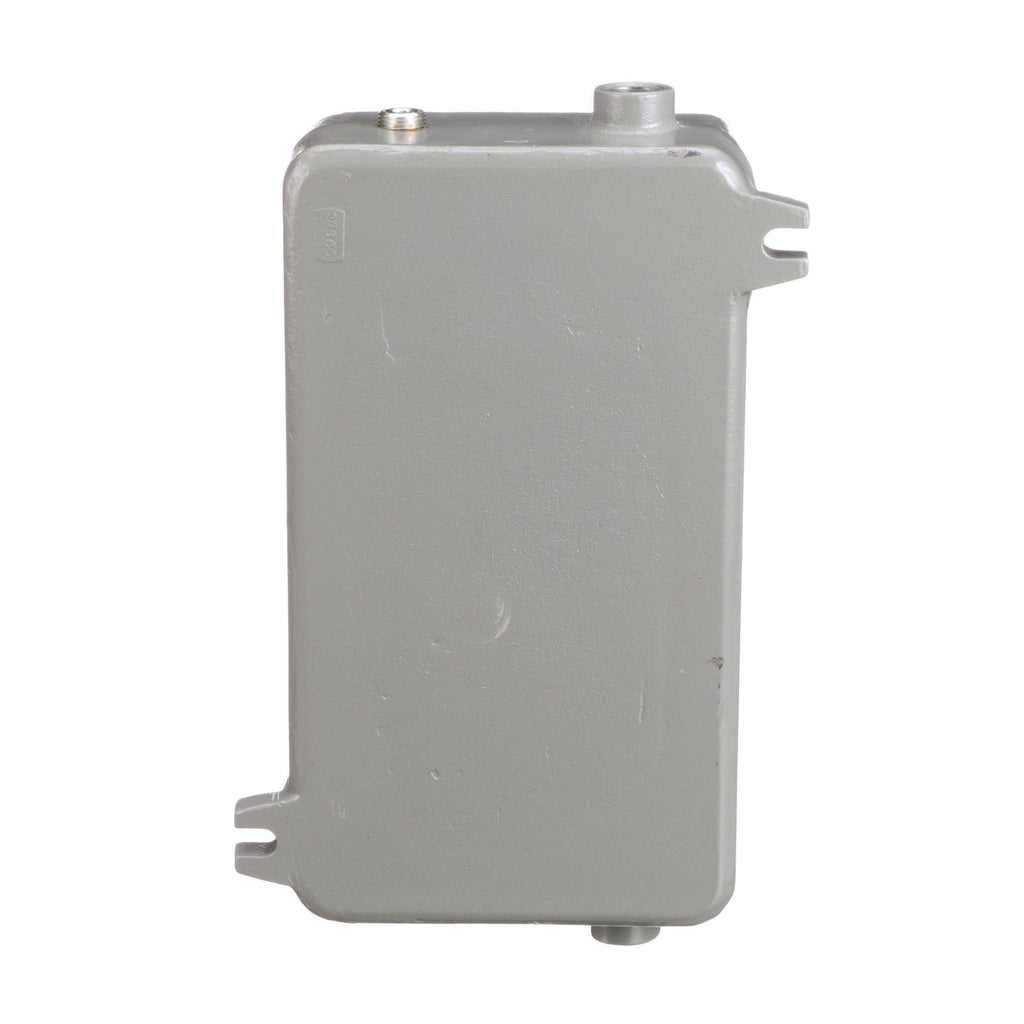

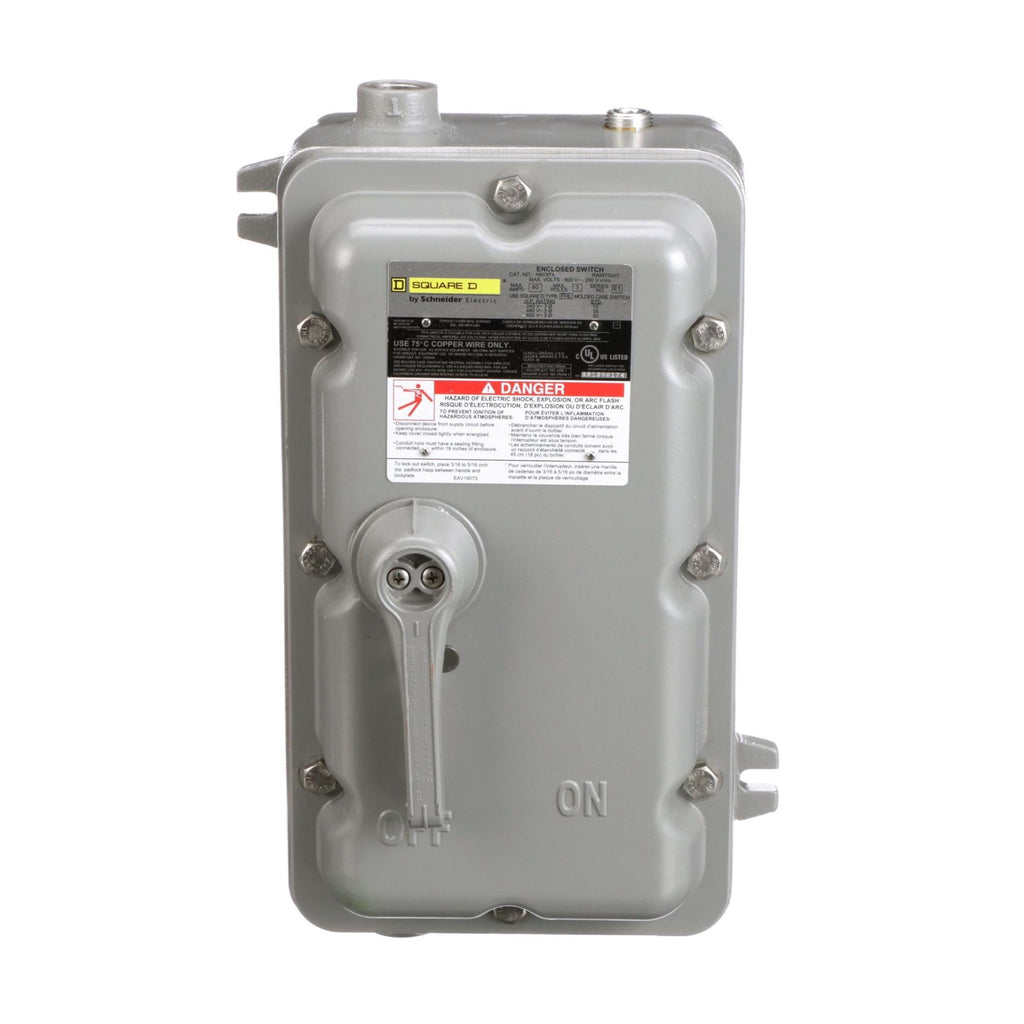

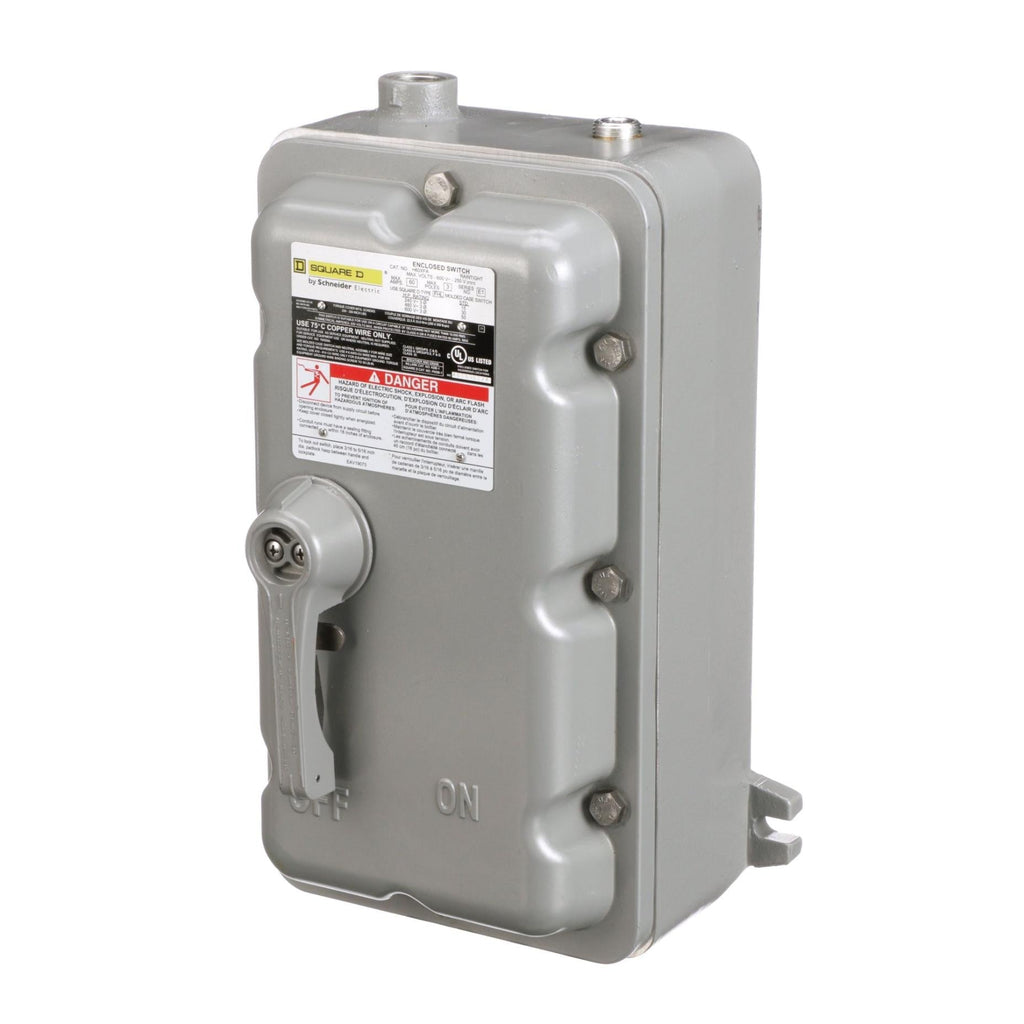

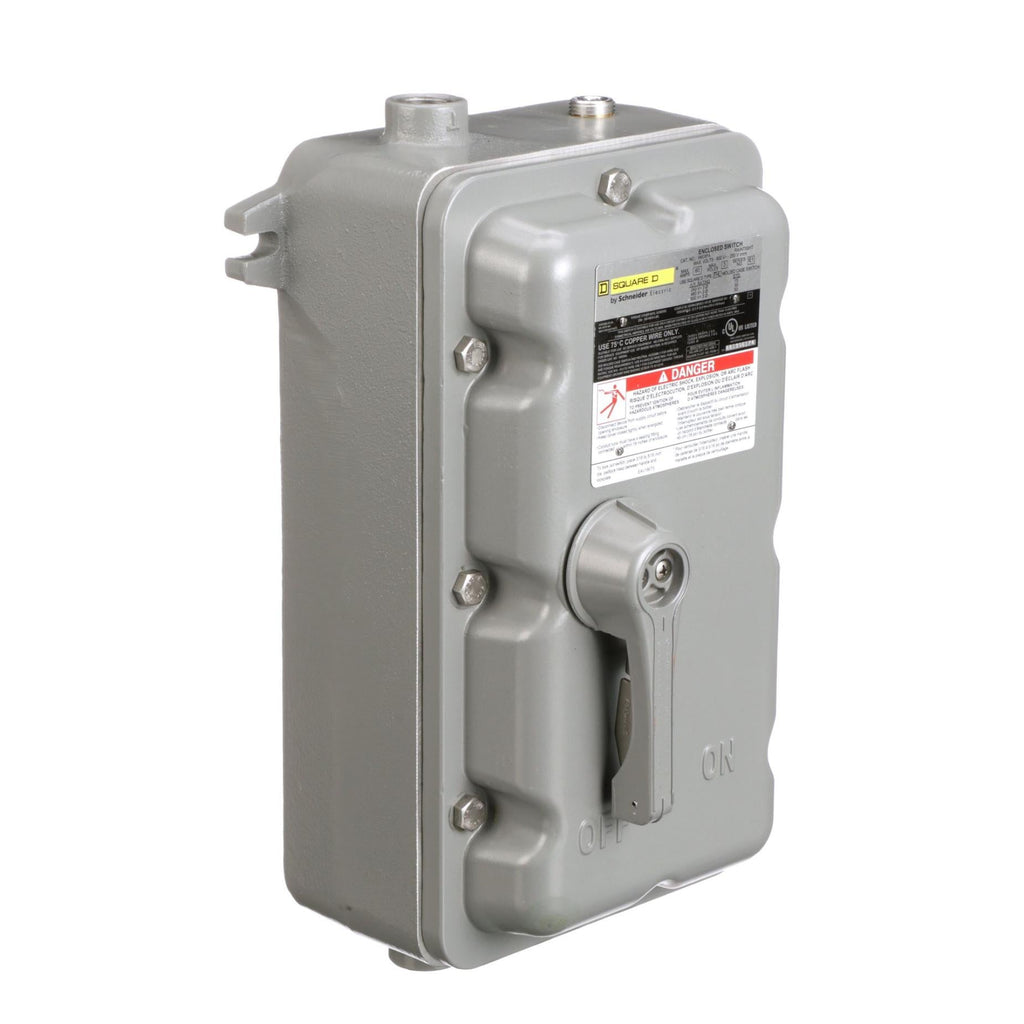

H60XFA - Square D 60 Amp 600VAC 3 Pole Surface Mount Safety Switch Series E Frame HU NEMA 7/9 Fusible

H60XFA

H60XFA is a Square D 60 Amp 600VAC/250VDC 3 Pole fusible safety switch designed for surface mounting in industrial and commercial applications.This heavy duty Series E safety switch features a HU frame type with NEMA 7/9 rating, suitable for harsh environments. It supports wire gauges AWG 14 to AWG 3 copper and AWG 12 to AWG 3 aluminum, and is UL and CSA certified. The cast aluminum body ensures durability and compliance with RoHS standards.

Key Specifications
• Amperage: 60 Amps
• Voltage: 600VAC / 250VDC
• Poles: 3
• Mounting Type: Surface
• Series/Frame: Series E, HU Frame
• Interrupt Rating: NEMA 7/9
• Fusibility: Fusible
• Body Material: Cast Aluminum
• Certifications: UL, CSA, RoHS
• Wire Gauge Range: AWG 14-3 Copper, AWG 12-3 Aluminum
• Duty Rating: Heavy Duty
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: H60XFA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 9-Jul
• Compatible Frames : ED



Product Data

• UPC : 785901327561
• GTIN : 00785901327561
• Dimensions : 15.93 in (404.62 mm) x 9.87 in (250.70 mm) x 6.96 in (176.78 mm) (Height x Width x Depth)
• Weight : 26.451
• Certification : UL, CSA
