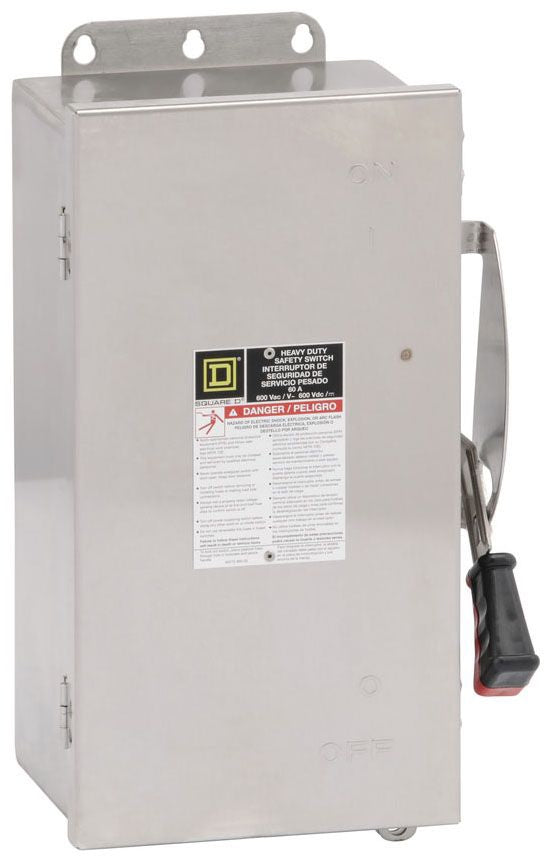

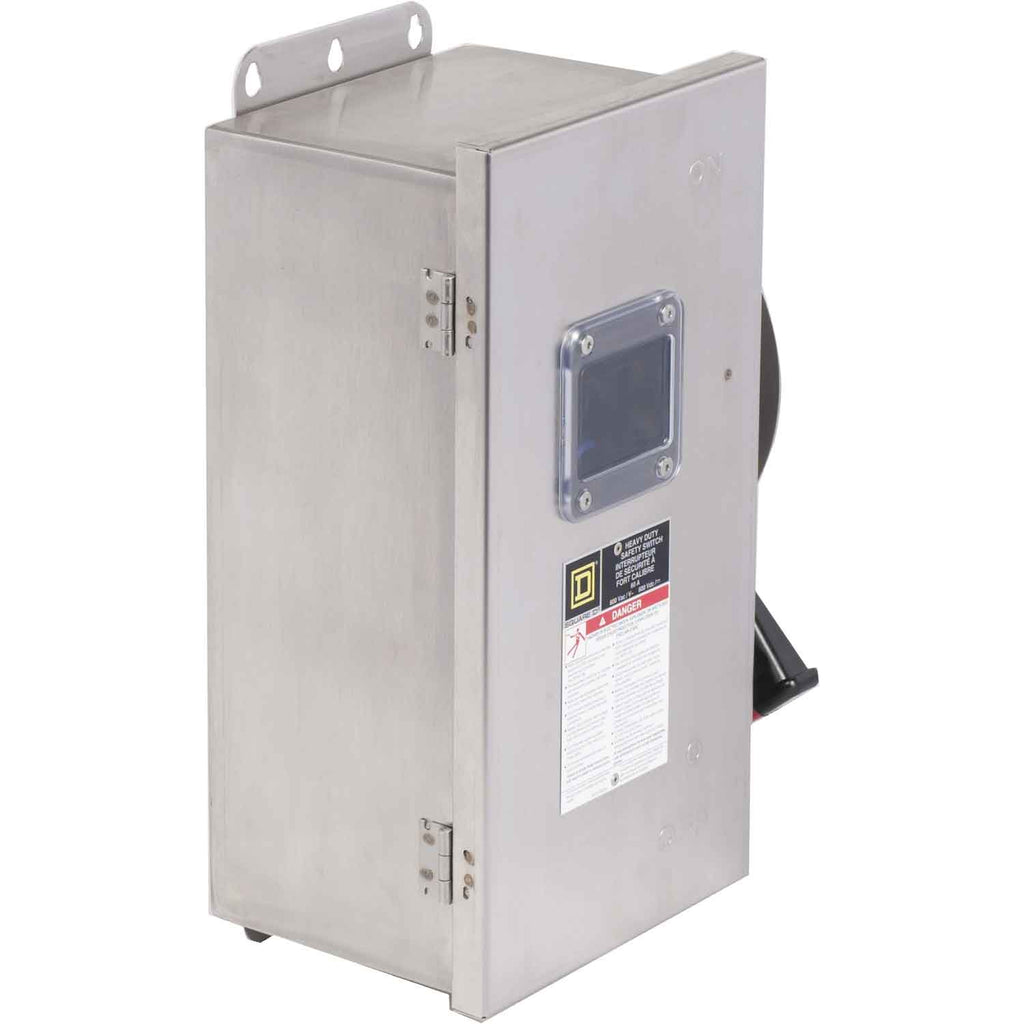

H362DS - Square D 60A 600V 3 Pole Fusible Safety Switch NEMA 4X Stainless Steel

H362DS

H362DS is a heavy-duty fusible safety switch designed for reliable circuit protection in demanding environments.This Square D H362DS switch features a 3 pole, 60 amp configuration with a voltage rating of 600VAC/DC. It is constructed with a NEMA 4X stainless steel enclosure for superior durability and corrosion resistance, making it suitable for both indoor and outdoor applications. The switch is fusible, rated for heavy-duty use, and includes a quick make, quick break operating mechanism for safe and efficient operation.

• Part Number: H362DS
• Manufacturer: Square D
• Amperage: 60A
• Voltage: 600VAC/DC
• Poles: 3
• Mounting Type: Surface
• Interrupting Rating: 200kA@600V
• Series/Frame: H
• Enclosure: NEMA 4X, Stainless Steel
• Fusibility: Fusible

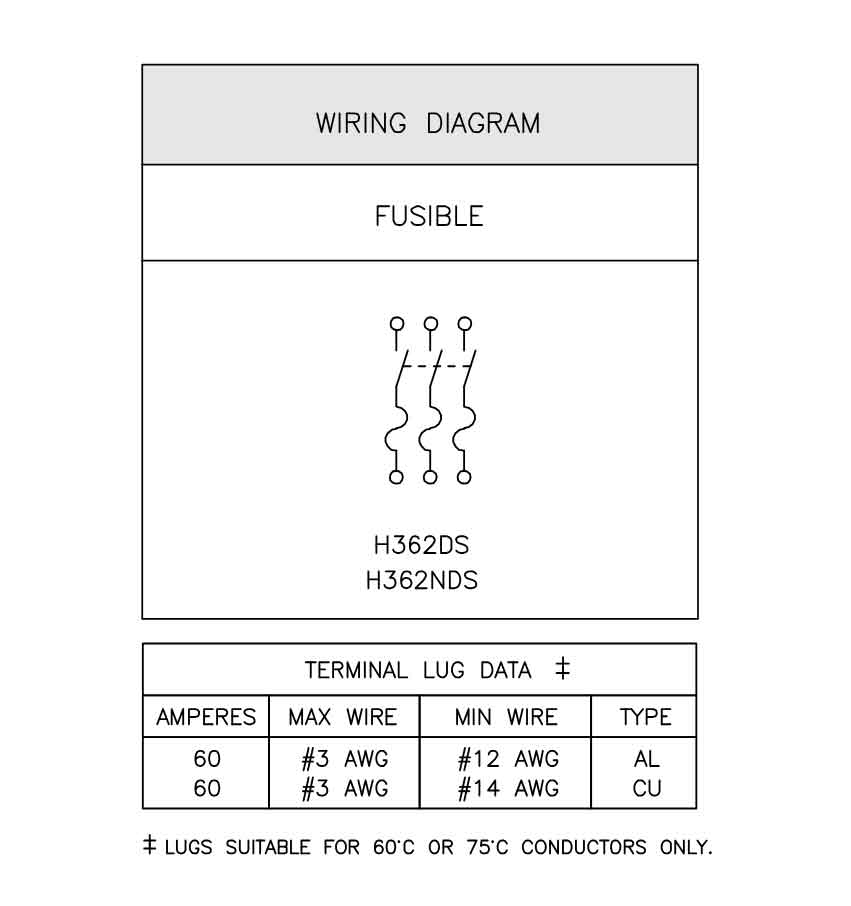

• Wire Size: AWG 14 to AWG 3 Copper
• Certifications: UL, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H362DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13–158 °F (-25–70 °C)
• Fuse Class : H, K, R, J
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 4/4X/5
• Compatible Frames : NSX

Product Data

• UPC : 785901023661
• GTIN : 00785901023661

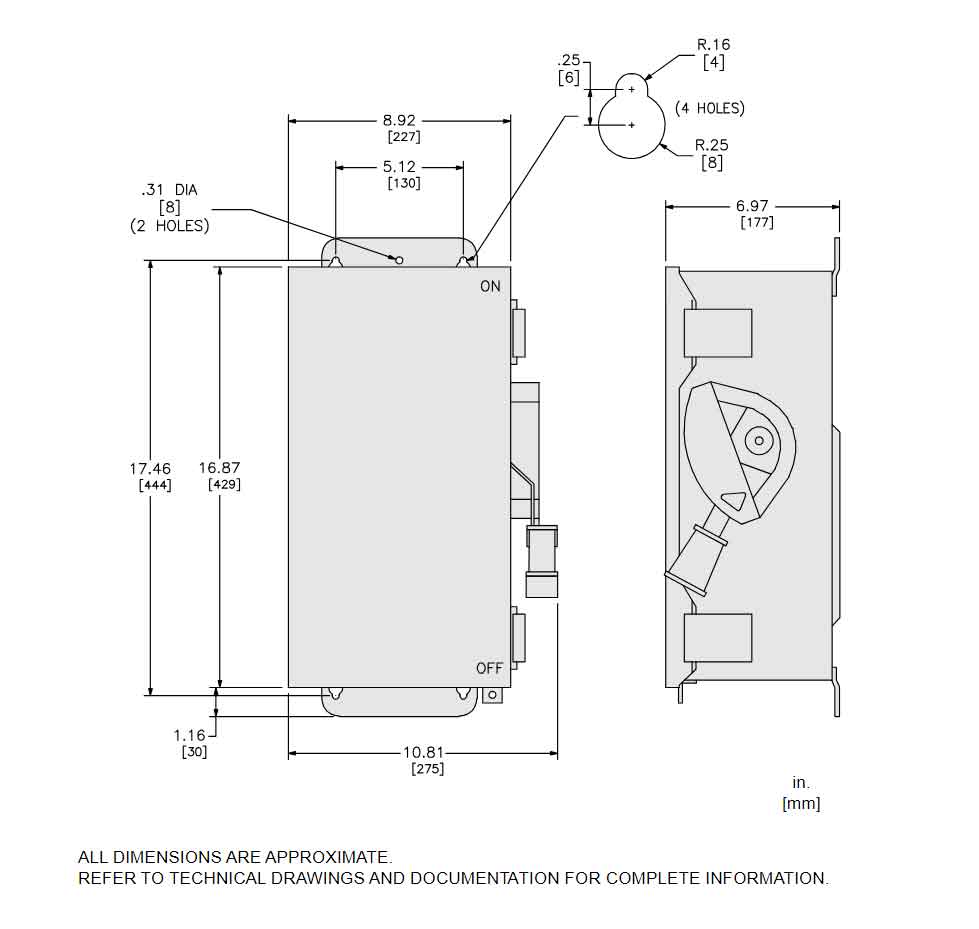

• Dimensions : 16.87 in (428.50 mm) x 10.81 in (274.57 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
• Weight : 18.951 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL
