Product Info
- Manufacturer: Square D
- Sub-Category: Disconnect
Description
H361DS

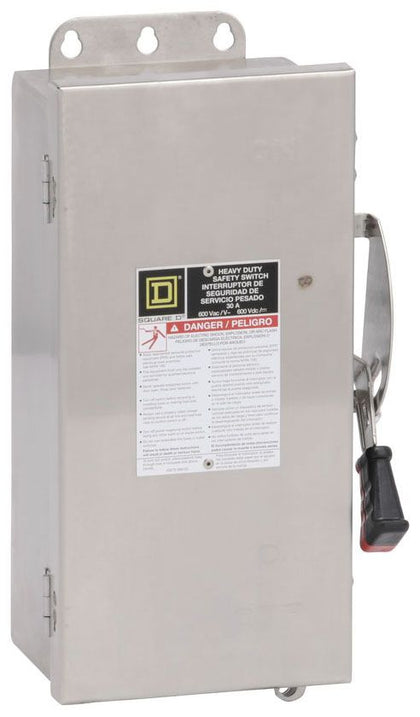

The Square D H361DS is a 3 phase 3 pole 600 Volt 30 Amp H type Disconnect Switch. This switch has a Nema rating of 4/4X and an AIC rating of 200kA@600V. This stainless steel disconnect had a single switch configuration and uses class R, J, H, and K fuses. Suitable for use as service entrance equipment. Nema Type 4, 4X, 5 304 stainless steel watertight, dust-tight, corrosion resistant for indoor/outdoor use.
Specifications
- Part Number: H361DS
- Manufacturers: Square D
- Sub-Category: Disconnect
- UPC: 785901023616
- GTIN: 00785901023616
- Poles: 3
- Phase: 3
- Voltage: 600
- Amperage: 30
- AIC Rating: 200kA@600V
- Wire size: AWG 12 to AWG 6 Aluminum, AWG 14 to AWG 6 Copper
- Family: Series F
- Type: H
- Certification: UL
- Dimensions: Depth 5.11 in (129.79 mm) Width 8.67 in (220.22 mm) Height 14.93 in (379.22 mm)
- Weight: 14.23 lb
