H225NR - Square D 400A 240VAC/250VDC 2-Pole Heavy Duty Fusible Safety Switch NEMA 3R Surface Mount

H225NR

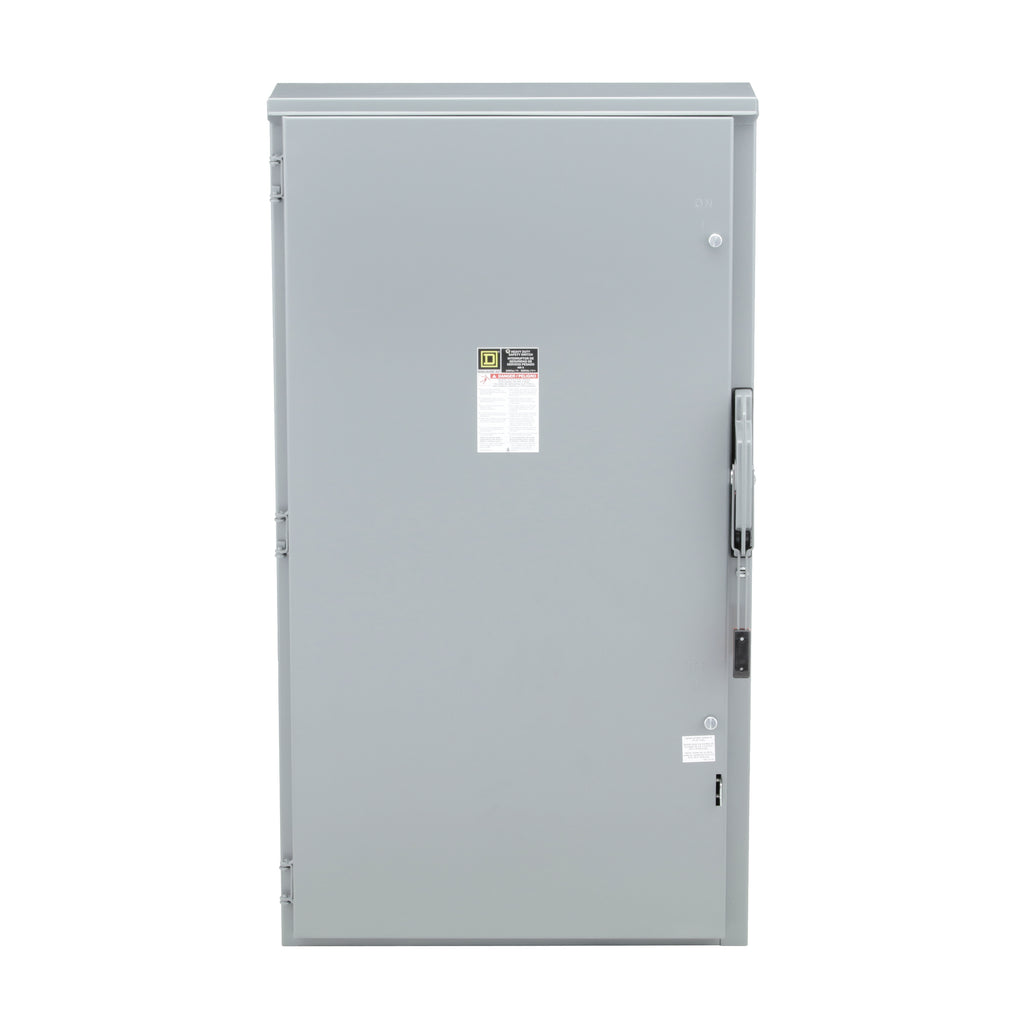

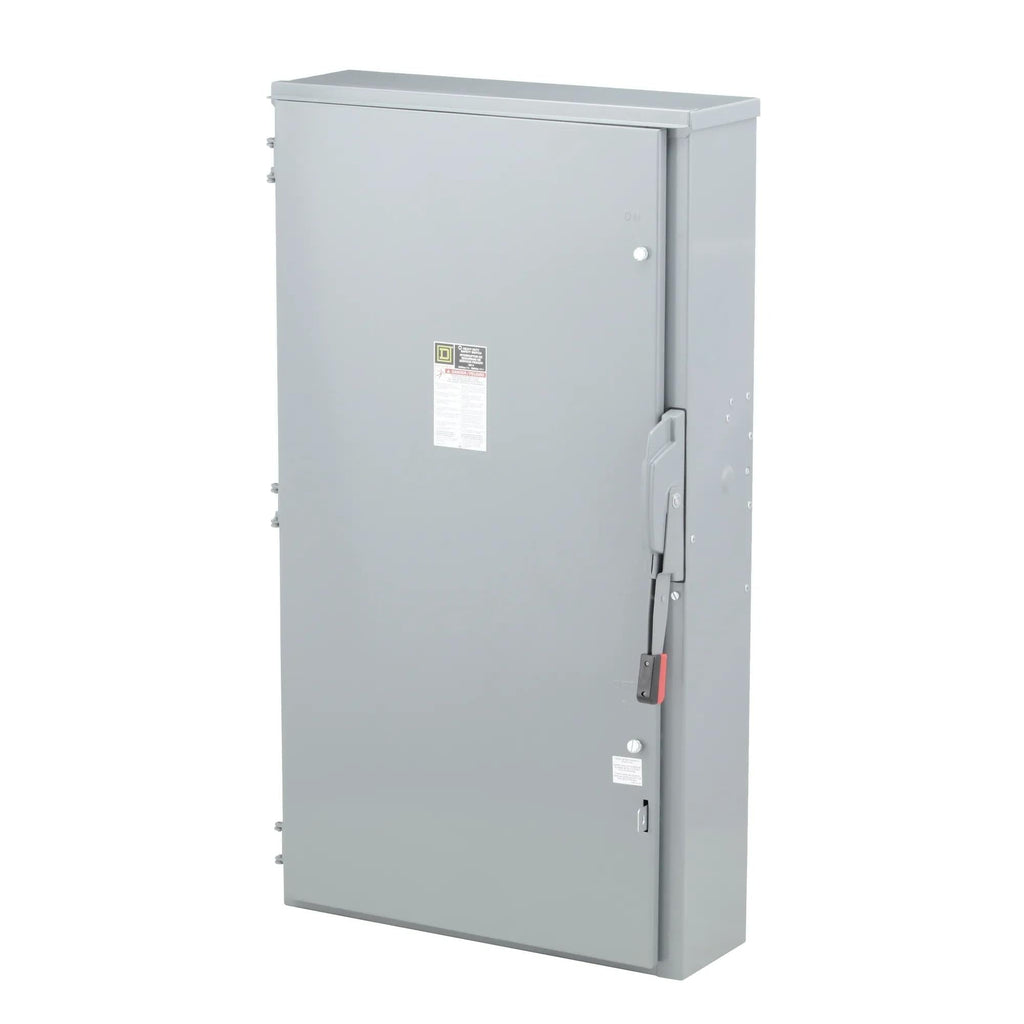

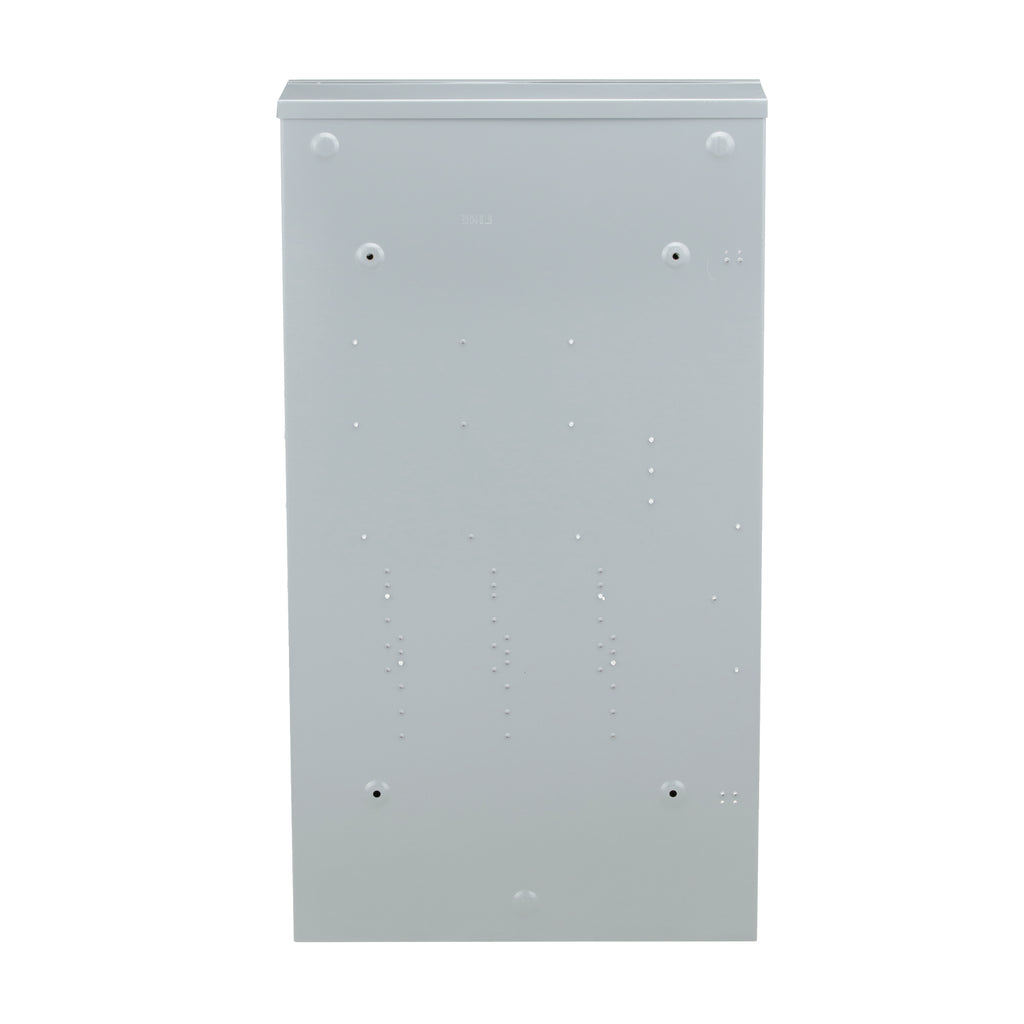

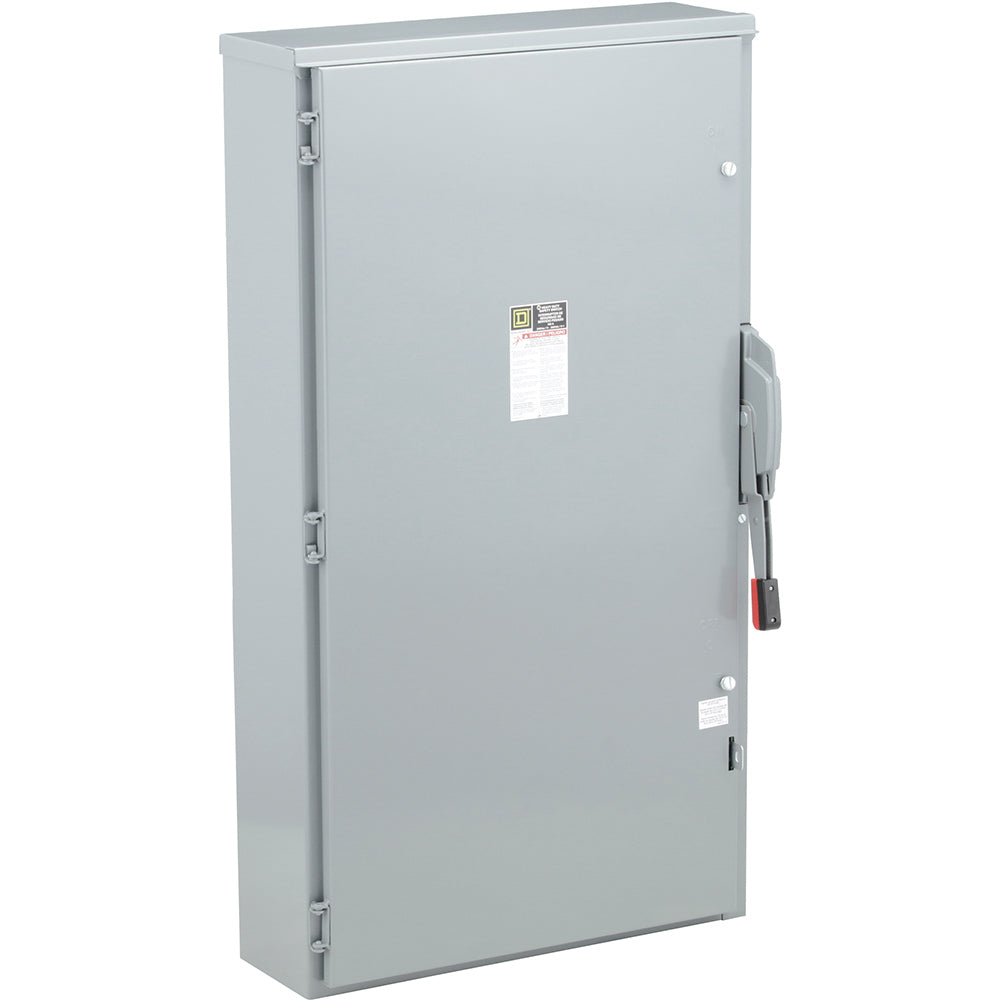

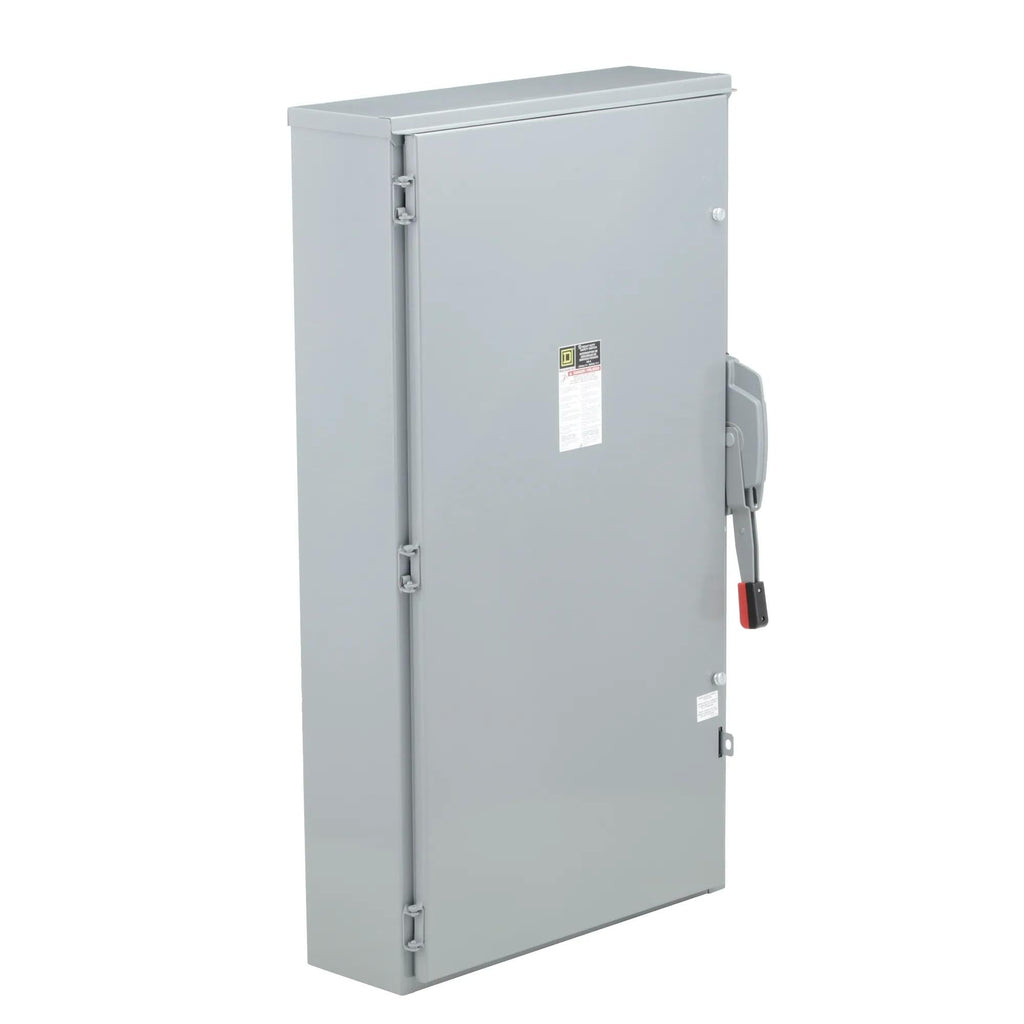

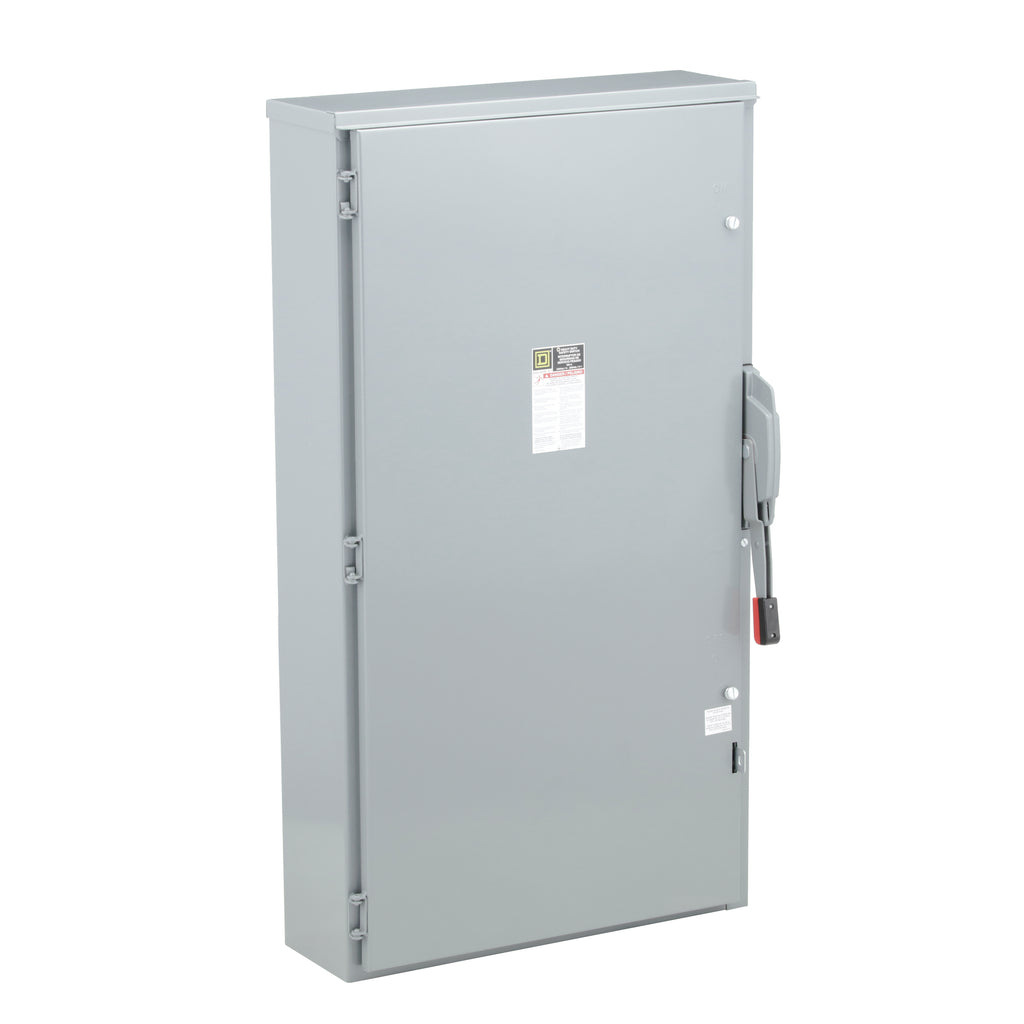

H225NR is a Square D heavy duty fusible safety switch rated for 400 amps and 240VAC/250VDC operation with a 2-pole configuration.This Square D H225NR safety switch features a NEMA 3R galvannealed steel enclosure with a factory-installed neutral and surface mounting. It supports 3-wire, 3-phase wiring and has a short circuit current rating of 200kA. Designed for industrial and commercial use, it is rated for 50 hp at 240VAC and 125 hp at 250VDC, with a temperature range from -22 to 104 degrees Fahrenheit. The switch includes lug terminals and a handle actuator, meeting UL listing requirements and providing reliable heavy duty performance.

Key Specifications
• Amperage Rating: 400 A
• Voltage Rating: 240 VAC / 250 VDC
• Number of Poles: 2
• Enclosure Type: NEMA 3R, galvannealed steel
• Mounting Type: Surface mount
• Short Circuit Current Rating: 200 kA
• Horsepower Rating: 50 hp (240 VAC), 125 hp (250 VDC)
• Wiring Configuration: 3-wire, 3-phase
• Terminal Type: Lug
• Series/Frame: E5 Series Heavy Duty
• Trip Unit: Fusible
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H225NR
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 240 AC/250 DC
• Amperage : 400
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : R
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : FAP

Product Data

• UPC : 785901450405
• GTIN : 00785901450405
• Country of Origin : Mexico
• Dimensions : 50.31 in (1277.87 mm) x 27.88 in (708.15 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 175.001
• Certification : UL listed
