Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H224NRB

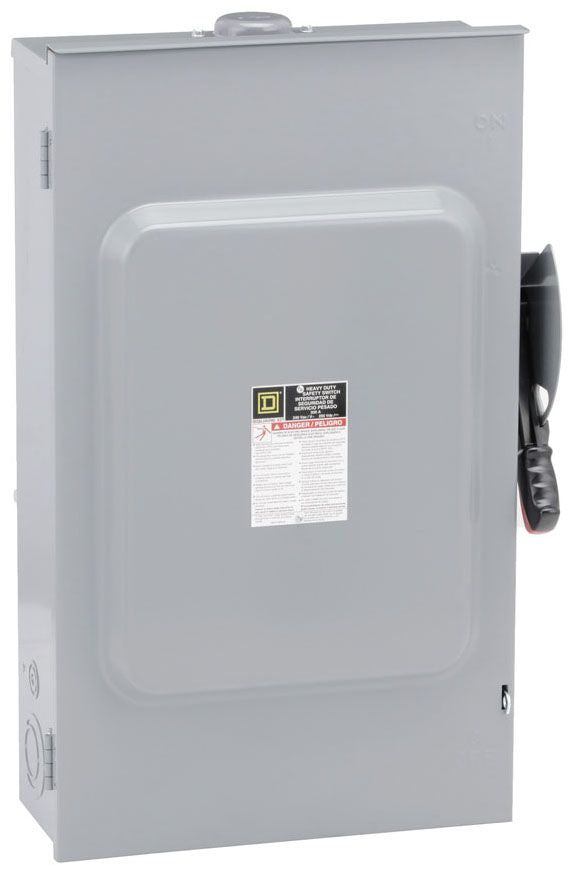

H224NRB is a Square D heavy duty fusible safety switch rated for 200 amperes at 240VAC or 250VDC with 2 poles and surface mounting in a NEMA 3R galvannealed steel enclosure. This single throw disconnect switch features a factory-installed neutral and is designed for reliable load isolation and motor control applications. The switch accommodates Class H, J, K, L, and R fuses and is constructed with galvannealed steel for outdoor weather resistance including rainproof and sleet/ice proof protection.
- Amperage Rating: 200A
- Voltage: 240VAC / 250VDC
- Poles: 2
- Neutral: Factory installed
- Mounting: Surface
- Enclosure Material: Galvannealed steel
- NEMA Rating: 3R
- Fuse Class: H, J, K, L, R
- Horsepower: 60 HP at 240VAC, 40 HP at 250VDC
- Configuration: Single throw
- Dimensions: 18.63 in W x 8.5 in D x 29.25 in H
Specifications
- Part Number: H224NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 3R
- Compatible Frames : FAP
Product Data
- UPC : 785901478249
- GTIN : 00785901478249
- Dimensions : 29.25 in (742.95 mm) x 17.13 in (435.10 mm) x 8.5 in (215.9 mm) (Height x Width x Depth)
- Weight : 42.92
