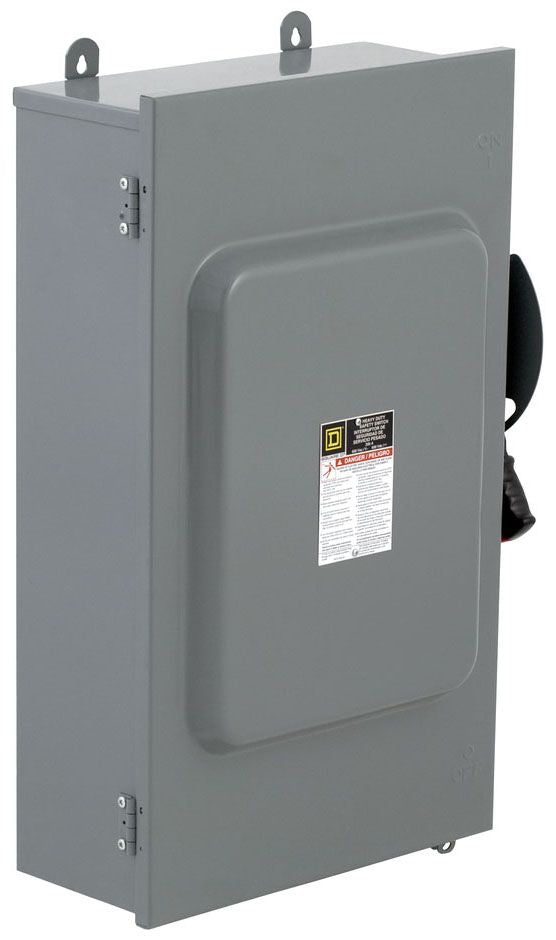

H224AWK - Square D 200A 240V 2 Pole Fusible Heavy Duty Safety Switch NEMA 3R/12

H224AWK

H224AWK is a heavy duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications. This Square D Series E disconnect switch features a 2 pole configuration and is rated for 200A at 240VAC/250VDC, making it suitable for a wide range of power distribution needs. The H224AWK switch is constructed with a steel enclosure and is rated for both NEMA 3R and NEMA 12 environments, providing protection against dust, water, and corrosion. It is a fusible switch, supporting Class H/J/K/L/R fuses, and is designed for surface mounting. The switch is suitable for 1-phase systems and offers a high interrupt rating of 200kA at 240V, ensuring safety in demanding electrical environments.

• Part Number: H224AWK
• Manufacturer: Square D
• Amperage: 200A
• Voltage: 240VAC/250VDC
• Poles: 2
• Mounting Type: Surface
• Interrupt Rating: 200kA @ 240V
• Series/Frame: Series E
• Enclosure Type: NEMA 3R/12
• Fuse Type: Class H/J/K/L/R
• Phase: 1
• Material: Steel

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H224AWK
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R/12
• Compatible Frames : FAP

Product Data

• UPC : 078590147822
• GTIN : 00785901478225
• Dimensions : 29 in (736.6 mm) x 17.25 in (438.15 mm) x 8.75 in (222.25 mm) (Height x Width x Depth)
• Weight : 42.86
