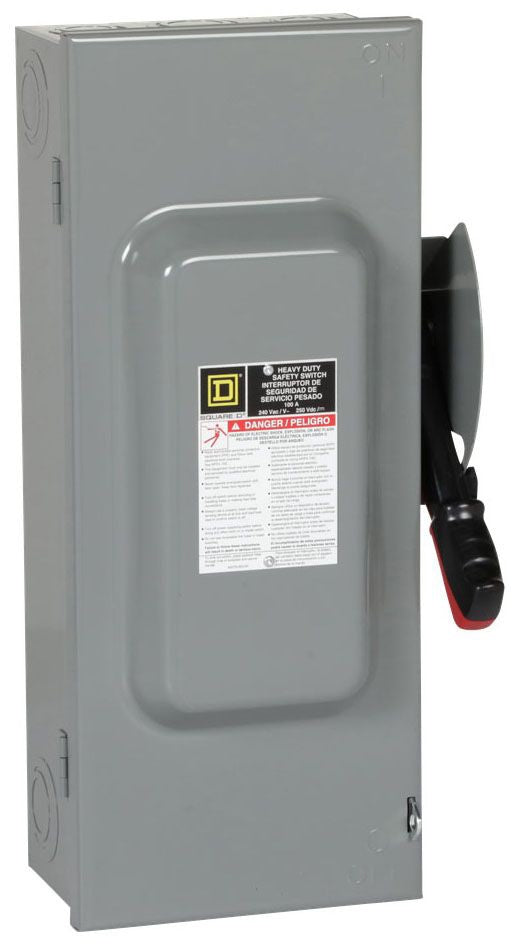

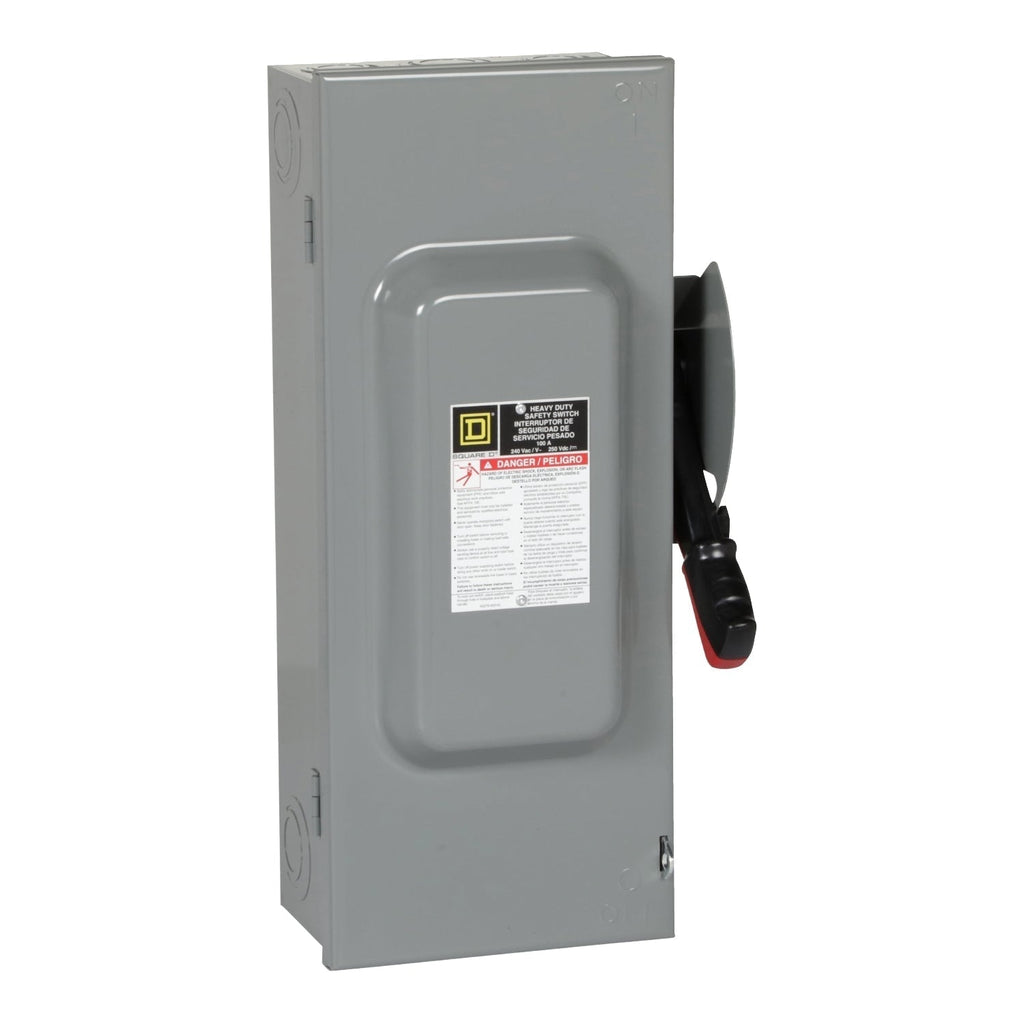

H223N - Square D 100A 240V 2 Pole Fusible Heavy Duty Safety Switch NEMA 1

H223N

H223N is a Square D heavy duty fusible safety switch rated for 100 amps and 240 volts with a 2-pole configuration and NEMA 1 enclosure.This switch features a fusible disconnect design with a factory-installed neutral, suitable for indoor general-purpose applications. It supports 3-wire operation with quick make, quick break mechanism and is rated for 30 HP at 240VAC. The NEMA 1 enclosure provides protection for indoor use, and the switch is designed for heavy-duty service with a solid neutral and fusible protection.

Key Specifications
• Manufacturer: Square D
• Part Number: H223N
• Amperage: 100 Amps
• Voltage: 240 VAC / 250 VDC
• Poles: 2
• Enclosure Type: NEMA 1 (Indoor)
• Switch Type: Fusible Heavy Duty
• Neutral: Factory Installed
• Interrupt Rating: Suitable for 30 HP at 240 VAC
• Mounting: Surface Mount
• Series/Frame: Square D Safety Switches
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H223N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : FAP

Product Data

• UPC : 785901477877
• GTIN : 00785901477877
• Dimensions : 21.25 in (539.75 mm) x 8.5 in (215.9 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 17.209
• Certification : UL Listed
