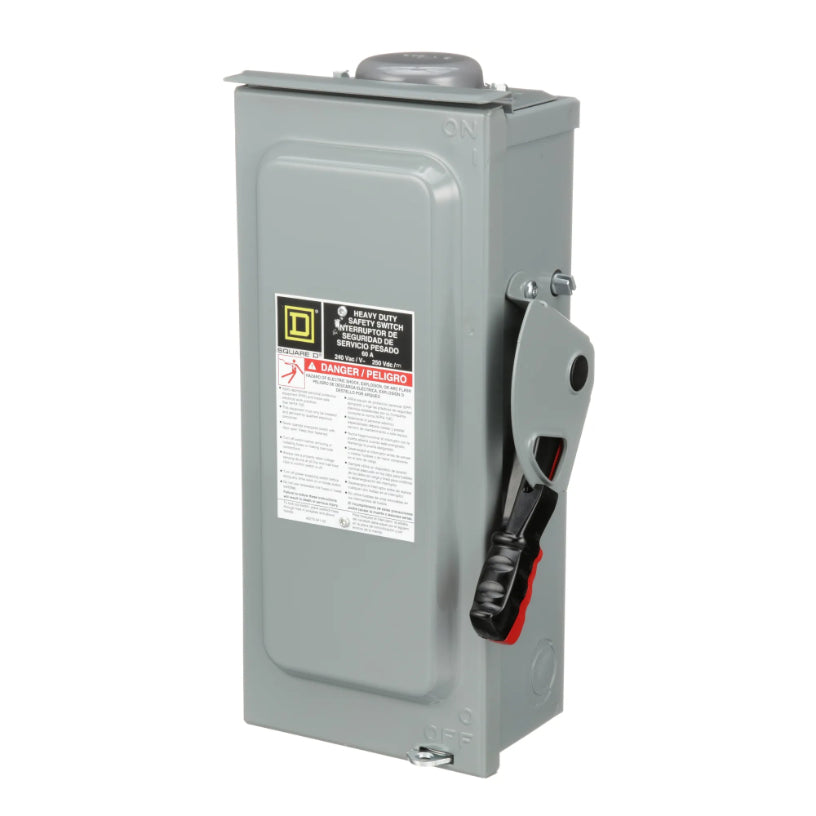

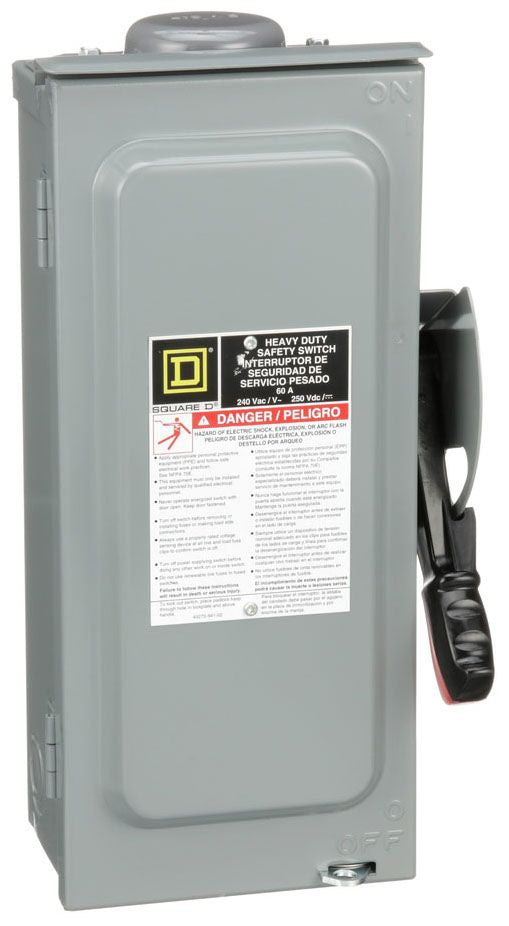

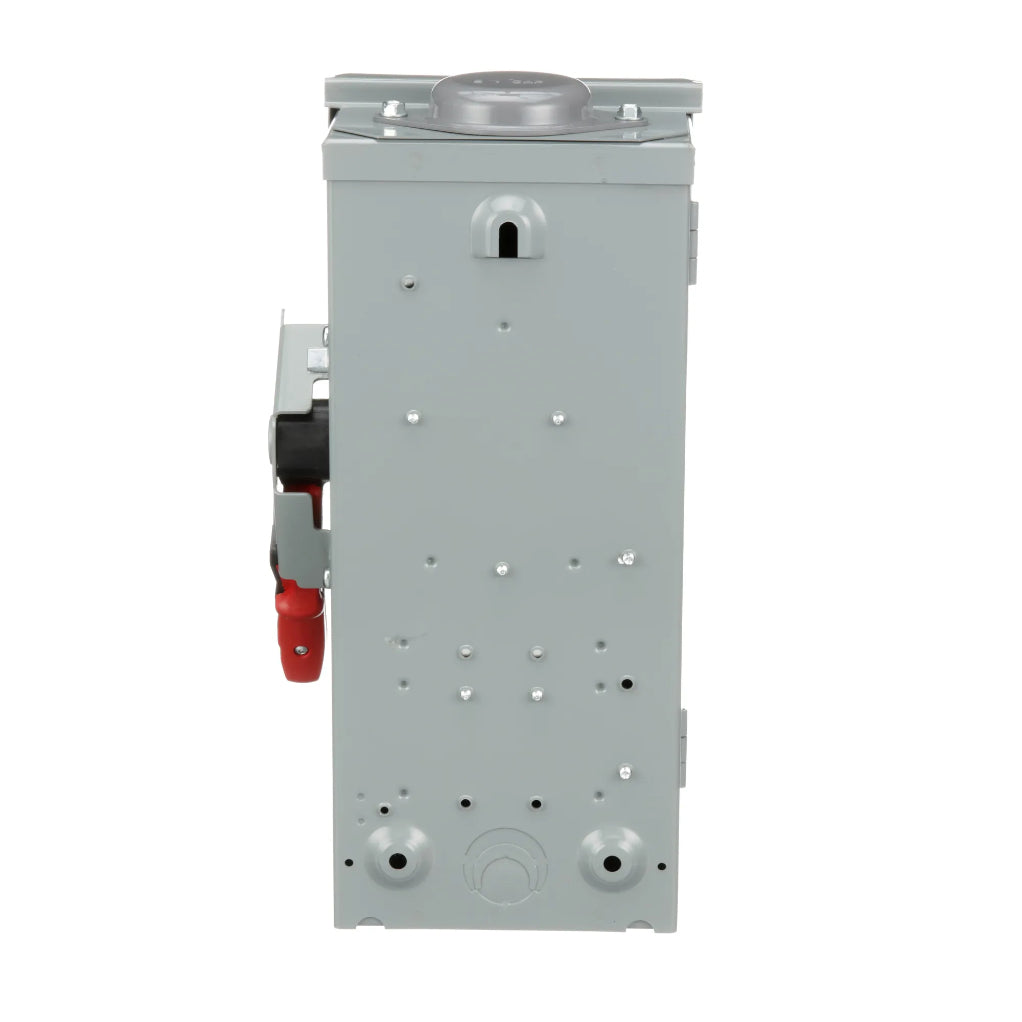

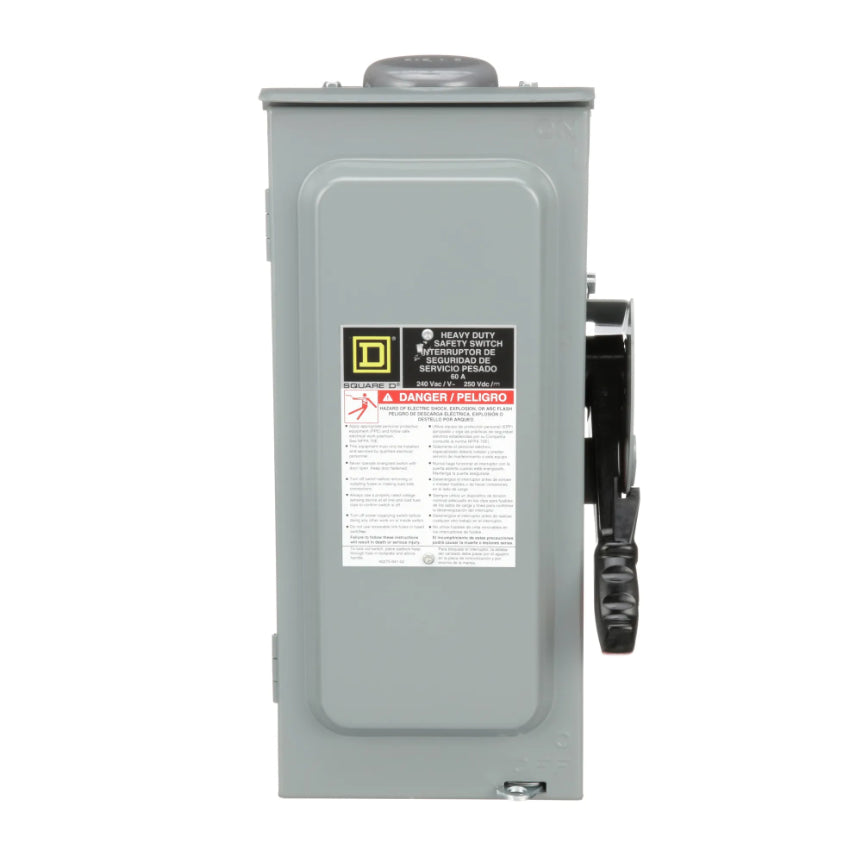

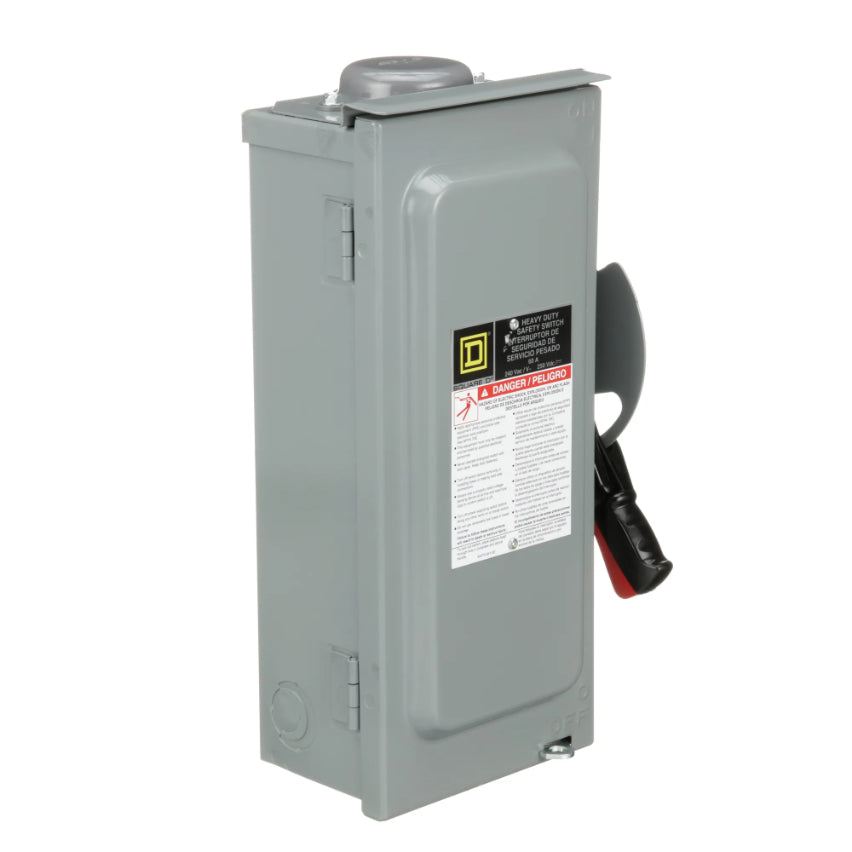

H222NRB - Square D 60A 240V 2-Pole Heavy Duty Fusible Safety Switch NEMA 3R

H222NRB

This surface-mounted safety switch features a galvannealed steel rainproof and sleet/ice proof enclosure suitable for indoor/outdoor use. It includes factory-installed neutral, lug terminals for #14 to #3 AWG wire, and a single throw disconnect type. The switch is UL listed with a short circuit current rating of up to 200kA depending on fuse class, providing reliable over-current and short-circuit protection for commercial and industrial applications.

Key Specifications
• Amperage: 60A
• Voltage Rating: 240 Vac / 250 Vdc
• Number of Poles: 2
• Mounting Type: Surface
• Enclosure Material: Galvannealed Steel
• Enclosure Rating: NEMA 3R (Rainproof, Sleet/Ice Proof)
• Disconnect Type: Fusible
• Wire Size: #14 to #3 AWG (Aluminum/Copper)
• Terminal Type: Lugs
• Short Circuit Current Rating: 10kA to 200kA (Fuse Class Dependent)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: H222NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R
• Compatible Frames : FAP



Product Data

• UPC : 785901478034
• GTIN : 00785901478034
• Country of Origin : United States
• Dimensions : 14.88 in (377.95 mm) x 6.63 in (168.40 mm) x 4.88 in (123.95 mm) (Height x Width x Depth)
• Weight : 8.38
