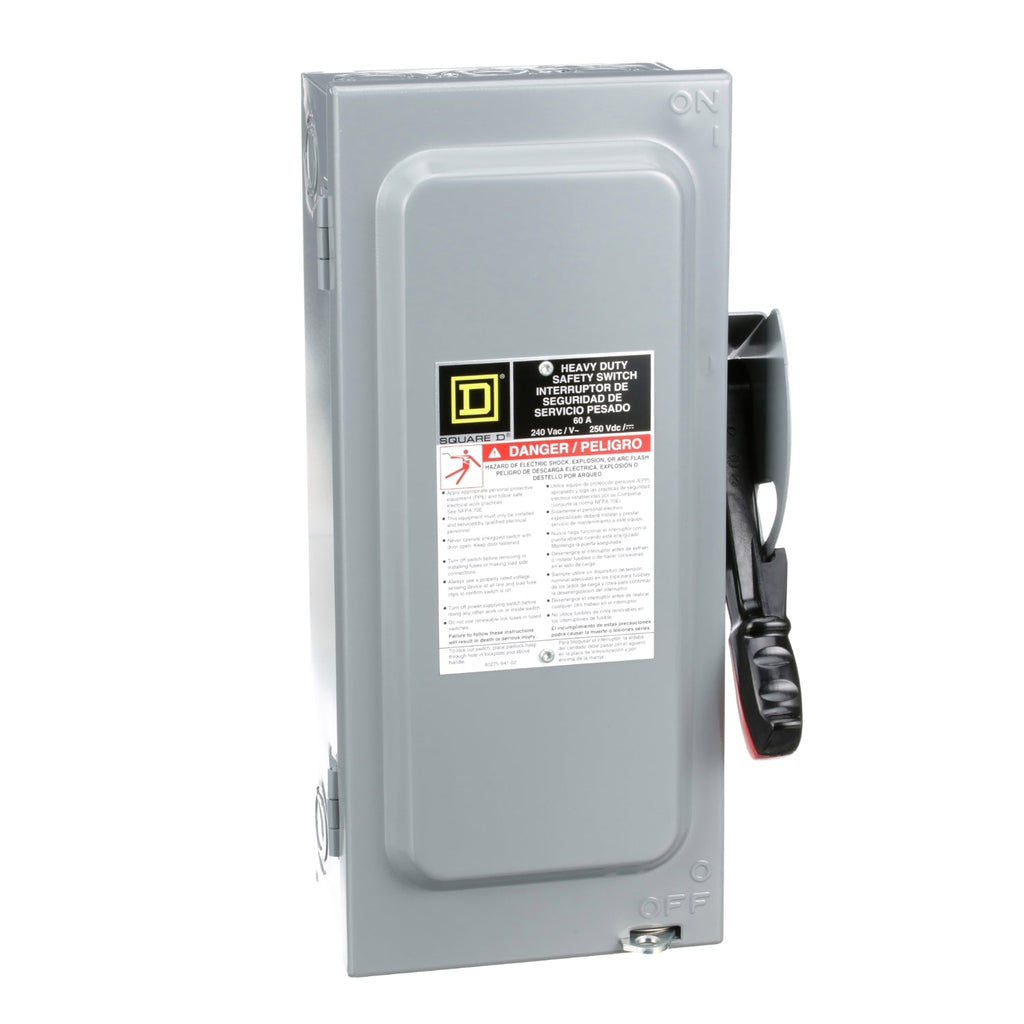

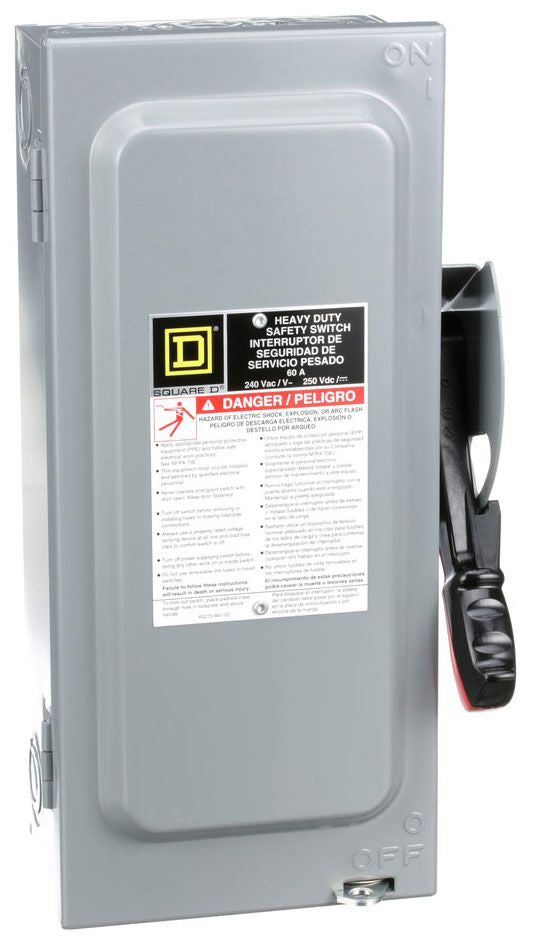

H222N - Square D 60A 240V 2-Pole Fusible Safety Switch, NEMA 1 Indoor Enclosure

H222N

H222N is a Square D heavy-duty fusible safety switch designed for reliable circuit isolation in commercial and industrial applications. This 2-pole, 60A switch is rated for 240V AC and features a NEMA 1 indoor enclosure for safe operation. The H222N is part of the Series D2 line and is ideal for single-phase systems requiring a robust disconnect solution. The H222N switch supports wire sizes from #14 to #3 AWG (Al/Cu) and is surface mountable for flexible installation. It is a fusible switch with a neutral terminal, providing added safety for maintenance and service work. The switch is built for durability and is suitable for use in environments where a high AIC rating is required.

• Part Number: H222N
• Manufacturer: Square D
• Amperage: 60A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Surface
• Interrupt Rating: High AIC
• Series/Frame: Series D2
• Enclosure: NEMA 1 Indoor
• Wire Size: #14 to #3 AWG (Al/Cu)
• Fusible: Yes
• Neutral: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H222N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : FAP

Product Data

• UPC : 785901477709
• GTIN : 00785901477709
• Dimensions : 14.6 in (370.8 mm) x 6.5 in (165.1 mm) x 4.88 in (123.95 mm) (Height x Width x Depth)
• Weight : 7.95
