GHB3080 - Cutler Hammer Bolt-on 480V 80A 3 pole circuit breaker 14kA@480V

GHB3080

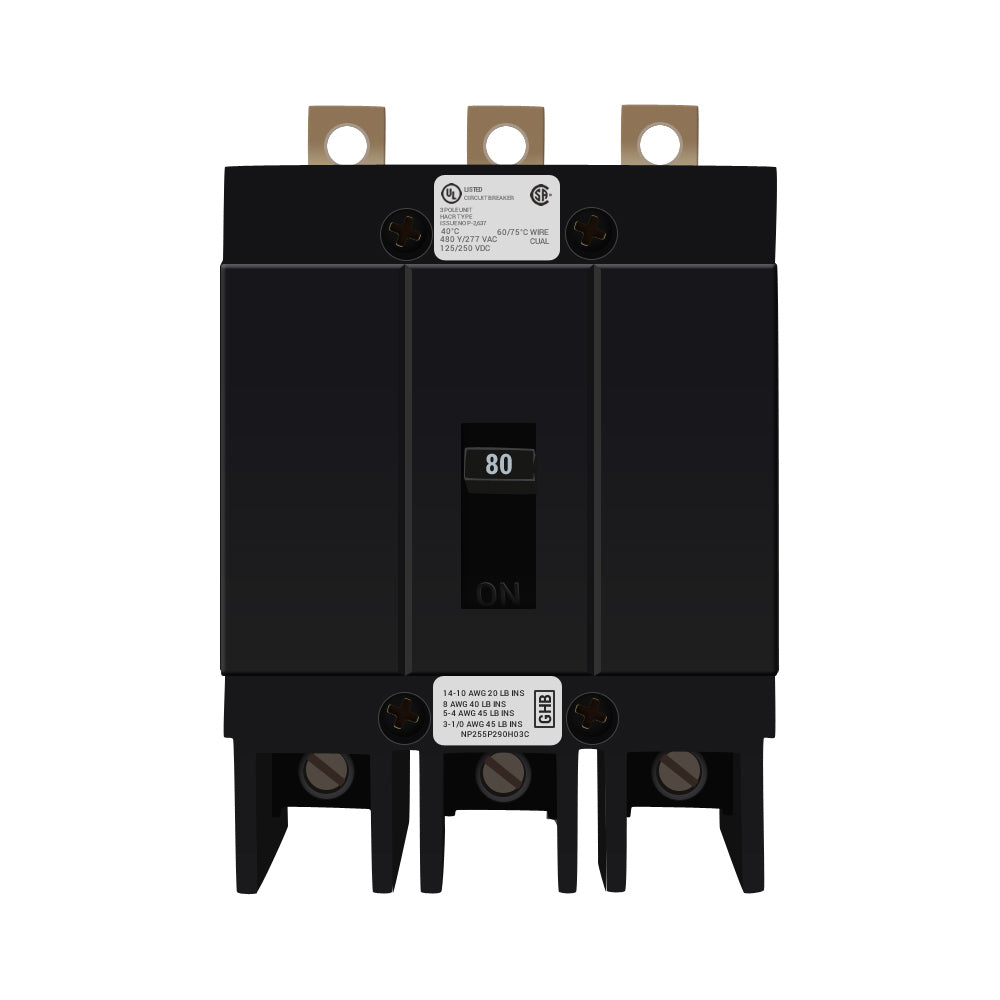

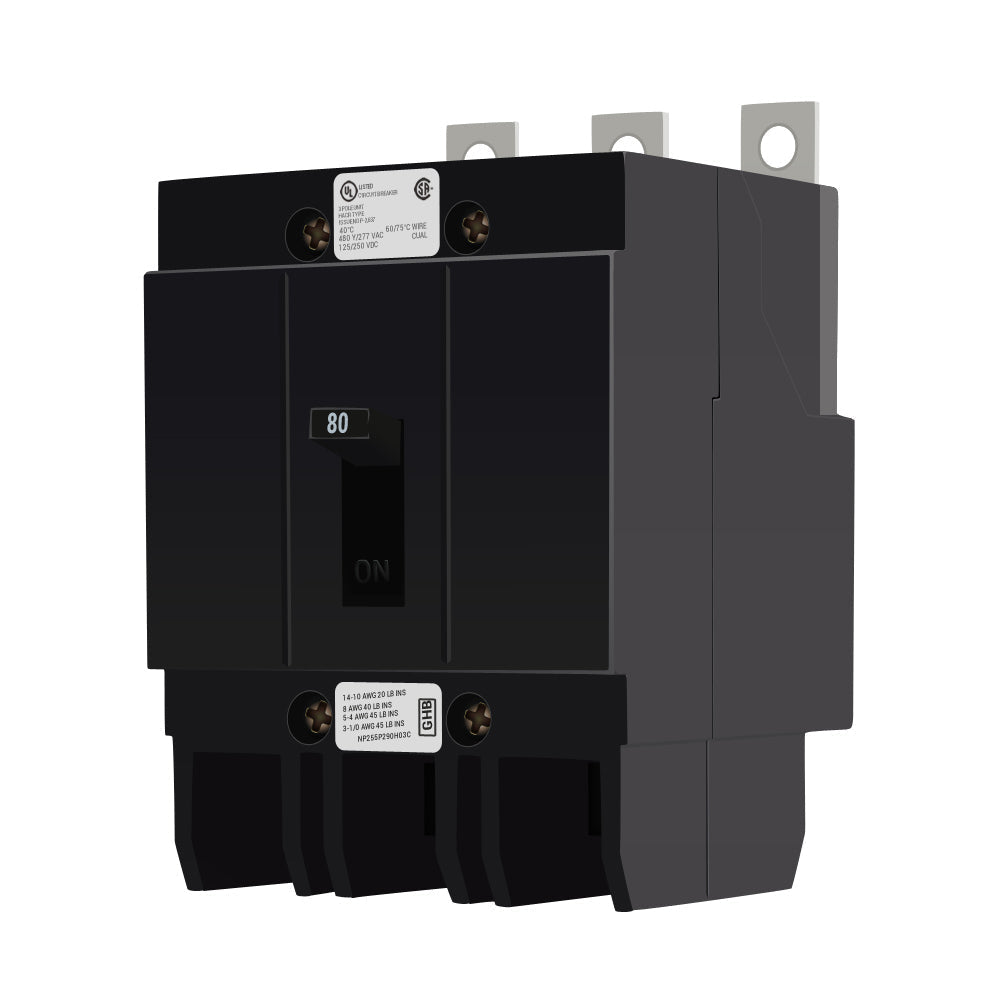

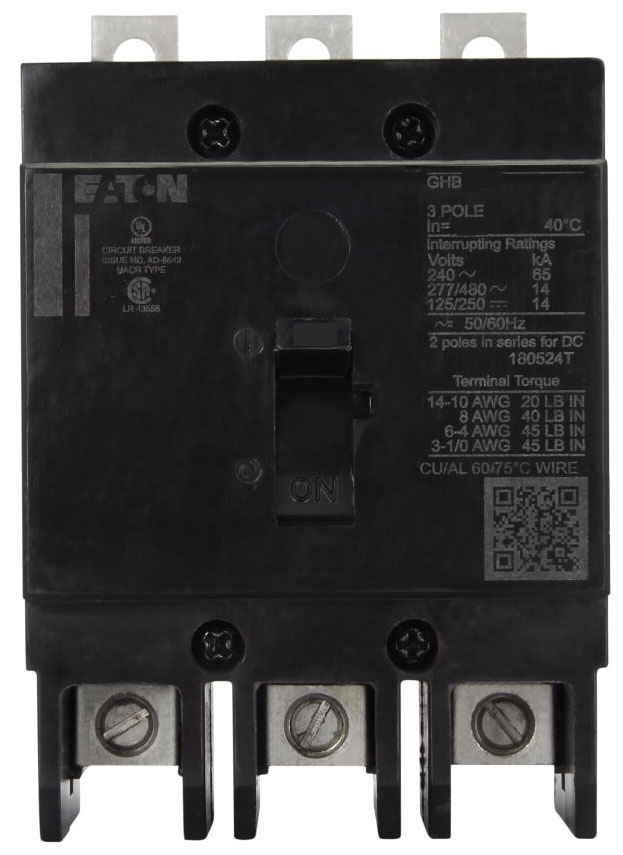

GHB3080 is an Eaton Cutler Hammer 80 amp, 3-pole molded case circuit breaker designed for reliable protection of branch and feeder circuits. This bolt-on style breaker is part of Eaton's GHB Series, providing dependable overcurrent protection for commercial and industrial panelboards. The GHB3080 features a compact molded case design, thermal-magnetic trip unit, and durable bolt-on connection for secure mounting. It supports operation up to 480V and is UL listed with an interrupt rating of 14kA@480V for consistent, high-performance protection. Key Specifications:

• Part Number: GHB3080
• Manufacturer: Eaton / Cutler-Hammer
• Series: GHB
• Amperage: 80A
• Poles: 3
• Voltage Rating: 480V
• Interrupt Rating: 14kA@480V
• Connection Type: Bolt-On
• Breaker Type(more...)


  Specifications

  • Part Number: GHB3080
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Series C
  • Type : GHB
  • Voltage : 480
  • Amperage : 80
  • Phase : 3
  • Poles : 3
  • AIC rating : 14kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Screw Clamp
  • Frame Size : 100/GHB
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 786679762806
  • GTIN : 00786679762806
  • Country of Origin : Dominican Republic
  • Dimensions : 2.63 in x 4 in x 3 in (Length/Depth x Height x Width)
  • Weight : 1.7
  • Panel Type : Eaton Powerline Panelboards
  • Standards : UL 557
  • Certification : CSA Certified, UL Listed
  • Wire Size : 10 to 1/0 AWG
