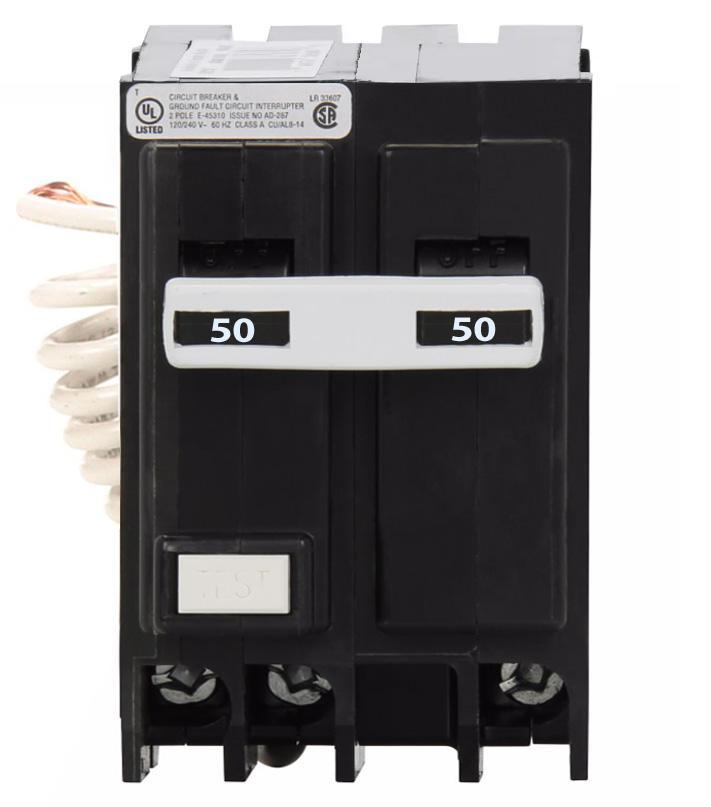

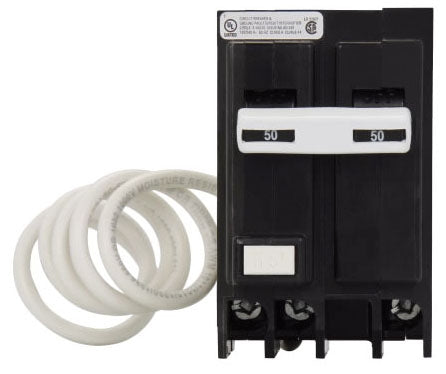

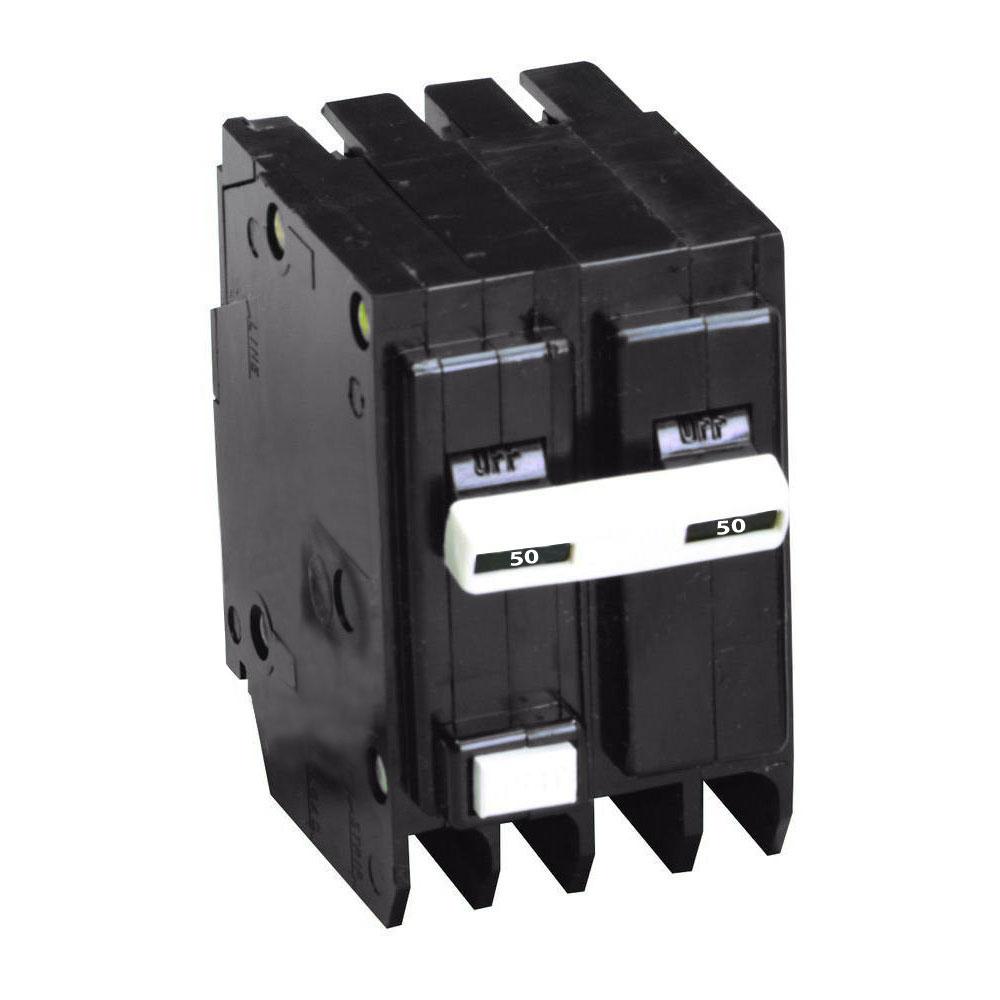

GFTCB250 - Cutler Hammer 50 Amp 2 Pole 120/240V Ground Fault Circuit Breaker Plug-On BR Frame

GFTCB250

GFTCB250 is a Cutler Hammer 2 pole ground fault circuit breaker rated for 50 amps and 120/240 volts AC with plug-on mounting for BR load centers.This molded case circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions, a 10kA interrupting rating at 240V, and is UL listed for safety. It supports wire sizes from AWG 14 to AWG 4 and is designed for single-phase applications requiring ground fault personnel protection.

• Amperage: 50 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 240 V
• Frame Type: BR
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Connection Type: Plug-In
• Wire Gauge: AWG 14 to AWG 4
• Certifications: UL 943, UL 489
• Dimensions: 4.5" L x 2.75" W x 2" H
• Phase: Single-phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GFTCB250
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : GF Series
• Type : GFTCB
• Voltage : 240 AC
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 4 AWG
• Breaker Type : GFTCB
• Configuration : Single
• Protection : Thermal Magnetic

Product Data

• UPC : 786676025997
• GTIN : 00786676025997
• Country of Origin : Mexico
• Dimensions : 4.5 in x 2 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 0.7 lb
• Standards : UL 943
• Certification : UL listed
• Wire Size : AWG 14 to AWG 4
