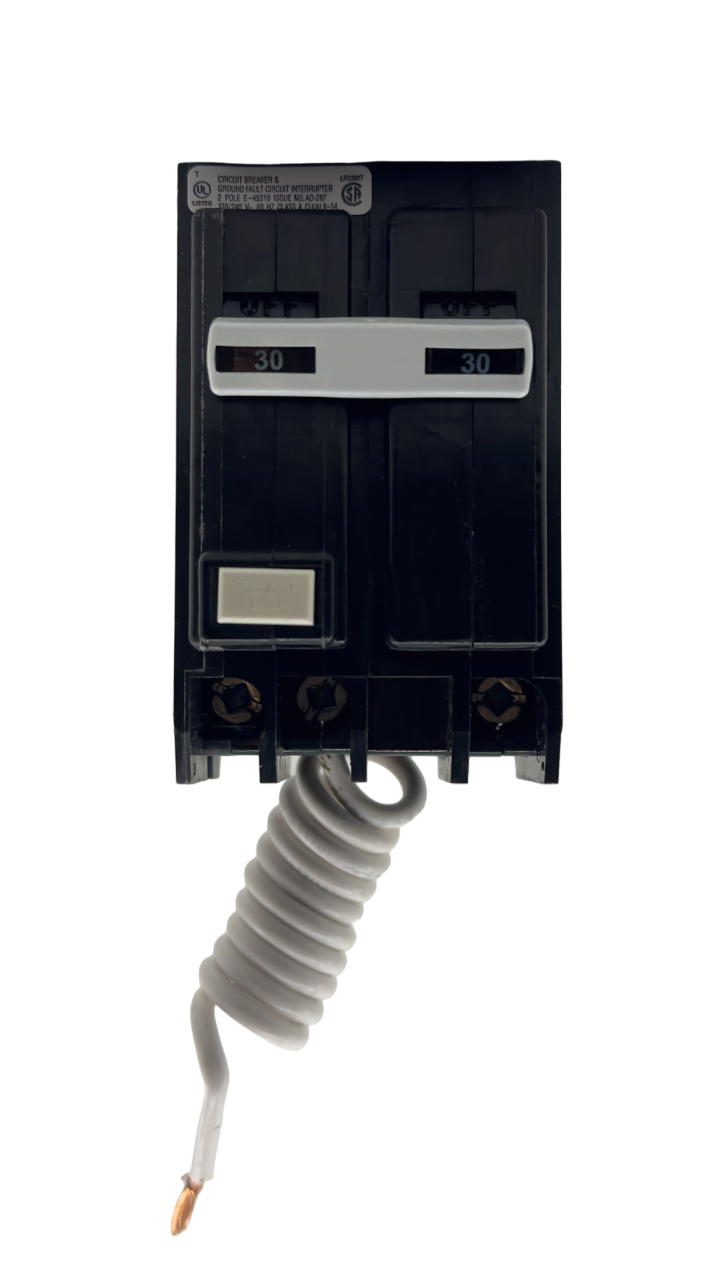

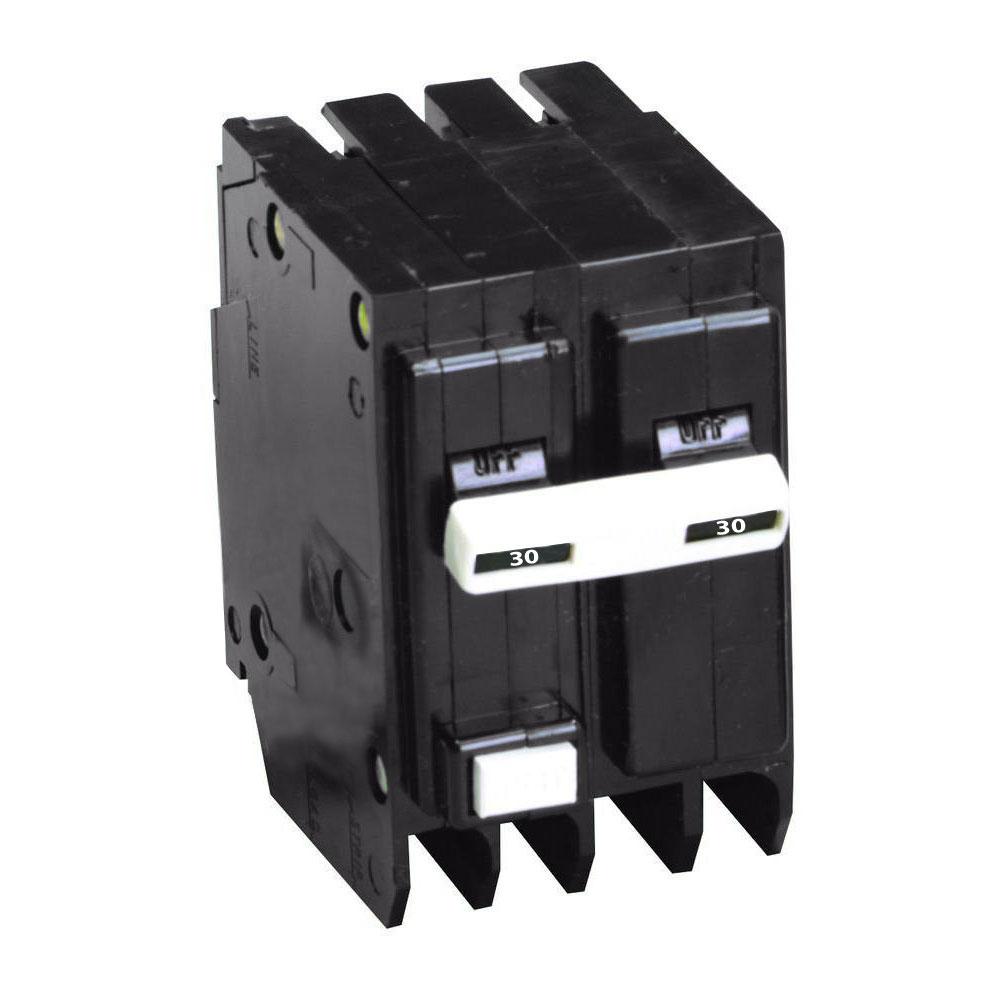

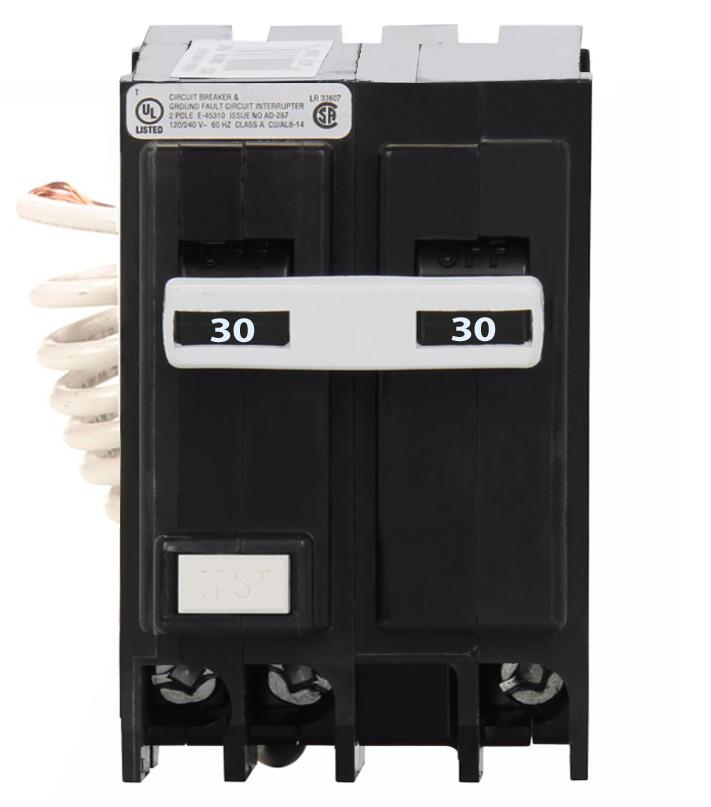

GFTCB230 - Cutler Hammer 30A 2-Pole Ground Fault Circuit Breaker 120/240V Plug-In BR Frame

GFTCB230

GFTCB230 is an Eaton BR ground fault circuit interrupter (GFCI) breaker designed to provide personnel protection in residential and commercial applications. This 30-amp, 2-pole breaker operates at 120/240 volts and features a plug-in connection type for easy installation in BR load centers. The breaker includes long-time and instantaneous trip functions with a 5 mA trip sensitivity, delivering reliable ground fault detection and protection in areas where electricity may contact water, such as kitchens, bathrooms, and outdoor receptacles.

• Amperage Rating: 30 A
• Voltage Rating: 120/240 V
• Number of Poles: 2
• Frame Type: BR
• Connection Type: Plug-In
• Interrupt Rating: 10 kAIC at 240V
• Wire Size: #14-4 AWG
• Trip Type: Common
• Circuit Protection: Ground Fault Circuit Interrupter
• Certifications: UL 943, UL 489
• Warranty: 10 years
• Meets Federal Spec Classification W-C375

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GFTCB230
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : GF Series
• Type : GFTCB
• Voltage : 240 AC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 4 AWG
• Breaker Type : GFTCB
• Configuration : Single
• Protection : Thermal Magnetic

Product Data

• UPC : 786676025980
• GTIN : 00786676025980
• Country of Origin : Mexico
• Dimensions : 4.5 in x 2 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 0.7
• Standards : UL 943
• Certification : UL listed
• Wire Size : AWG 14 to AWG 4
