Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
GD3060KC

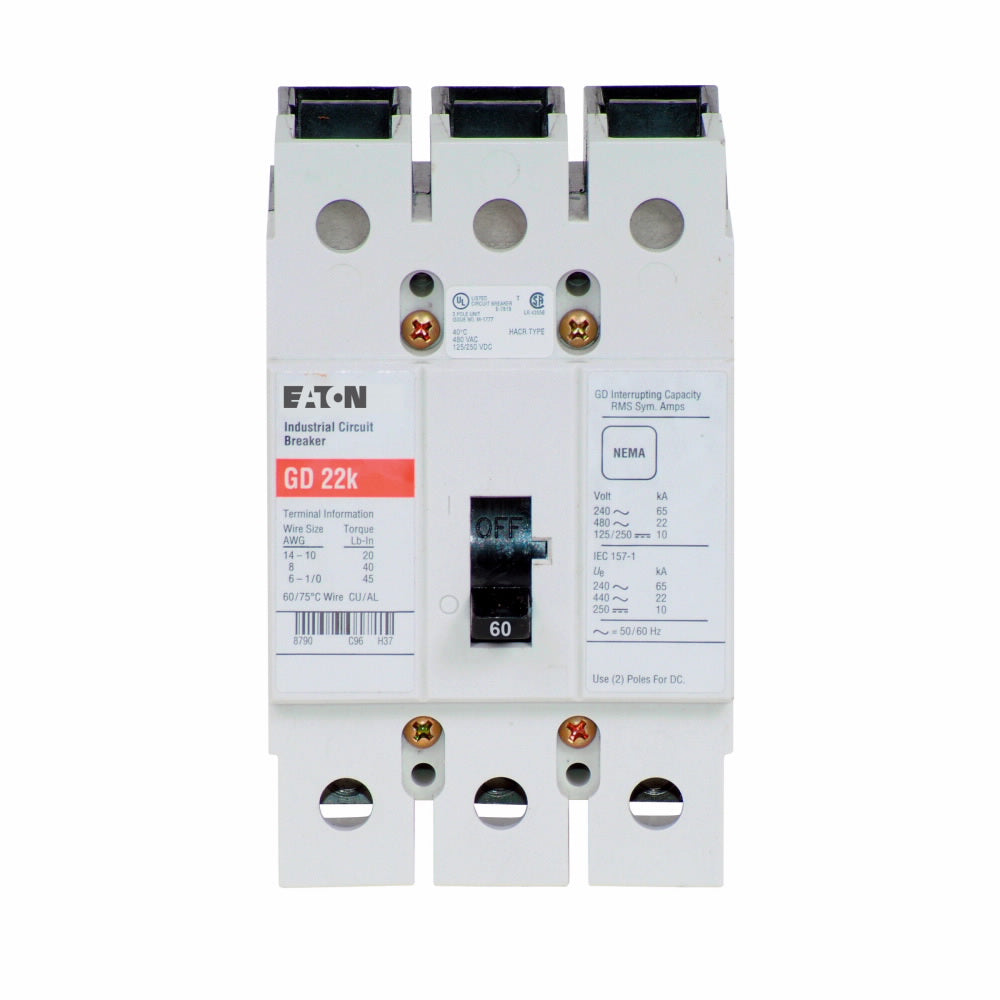

GD3060KC is an Eaton Series C molded case switch featuring a G-frame design with fixed thermal and fixed magnetic trip protection for three-pole applications. This complete molded case switch is rated for 60 amperes at 480 Vac and 125/250 Vdc, delivering reliable overcurrent protection in industrial and commercial power distribution systems. The GD3060KC combines compact construction with high interrupt capacity, making it suitable for motor control, feeder protection, and branch circuit applications where dependable switching and protection are essential.
- Amperage Rating: 60 A
- Voltage Rating: 480 Vac, 125/250 Vdc
- Number of Poles: Three-pole
- Circuit Breaker Type: GD Molded case switch
- Frame Size: G-frame
- Series: Series C
- Trip Type: Fixed thermal, fixed magnetic
- Interrupt Rating: 65 kAIC at 240 Vac, 22 kAIC at 480 Vac
- Frequency Rating: 50/60 Hz
- Certifications: UL Listed
Specifications
- Part Number: GD3060KC
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GD
- Voltage : 480
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : NA - No Overcurrent Protection
- Frame Size : G Frame
- Protection : Non-Automatic
Product Data
- UPC : 782113503240
- GTIN : 00782113503240
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 2.19
- Certification : UL Listed
