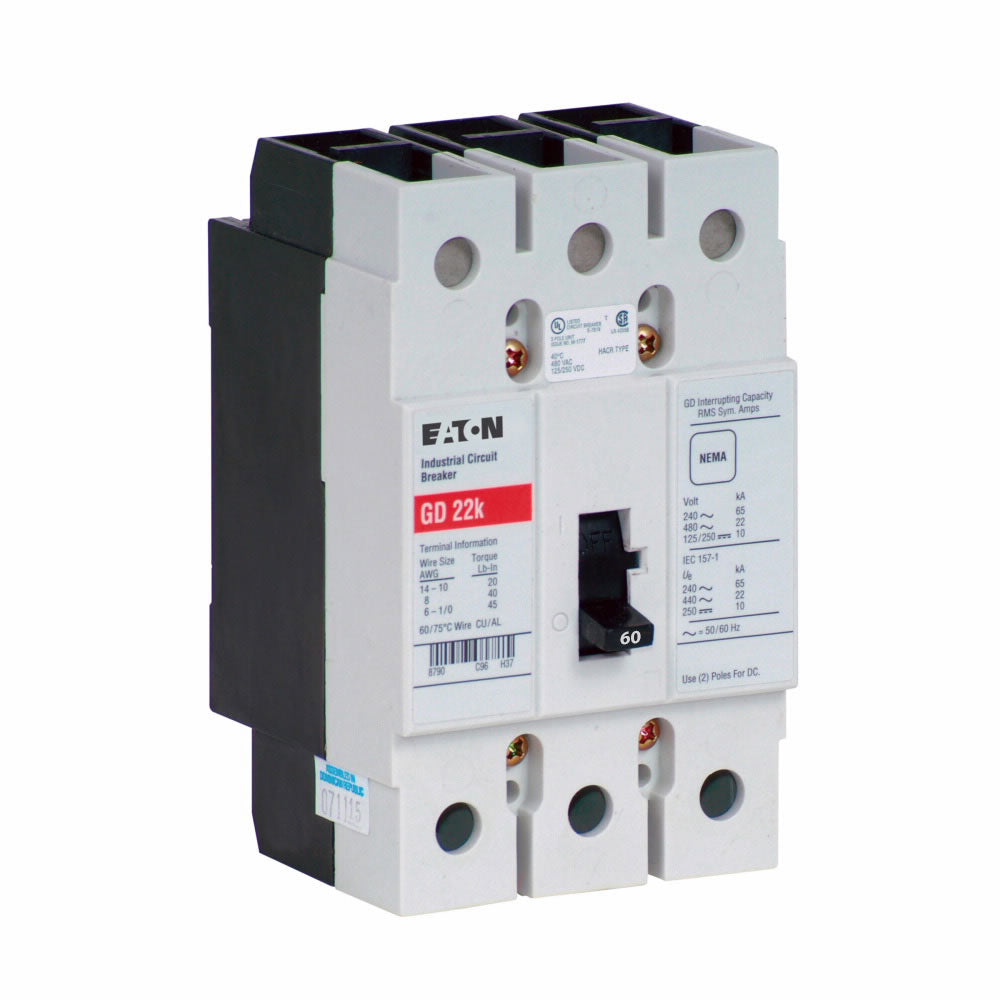

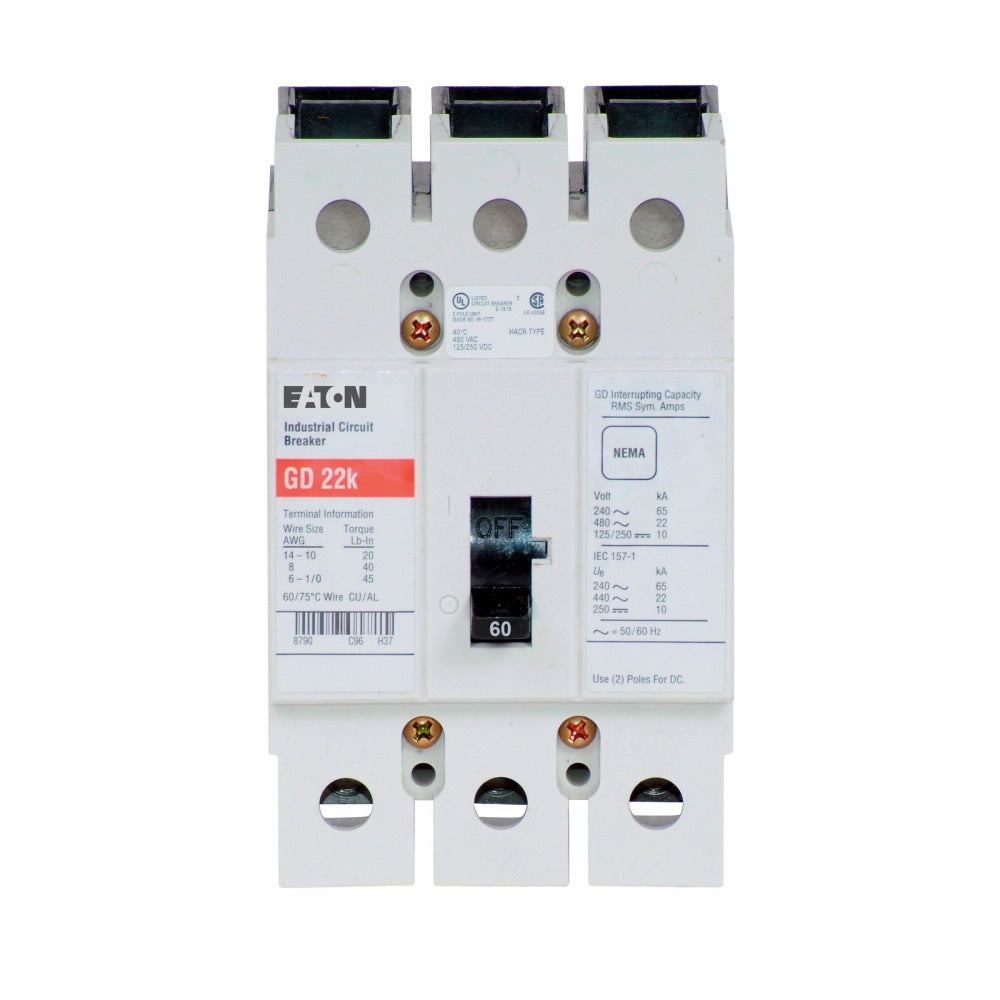

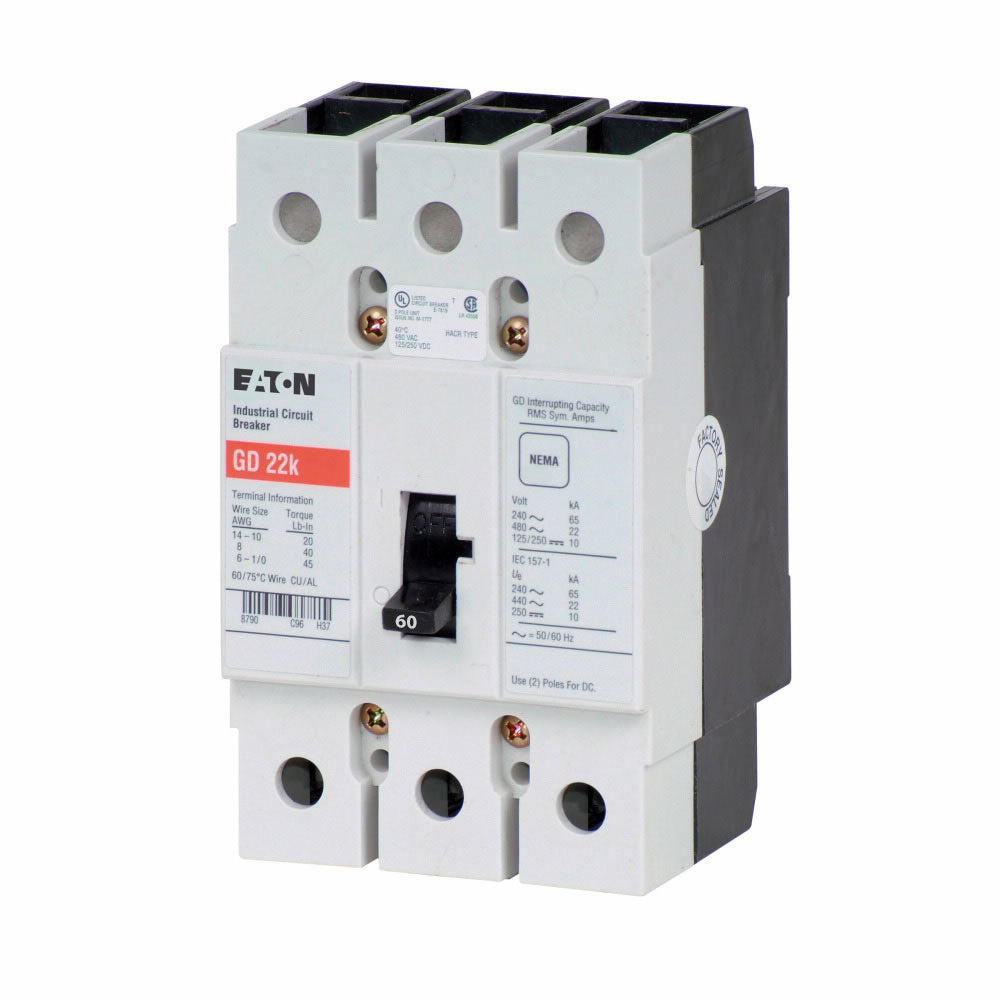

GD3060 - Eaton 60 Amp 480 Volt 3 Pole Molded Case Circuit Breaker Series GD Frame G

GD3060

GD3060 is a 60 Amp, 3 Pole molded case circuit breaker from Eaton's Series GD, designed for 480 Volt applications.This Eaton GD3060 circuit breaker features a fixed thermal and magnetic trip unit with long-time and instantaneous trip functions. It is a 3-pole, 60 Amp breaker with a 480 Vac voltage rating and a 22 kA interrupt rating at 480 Vac, suitable for three-phase power systems. The breaker has a G-frame type and includes line and load side lug terminals for feed-thru mounting. It is UL Listed and designed for reliable protection in industrial and commercial electrical distribution.

• Manufacturer: Eaton
• Part Number: GD3060
• Amperage: 60A
• Voltage: 480 Vac, 125/250 Vdc
• Poles: 3
• Frame Type: G-frame, Series GD
• Trip Unit: Fixed thermal magnetic (LI - Long-Time and Instantaneous)
• Interrupt Rating: 22 kA at 480 Vac, 65 kA at 240 Vac
• Mounting Type: Feed-Thru
• Phase: 3
• Certifications: UL Listed
• Dimensions: 4.88" H x 3" W x 2.63" D
• Weight: 2 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GD3060
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GD
• Voltage : 480
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 22kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : G Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679231166
• GTIN : 00786679231166
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : UL Listed
