Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63B250L

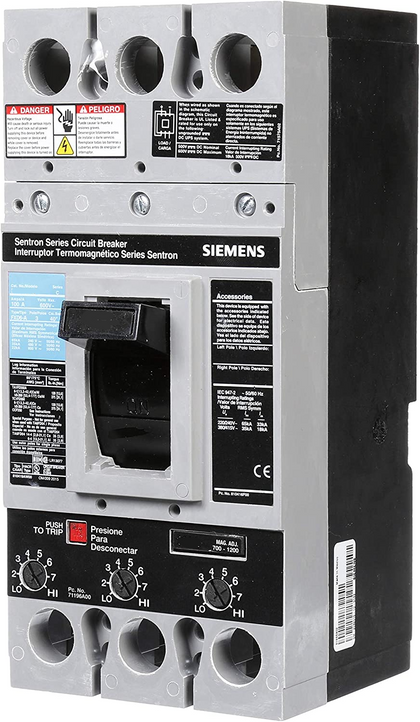

FXD63B250L is a Siemens Sentron low voltage molded case circuit breaker designed for commercial and industrial electrical distribution applications requiring reliable overcurrent protection.Technical Overview
The FXD63B250L features a thermal-magnetic trip unit that provides precise protection against overloads and short circuits. This 3-pole breaker is rated for 250 amperes at 600 VAC and delivers an interrupting capacity of 22 kA at 600V, 35 kA at 480V, and 65 kA at 240V. The breaker meets UL 489 and IEC 60947-2 standards and includes line and load-side terminals suitable for reverse fed applications.
-
Key Specifications
- Part Number: FXD63B250L
- Manufacturer: Siemens
- Frame Type: FXD6 (FD Frame)
- Rated Current: 250 Amperes
- Voltage Rating: 600 VAC at 50/60 Hz
- Poles: 3
- Trip Unit: Thermal-Magnetic
- Interrupting Rating: 22 kA at 600V, 35 kA at 480V, 65 kA at 240V
- Dimensions: 4.5 inches W x 9.5 inches H x 4.0 inches D
- Wire Range: 6 AWG to 350 KCM (Copper) / 4 AWG to 350 KCM (Aluminum)
- Temperature Rating: 40 degrees C
- Certifications: UL 489, IEC 60947-2, HACR Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Line and load side lugs included (TA1FD350A)
Specifications
- Part Number: FXD63B250L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643006126
- GTIN : 00783643006126
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 9.248
- Certification : UL, CSA, IEC
- Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
