Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63B100L

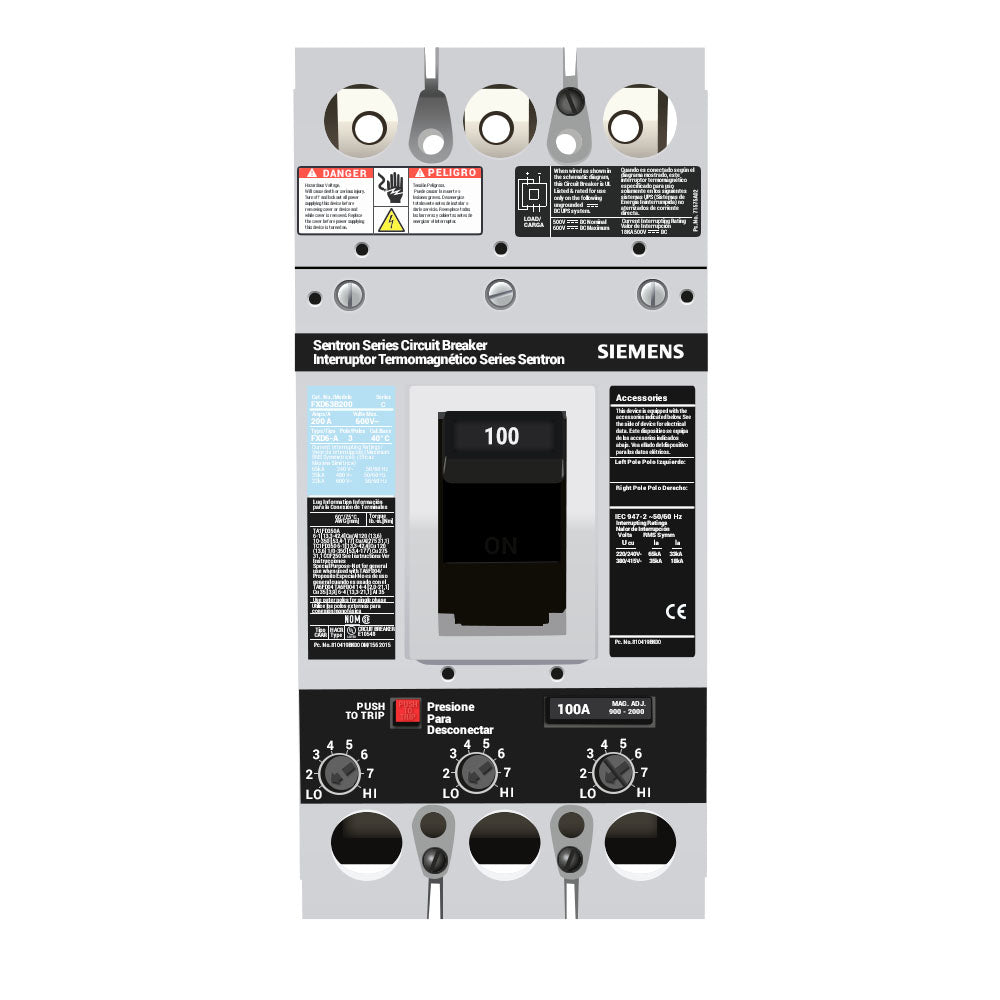

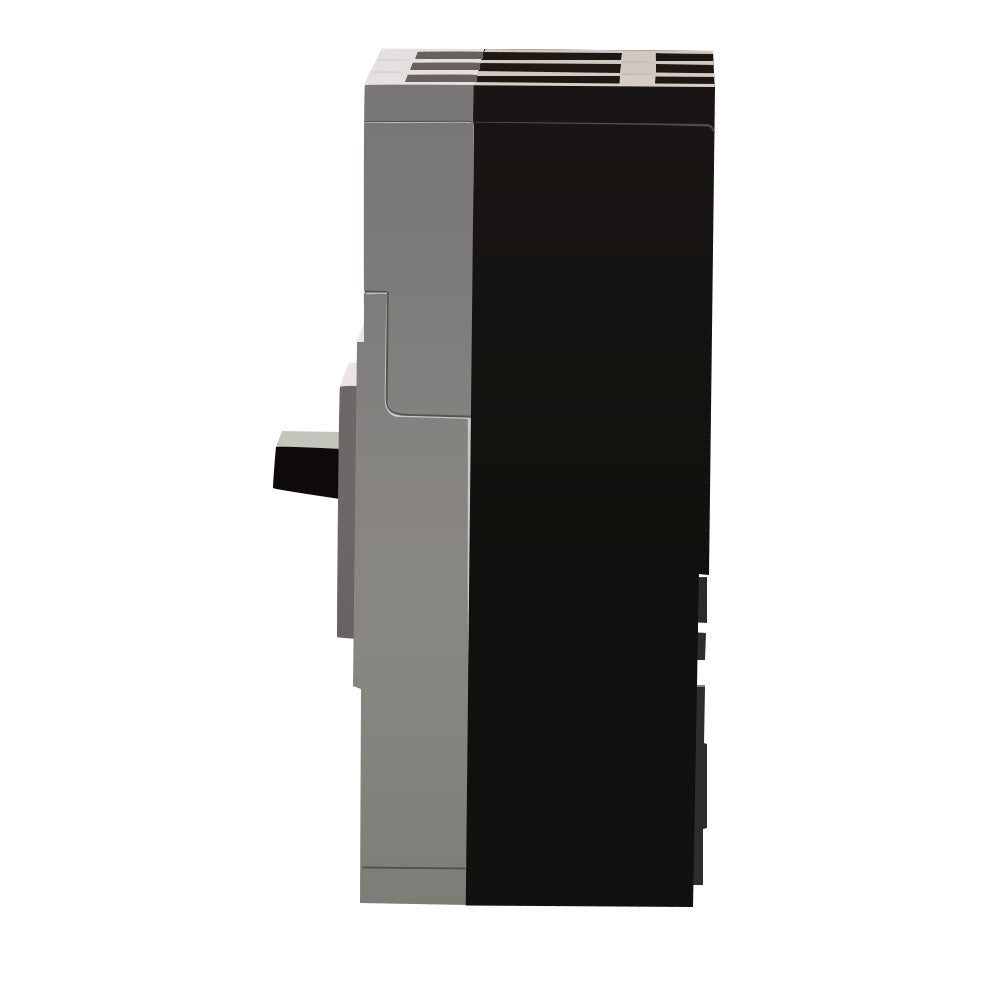

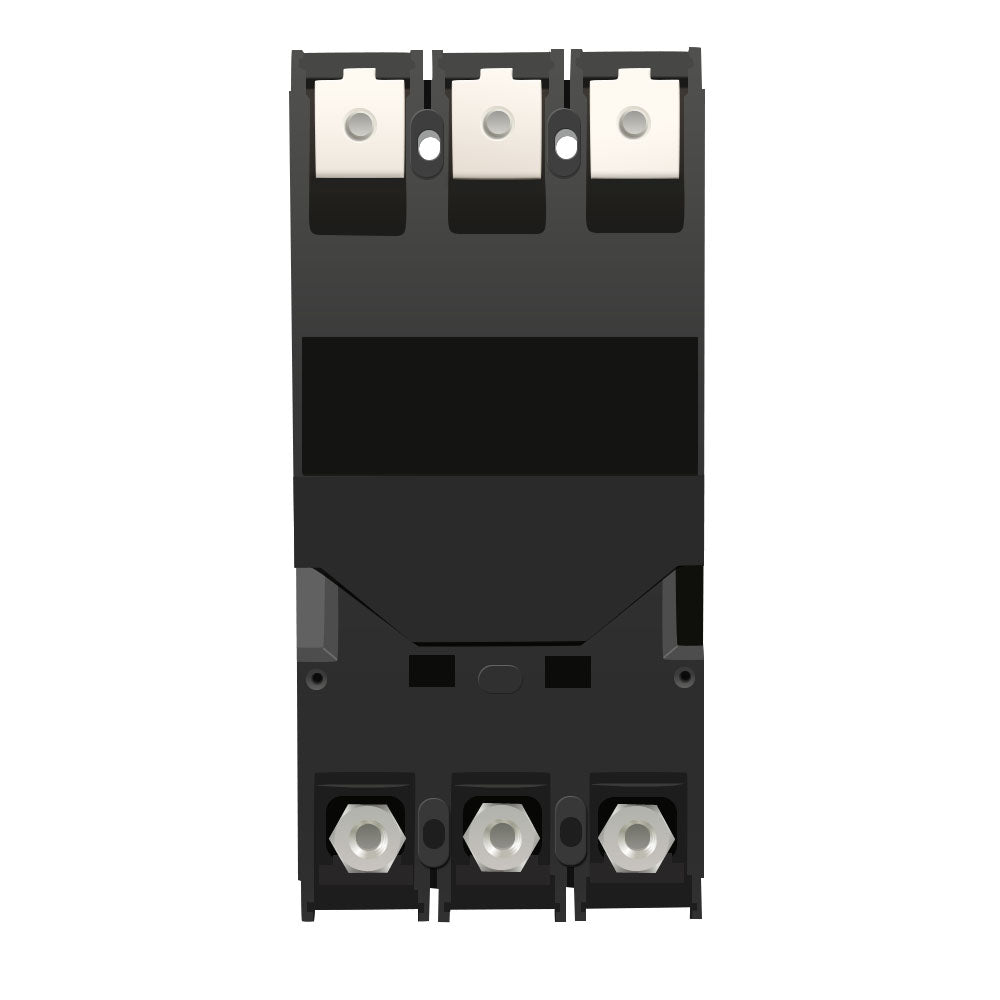

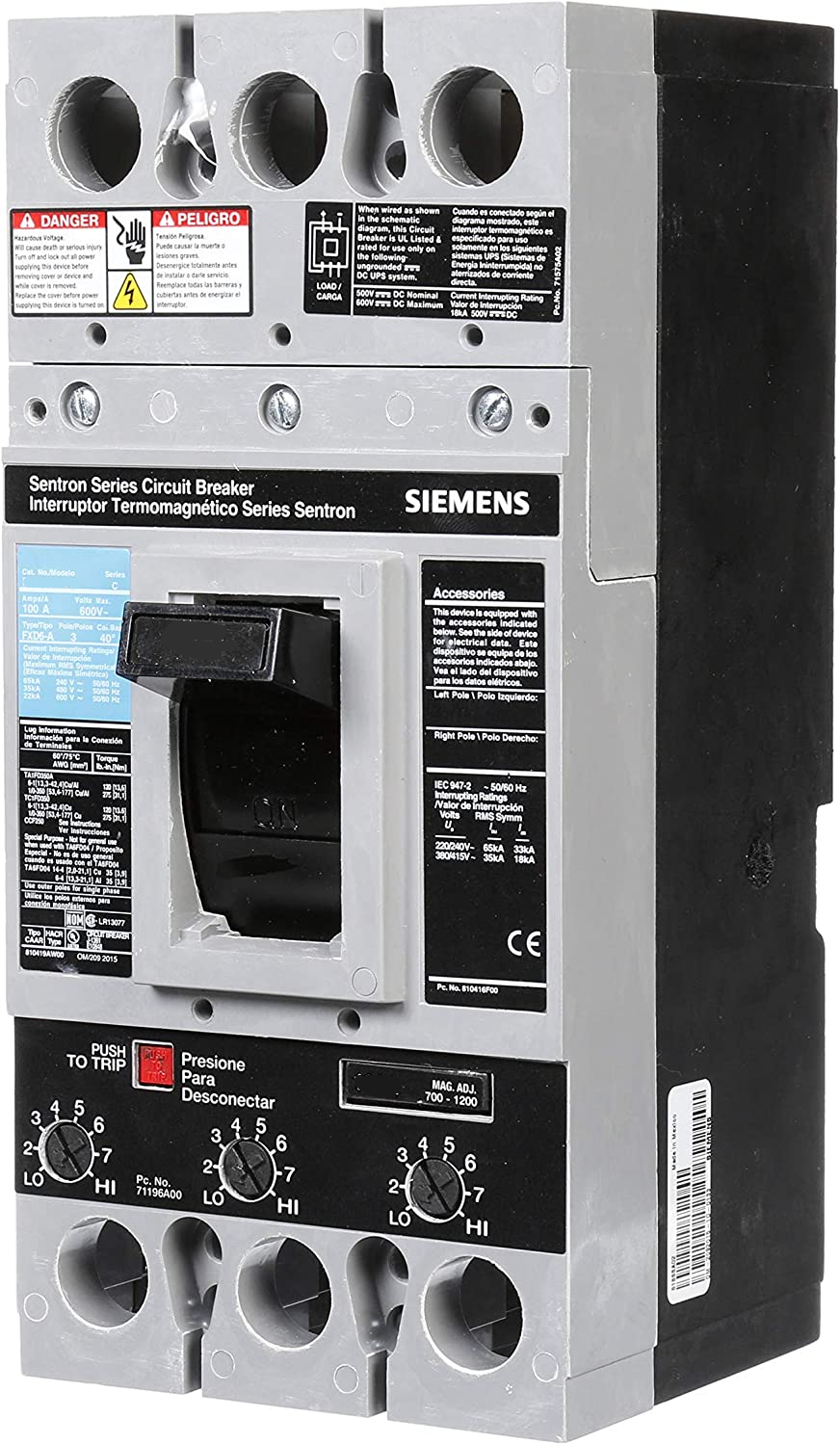

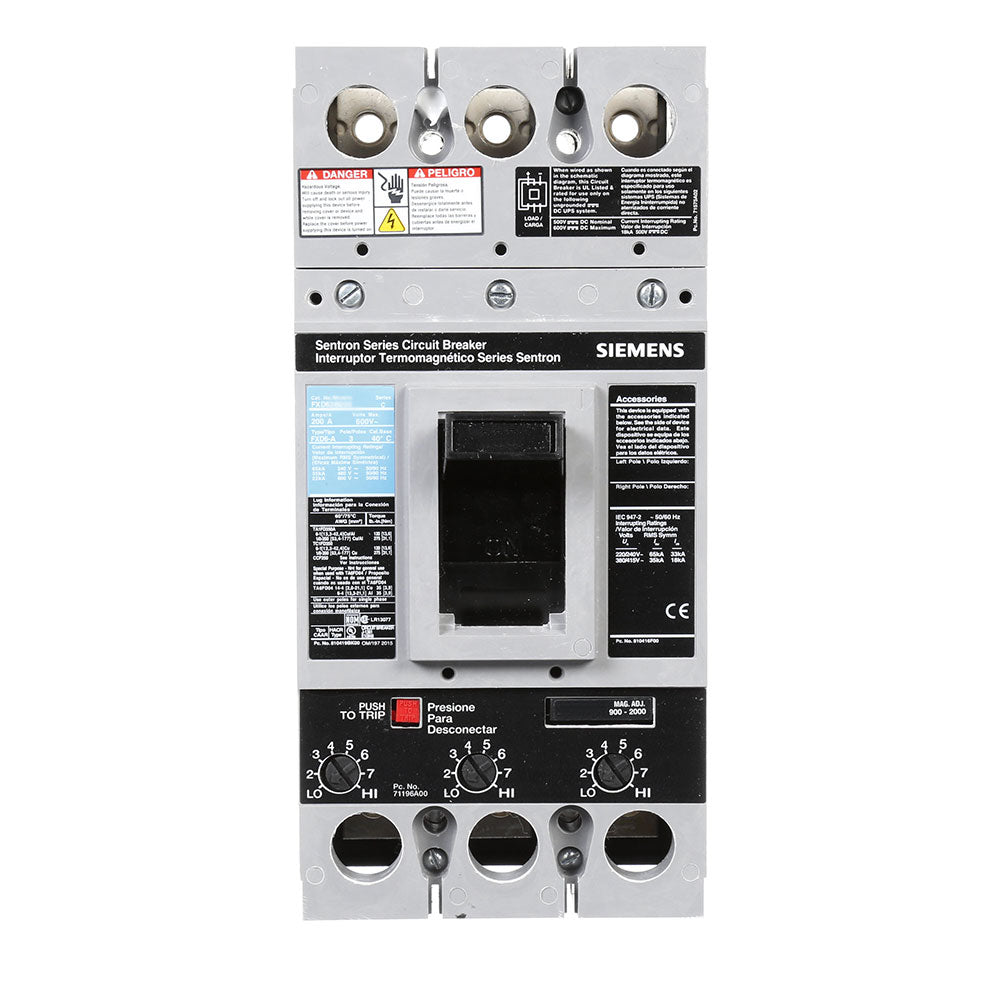

FXD63B100L is a Siemens 3-pole molded case circuit breaker rated at 100A and 600V. This FXD frame thermal-magnetic breaker features standard breaking capacity of 22kAIC at 600V and 35kAIC at 480V, with bolt-on mounting and non-interchangeable trip unit for reliable overcurrent protection in industrial applications.
- Part Number: FXD63B100L
- Manufacturer: Siemens
- Frame Type: FXD
- Poles: 3
- Amperage: 100A
- Voltage: 600V
- Trip Type: Thermal-Magnetic
- Mounting: Bolt-On
- Interrupt Rating: 22kAIC @ 600V, 35kAIC @ 480V
- Temperature Rating: 40C
Specifications
- Part Number: FXD63B100L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643005808
- GTIN : 00783643005808
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 10.031
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
- Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
