FXD63B090L - Siemens Sentron 3 Pole 90A 600V Molded Case Circuit Breaker

FXD63B090L

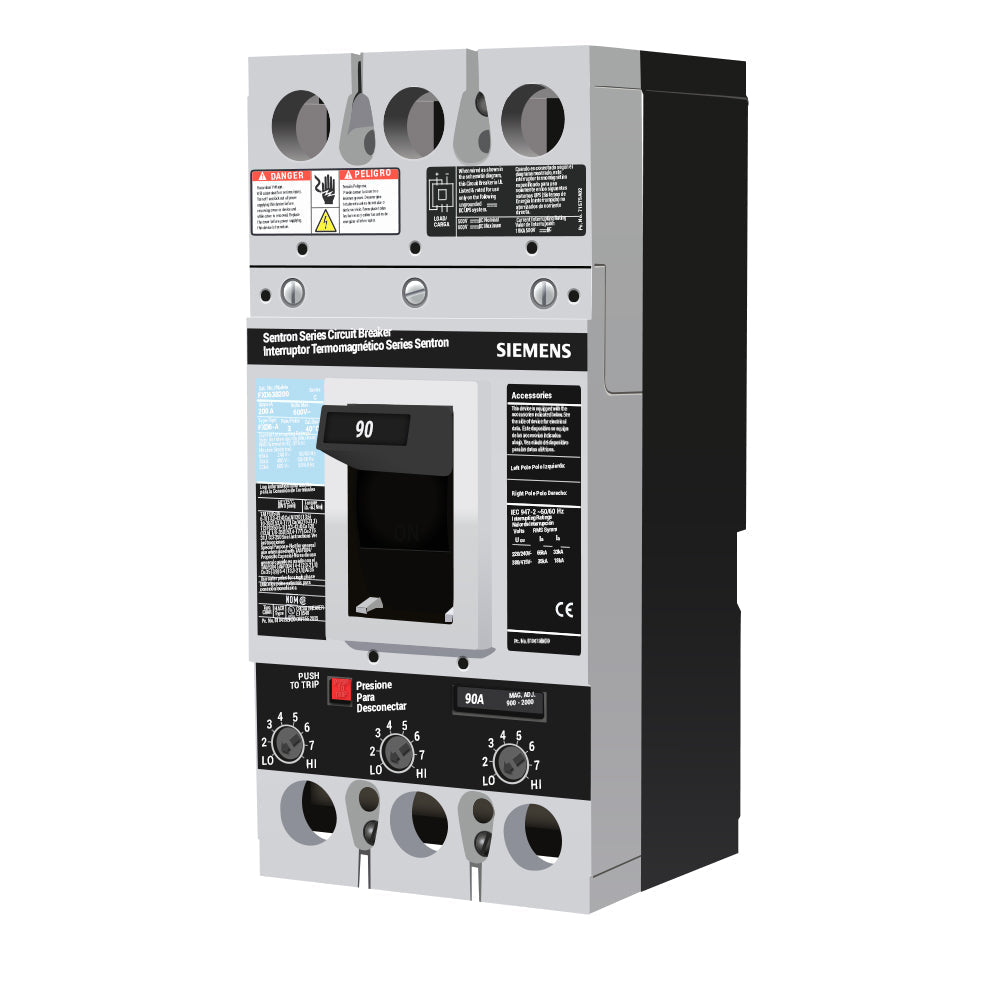

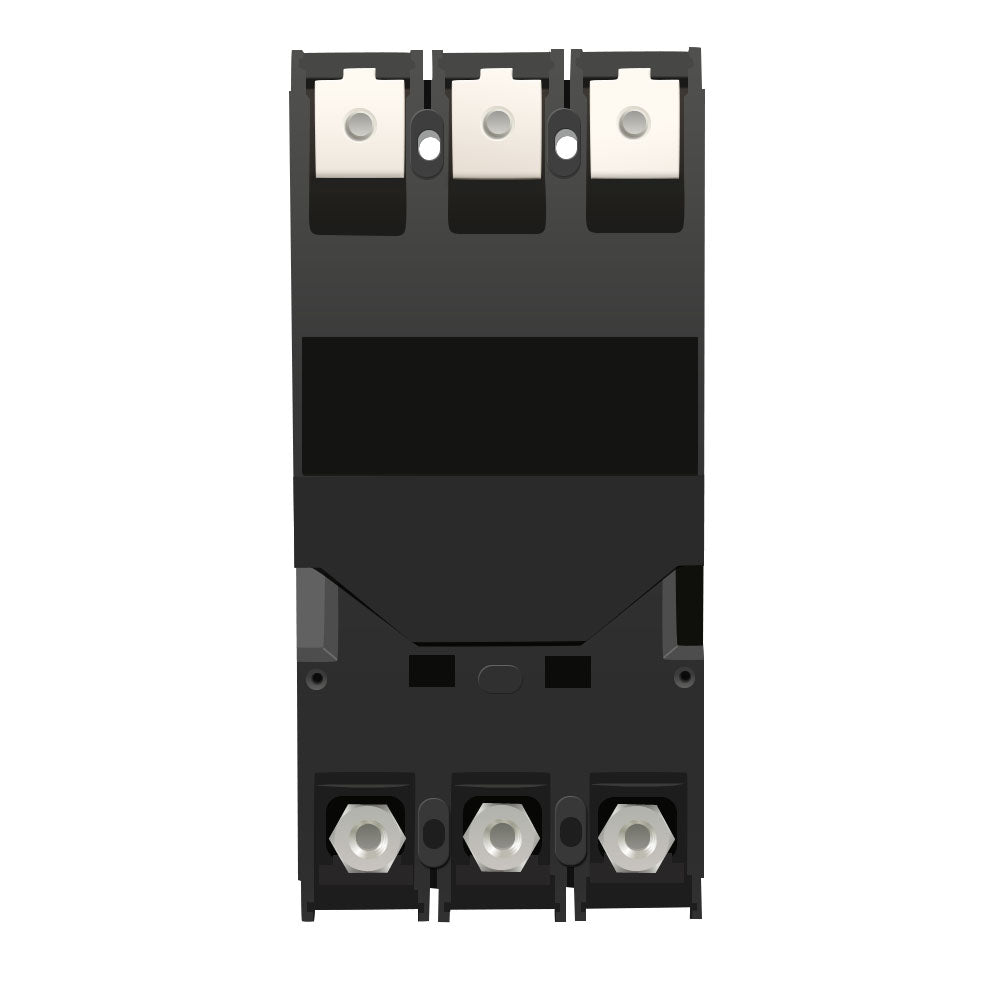

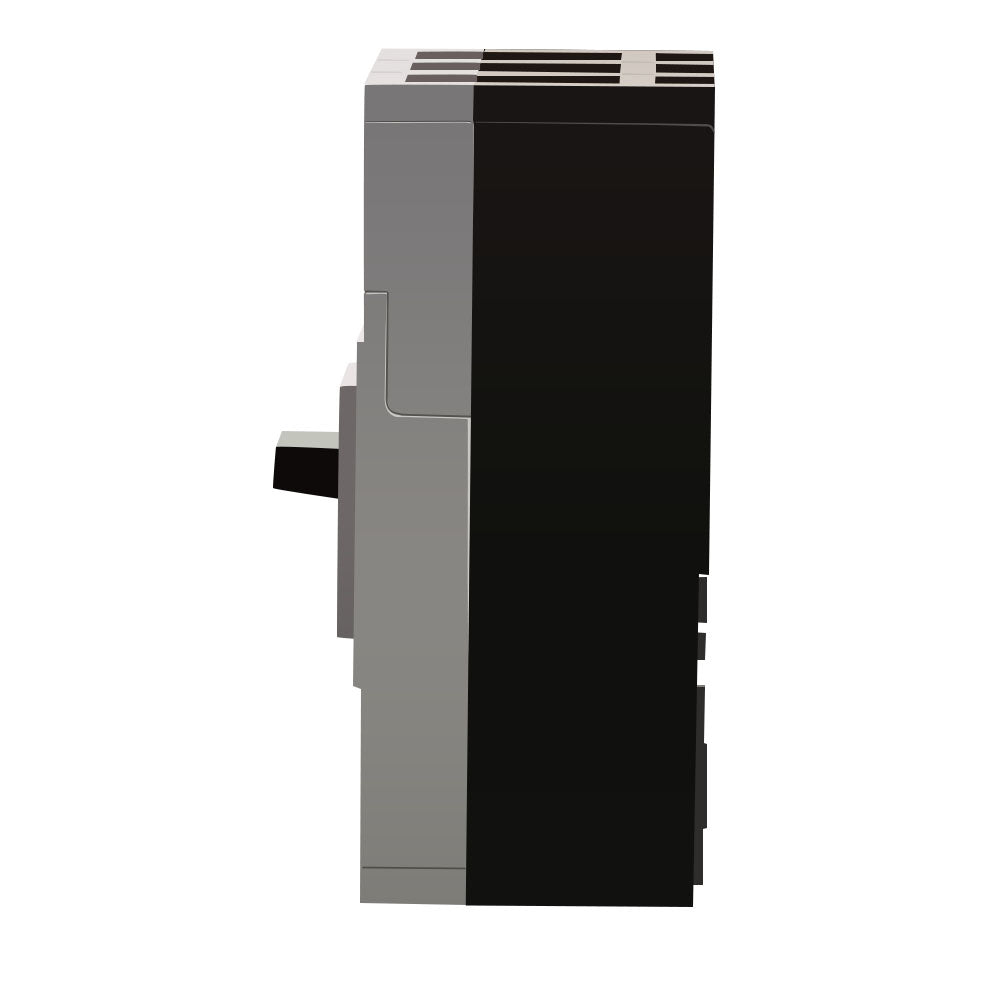

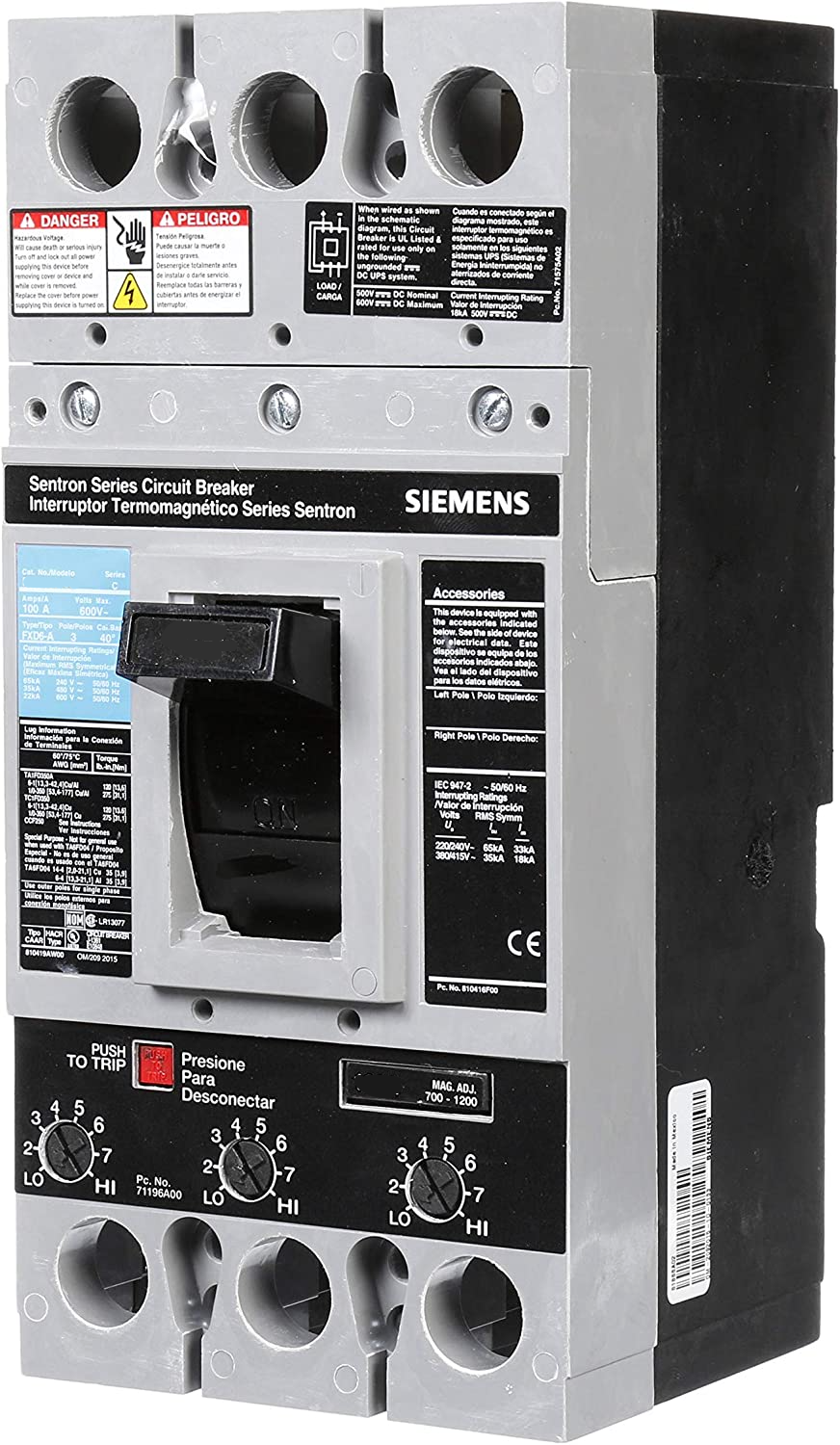

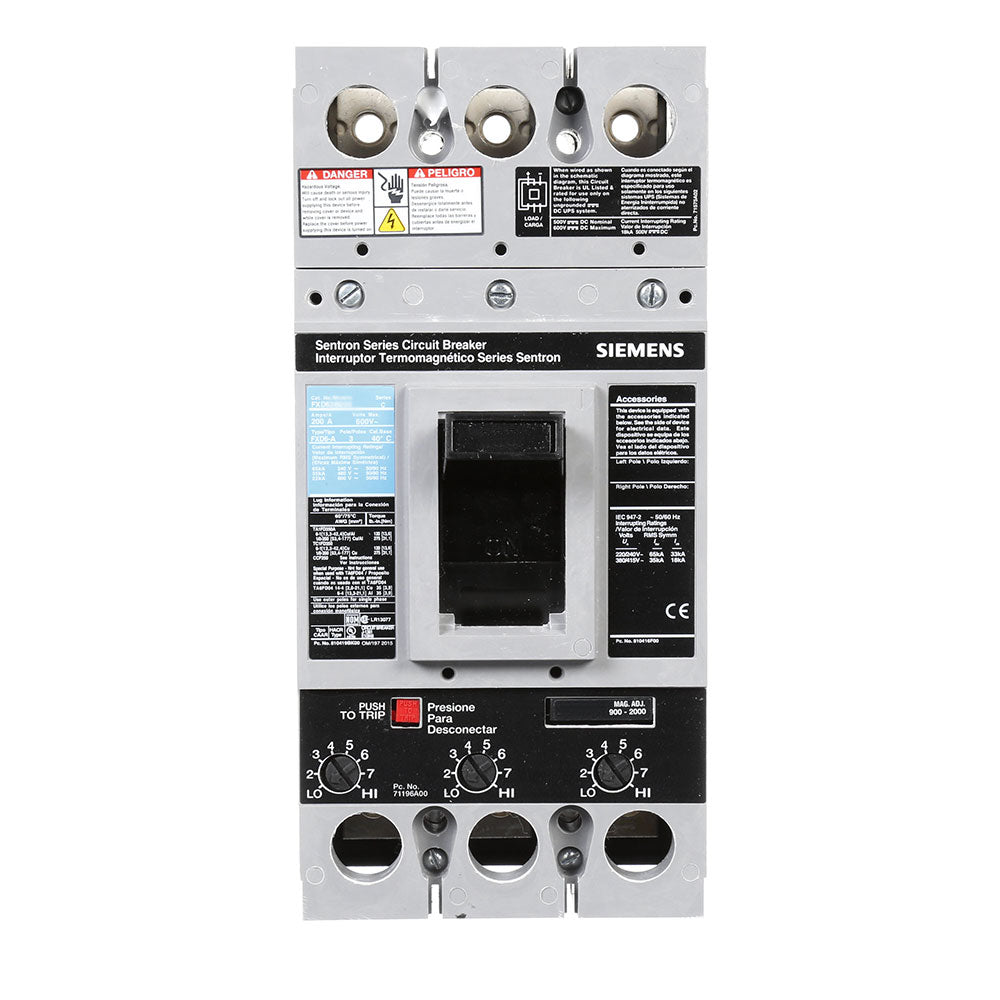

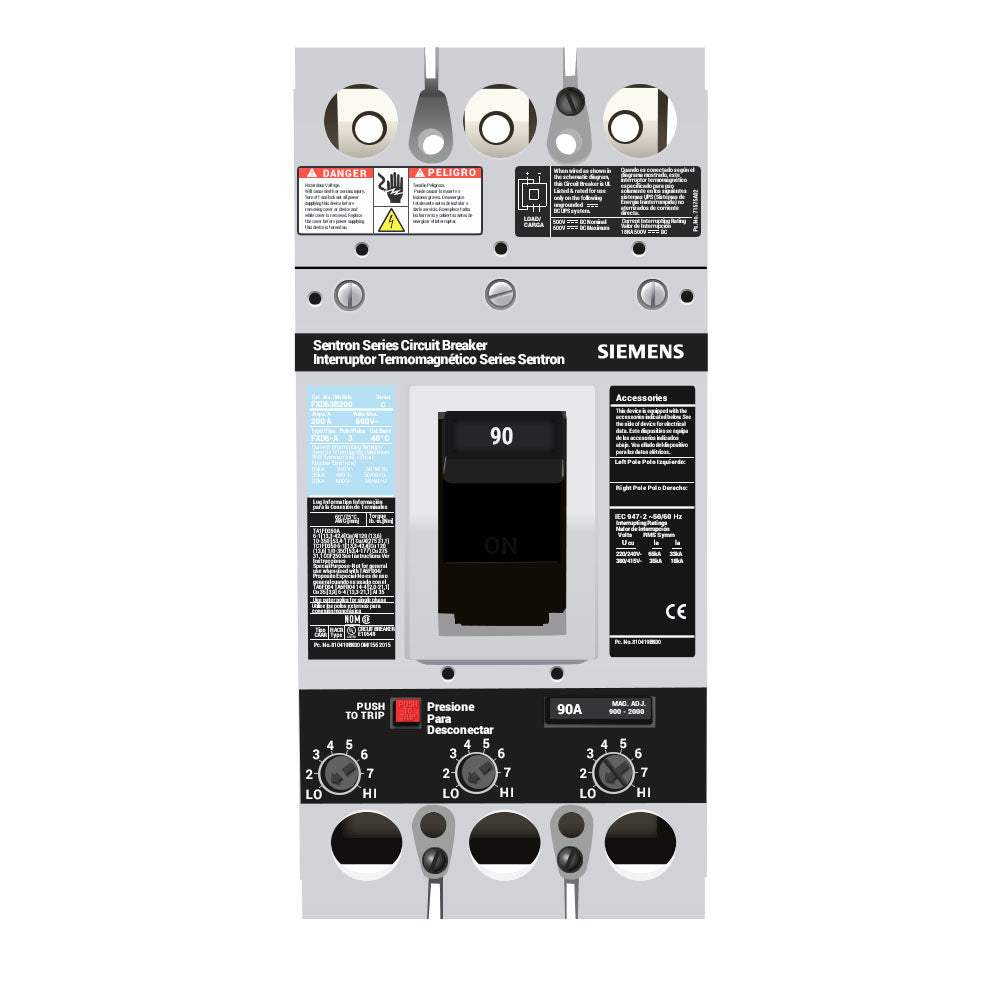

FXD63B090L is a 3 pole, 90 ampere, 600 volt molded case circuit breaker manufactured by Siemens in the Sentron series with FD frame design.

This thermal magnetic circuit breaker features a standard interrupting capacity of 22 kAIC at 600V and 35 kAIC at 480V. The breaker is rated for 40 degree C operation and includes a non-interchangeable trip unit. It is bolt-on mounted and UL listed for reverse fed applications, with 500 VDC rating and operation at 50/60 Hz.

• Manufacturer: Siemens
• Series: Sentron
• Frame: FD
• Poles: 3
• Amperage: 90A
• Voltage: 600 VAC
• Interrupt Rating: 22 kAIC at 600V, 35 kAIC at 480V
• Trip Unit: Non-interchangeable thermal magnetic
• Mounting: Bolt-on
• Temperature Rating: 40 degree C
• Certifications: UL listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: FXD63B090L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FXD
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643005792
• GTIN : 00783643005792
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
