Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63B070L

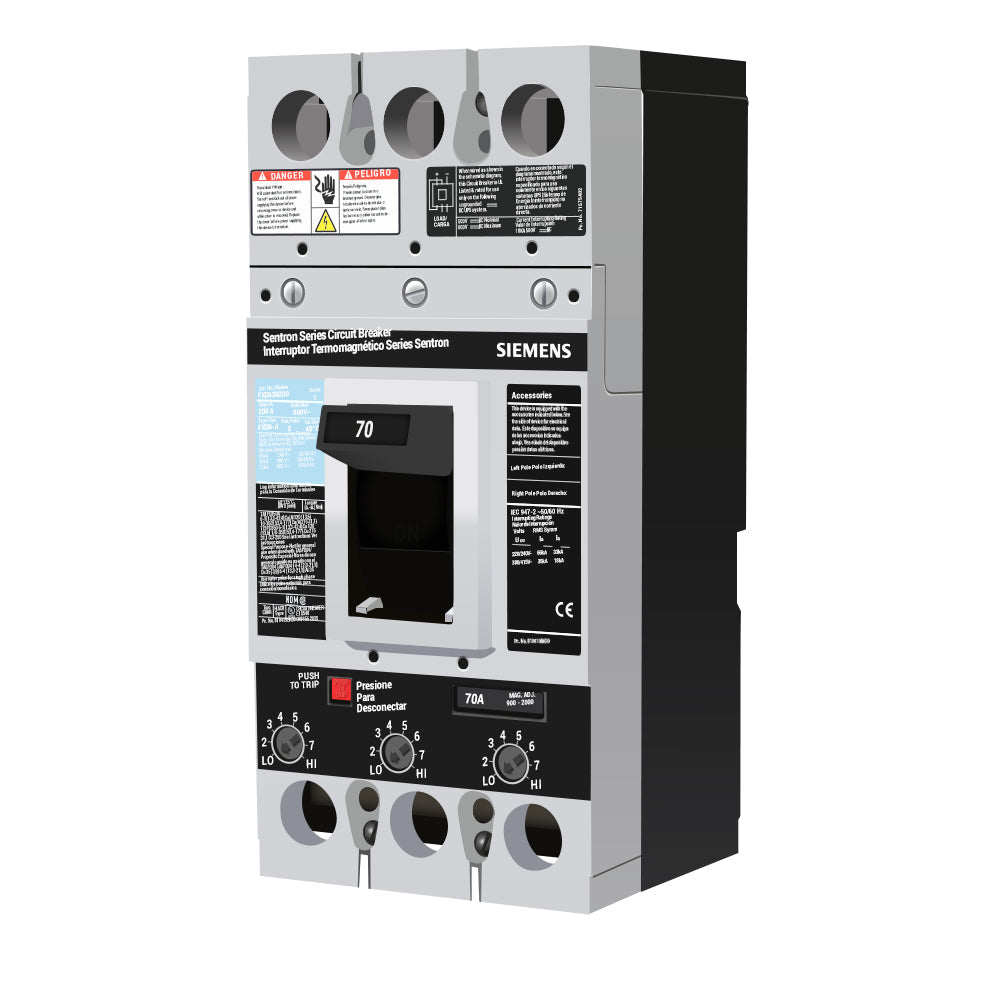

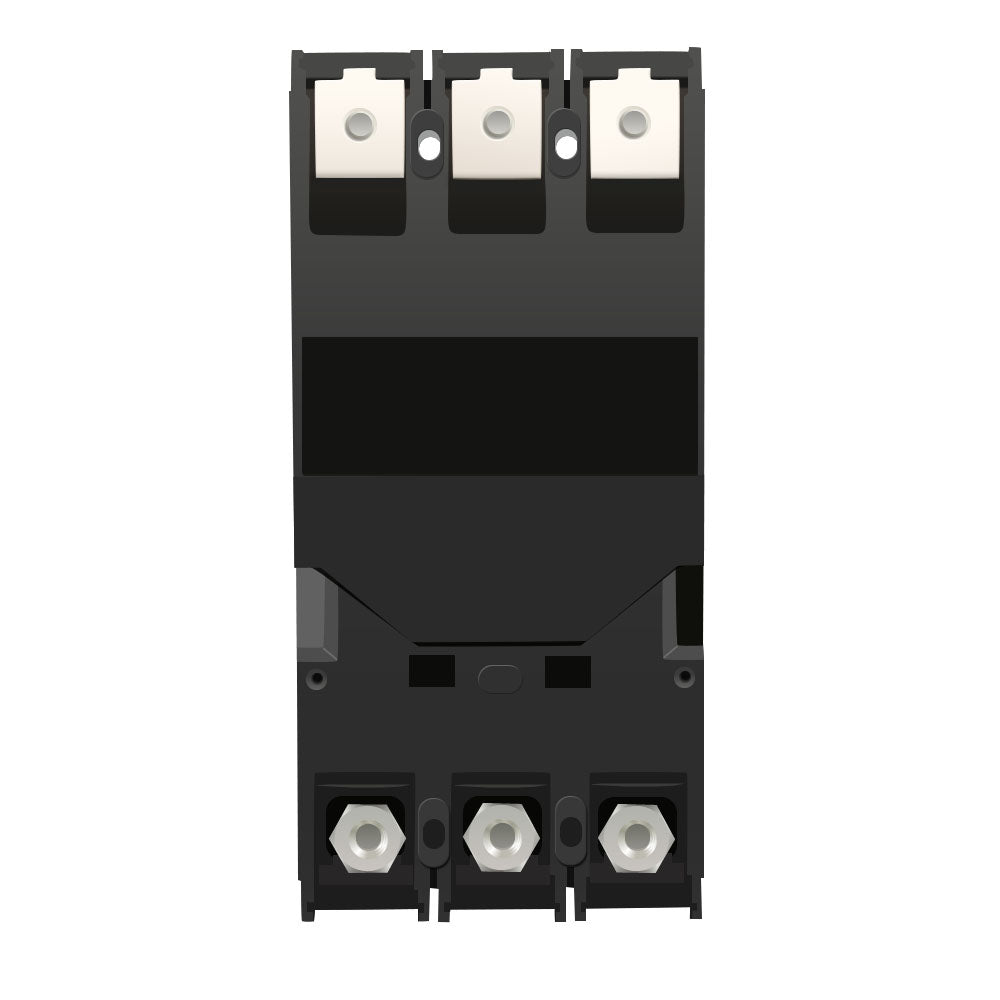

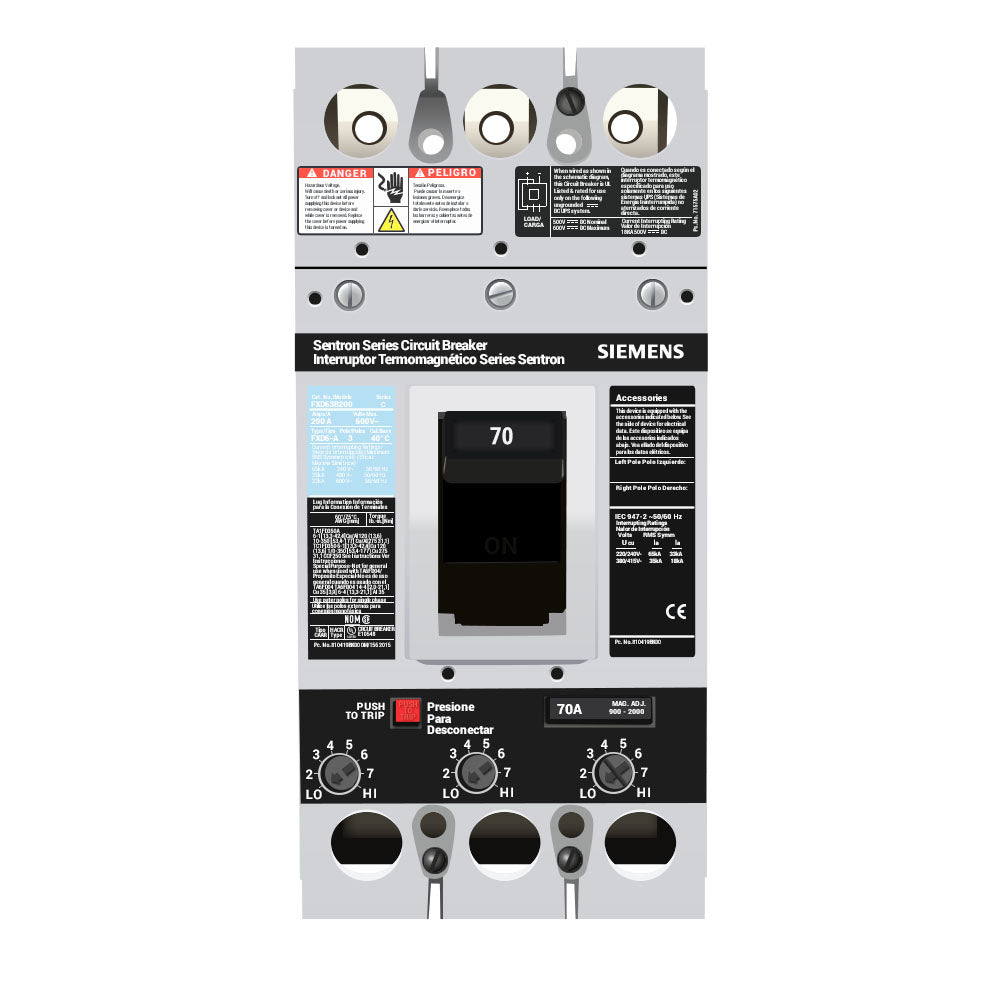

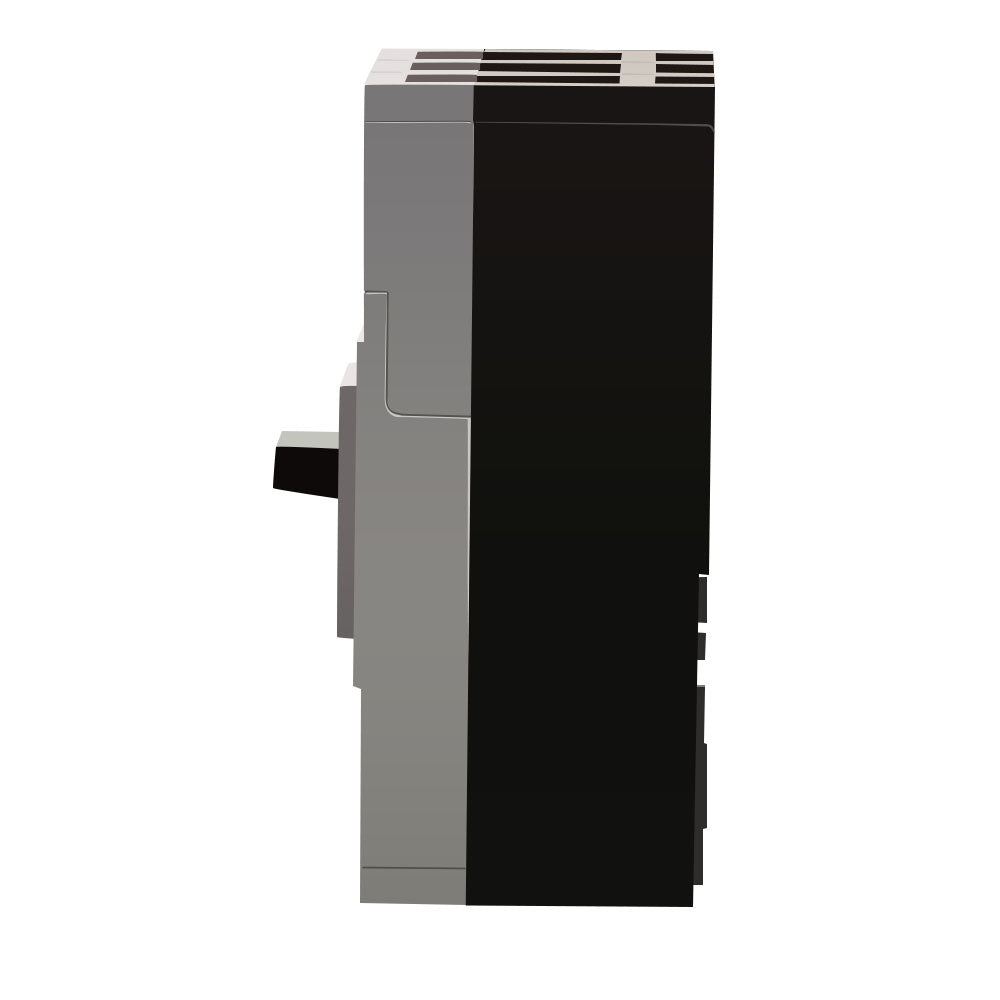

FXD63B070L is a Siemens Sentron Type FXD6 molded case circuit breaker designed for low voltage power distribution applications. This 3-pole breaker delivers reliable thermal magnetic trip protection at 600 VAC with a 70 ampere rating and meets UL 489 and IEC 60947-2 standards for industrial and commercial installations.Key Specifications
- Manufacturer: Siemens
- Amperage Rating: 70 A
- Voltage Rating: 600 VAC
- Poles: 3
- Series: Sentron FXD6
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC
- Frame Size: FD
- Termination: Lug (Included)
- Certifications: UL 489, IEC 60947-2
- Temperature Rating: 40 degrees C
- Trip Unit Type: Non-Interchangeable
Additional Information
Line and load side lugs included (TA1FD350A)
Specifications
- Part Number: FXD63B070L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643005778
- GTIN : 00783643005778
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.929
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
- Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
