Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD62B250L

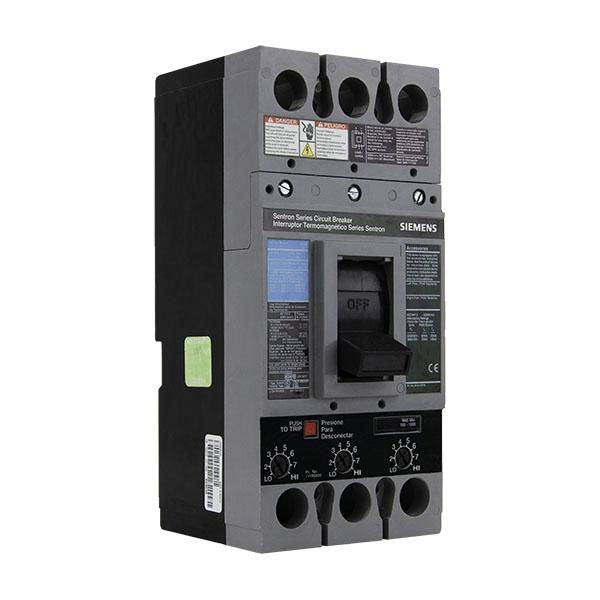

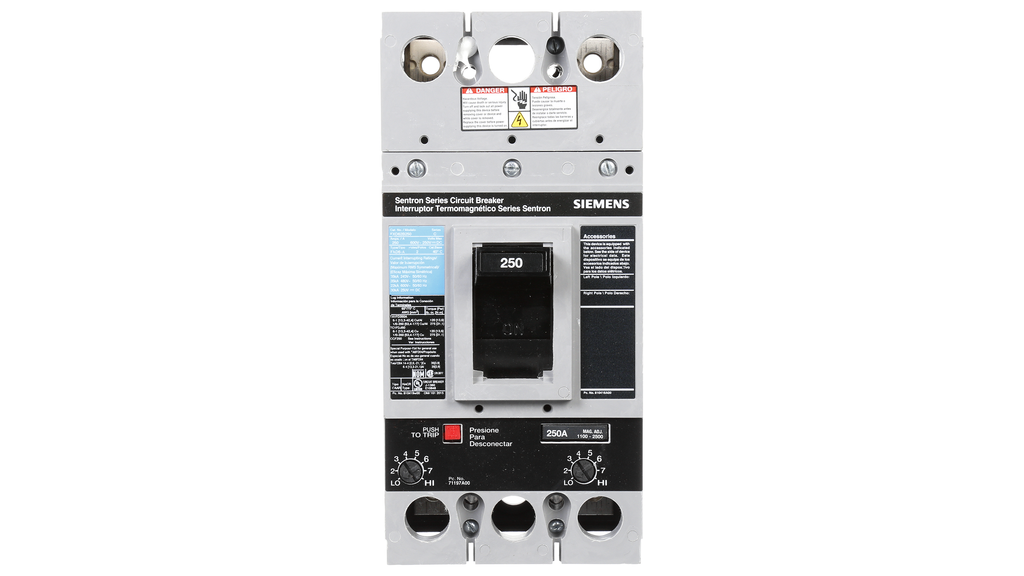

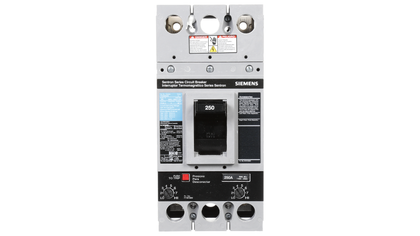

FXD62B250L is a Siemens 2 Pole 250 Amp 600V molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems.This Siemens FXD62B250L circuit breaker features a thermal magnetic trip unit and is built for high in-rush current capability, making it suitable for demanding applications. The breaker is designed for feed-thru mounting and includes a push-to-trip button for easy operation and testing.
- Part Number: FXD62B250L
- Manufacturer: Siemens
- Series/Frame: FXD
- Poles: 2
- Amperage: 250A
- Voltage Rating: 600V
- Mounting Type: Feed-Thru
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 100,000A (600V AC)
- Connection Type: Feed-Thru
- Push-to-Trip Button: Yes
- High In-Rush Current Capability: Yes
Specifications
- Part Number: FXD62B250L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643005624
- GTIN : 00783643005624
- Country of Origin : Mexico
- Weight : 8.62
- Certification : UL, CSA, IEC
