Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD62B090L

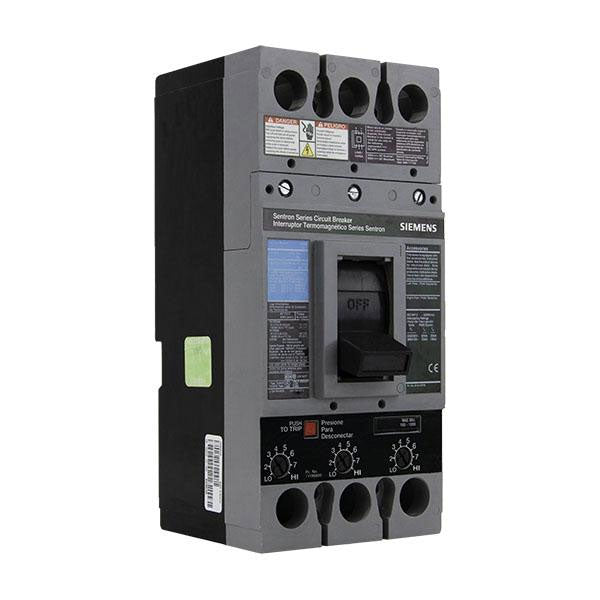

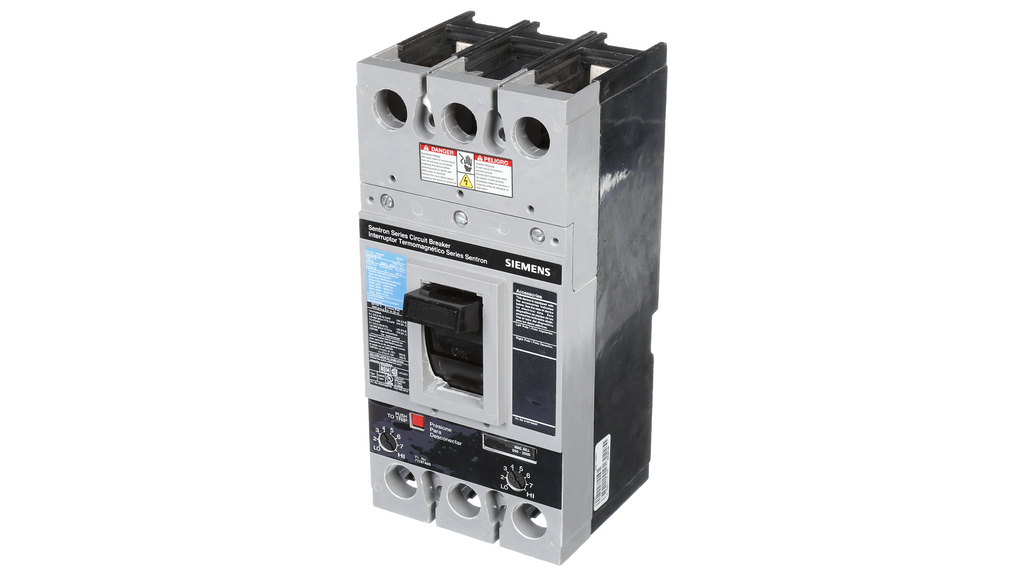

FXD62B090L is a 2 pole, 600 volt, 90 ampere rated molded case circuit breaker from Siemens Sentron Series with bolt-on mounting and thermal magnetic protection. This FXD-frame circuit breaker features long-time and instantaneous trip functions, delivering reliable overcurrent protection for industrial and commercial power distribution applications. The breaker is designed for use in panelboards and switchgear with a 35kA interrupt rating at 480V, providing dependable performance in demanding electrical systems.
- Manufacturer: Siemens
- Part Number: FXD62B090L
- Frame Type: FXD6
- Poles: 2
- Amperage: 90 Amps
- Voltage: 600VAC
- Mounting: Bolt-On
- Trip Unit: Long-Time and Instantaneous (LI)
- Interrupt Rating: 35kA at 480V
- Series: Sentron
- Breaker Type: Thermal Magnetic Molded Case
Specifications
- Part Number: FXD62B090L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643005549
- GTIN : 00783643005549
- Country of Origin : Mexico
- Dimensions : 10.63 x 5.906 x 6.693 inch
- Weight : 8.62
- Certification : UL, CSA, IEC
