Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD62B090

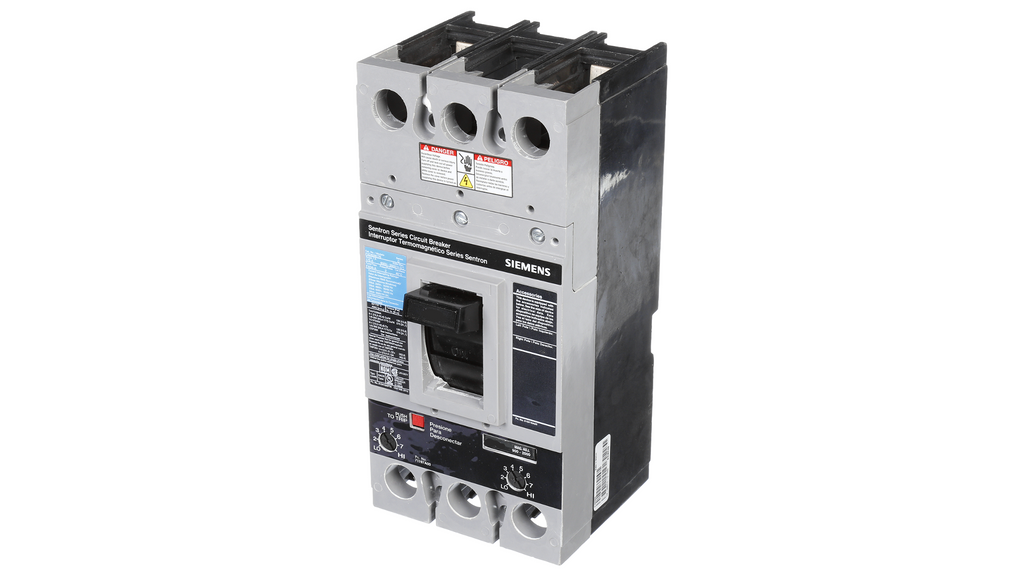

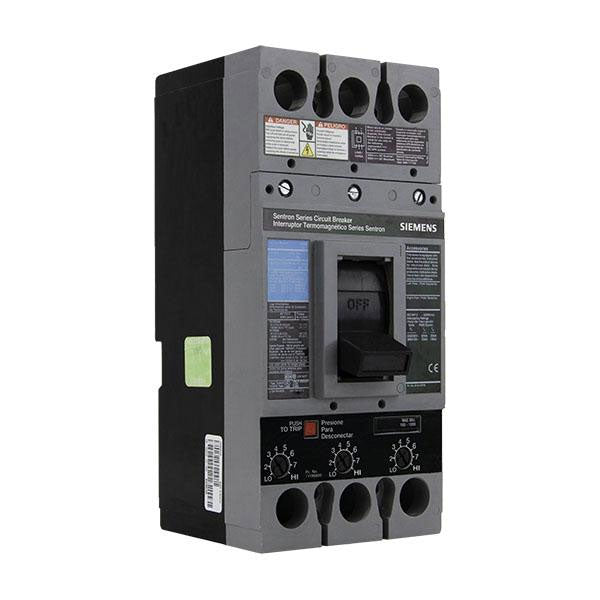

FXD62B090 is a Siemens 2 pole, 90 amp, 600 volt molded case circuit breaker designed for bolt-on mounting with a 35kA interrupt rating at 480V.This Siemens FXD62B090 circuit breaker belongs to the Sentron family, Type FXD, and features a thermal magnetic trip unit. It supports single-phase power and is rated for 600 VAC at 50/60 Hz and 250 VDC. The breaker frame is FD series with a bolt-on mounting type, providing reliable protection with a 35kA interrupting capacity at 480 volts. It meets industry standards including UL 489 and ANSI C37.
- Key Specifications
- Amperage: 90 Amps
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA at 480V
- Series/Frame: Sentron FXD, FD Frame
- Trip Unit: Thermal Magnetic
- Phase: Single Phase
- Certifications: UL 489, ANSI C37
- Part Number: FXD62B090
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
- UPC : 783643211100
- GTIN : 00783643211100
- Country of Origin : Mexico
- Weight : 7
- Certification : UL, CSA, IEC
