Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD62B175L

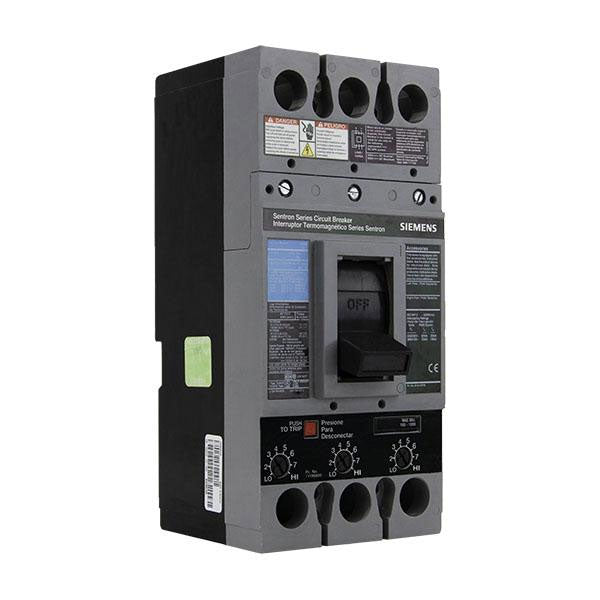

FXD62B175L - Siemens 2-pole molded case circuit breaker with thermal-magnetic trip, rated 175A at 600VAC.The Siemens FXD62B175L features FD frame size, non-interchangeable thermal-magnetic trip unit, and line/load side lugs for versatile installations in commercial and industrial applications. It provides reliable protection against overloads and short circuits with high interrupt ratings suitable for demanding environments.
- Amperage: 175A
- Voltage: 600VAC
- Poles: 2
- Frame: FD
- Series/Type: FXD6
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 22kA@600VAC, 35kA@480VAC, 65kA@240VAC
- Mounting: Bolt-On
- Certifications: UL 489, IEC 60947-2
- Wire Range: #6-350kcmil CU / #4-350kcmil AL
- Dimensions: 4.5in W x 9.5in H x 4in D
Specifications
- Part Number: FXD62B175L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 175
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643005594
- GTIN : 00783643005594
- Country of Origin : Mexico
- Weight : 8.62
- Certification : UL, CSA, IEC
