Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD62B100L

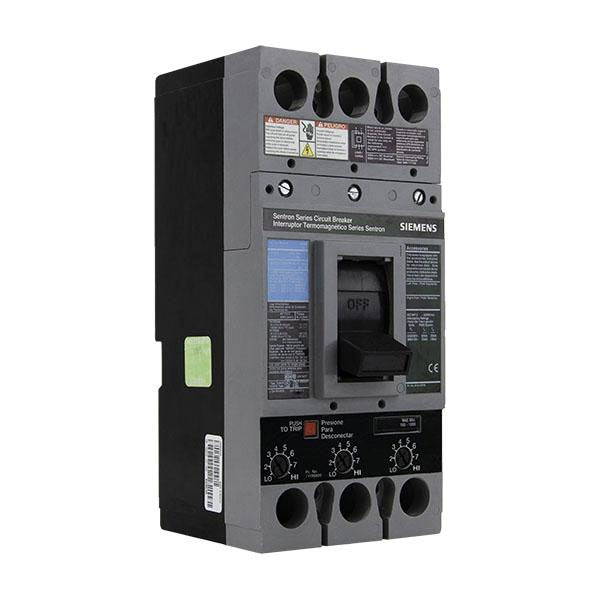

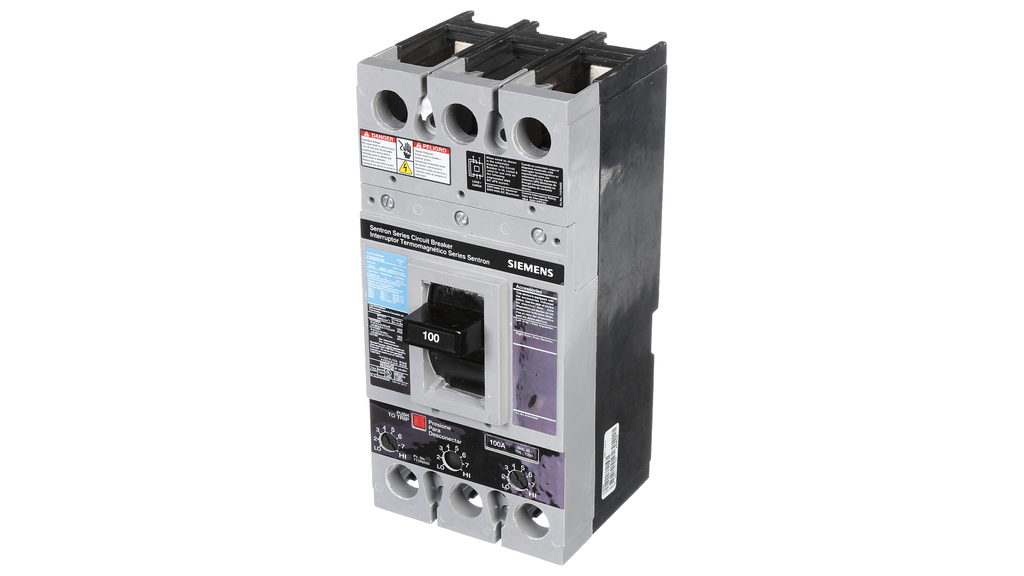

FXD62B100L - Siemens Sentron Series molded case circuit breaker with thermal-magnetic trip protection.This 2-pole breaker from the FXD6 frame delivers 100A at 600VAC with bolt-on or lug connections, designed for reliable low voltage circuit protection in industrial applications.
- Part Number: FXD62B100L
- Manufacturer: Siemens
- Series/Frame: FXD6 / Sentron / FD
- Amperage: 100A
- Voltage: 600VAC
- Poles: 2
- Trip Unit: Thermal-Magnetic
- Connection: Bolt-On / FX Lug
- Interrupt Rating: 22kA
Specifications
- Part Number: FXD62B100L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643005556
- GTIN : 00783643005556
- Country of Origin : Mexico
- Weight : 8.62
- Certification : UL, CSA, IEC
