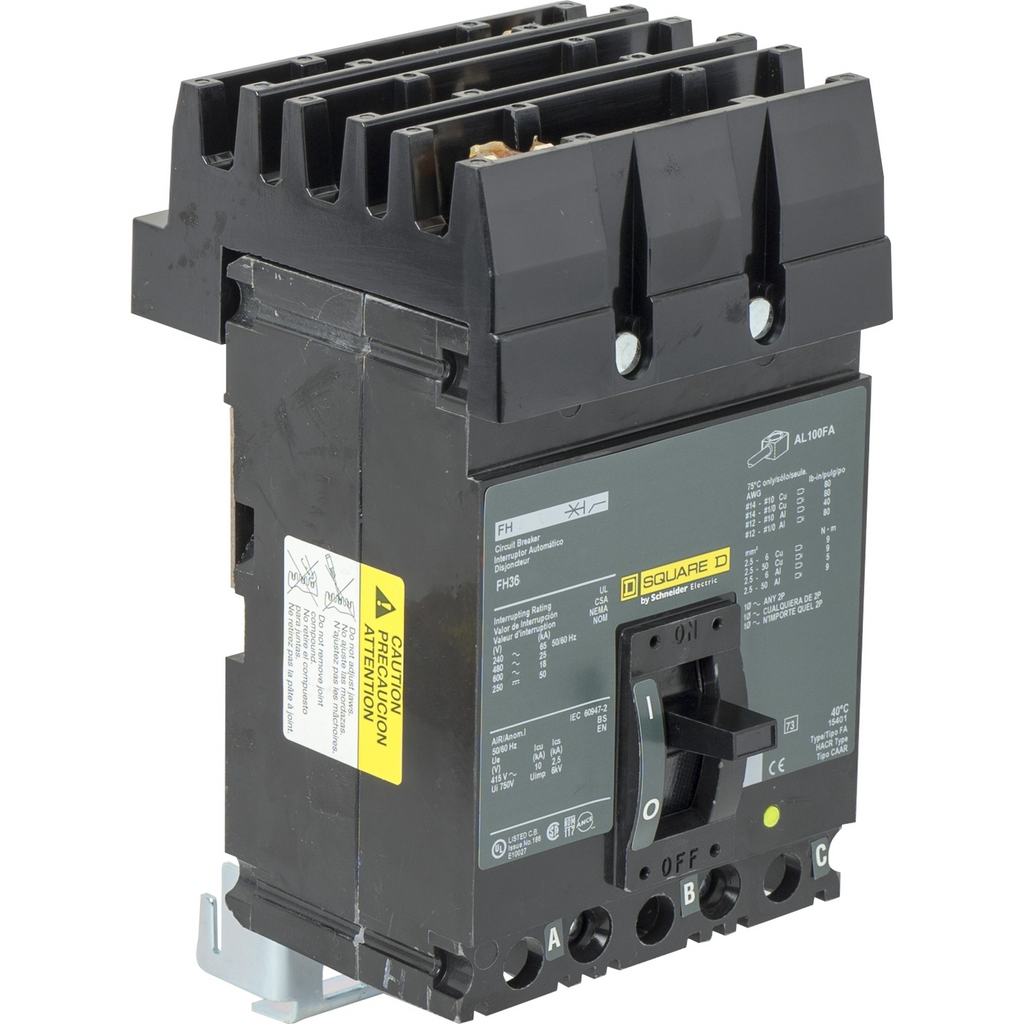

FH360701021 - Square D 70A 600V 3 Pole I-Line Plug-In Molded Case Circuit Breaker with Shunt Trip

FH360701021

FH360701021 is a Square D molded case circuit breaker designed for power distribution applications with a 70 amp rating and 600 volt capacity.This FH model breaker features a 3-pole configuration with a plug-in I-Line mounting style, thermal magnetic trip unit, and a shunt trip rated at 120 volts. It offers high interrupting ratings up to 25kA at 480 VAC and complies with UL, CSA, and IEC certifications. The breaker supports a wide voltage range including 240/480/600 VAC and 250 VDC, with a frame type F and terminal wire sizes from 12 to 1/0 AWG aluminum or 14 to 1/0 AWG copper.

• Amperage: 70A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kA at 480 VAC, 65kA at 240 VAC, 18kA at 600 VAC
• Frame Type: F
• Trip Unit: Thermal Magnetic with 120/208/240 VAC Shunt Trip
• Certifications: UL, CSA, IEC
• Terminal Wire Size: 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper
• Dimensions: 4.5" W x 4.13" D x 6" H
• Brand: Square D I-Line

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120/240Vac shunt trip

Specifications

• Part Number: FH360701021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590107607
• GTIN : 00785901076070
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6.66
• Certification : Ul Listed
