FH36050CBA - Square D 3-Pole 50A 600V Molded Case Circuit Breaker I-Line

FH36050CBA

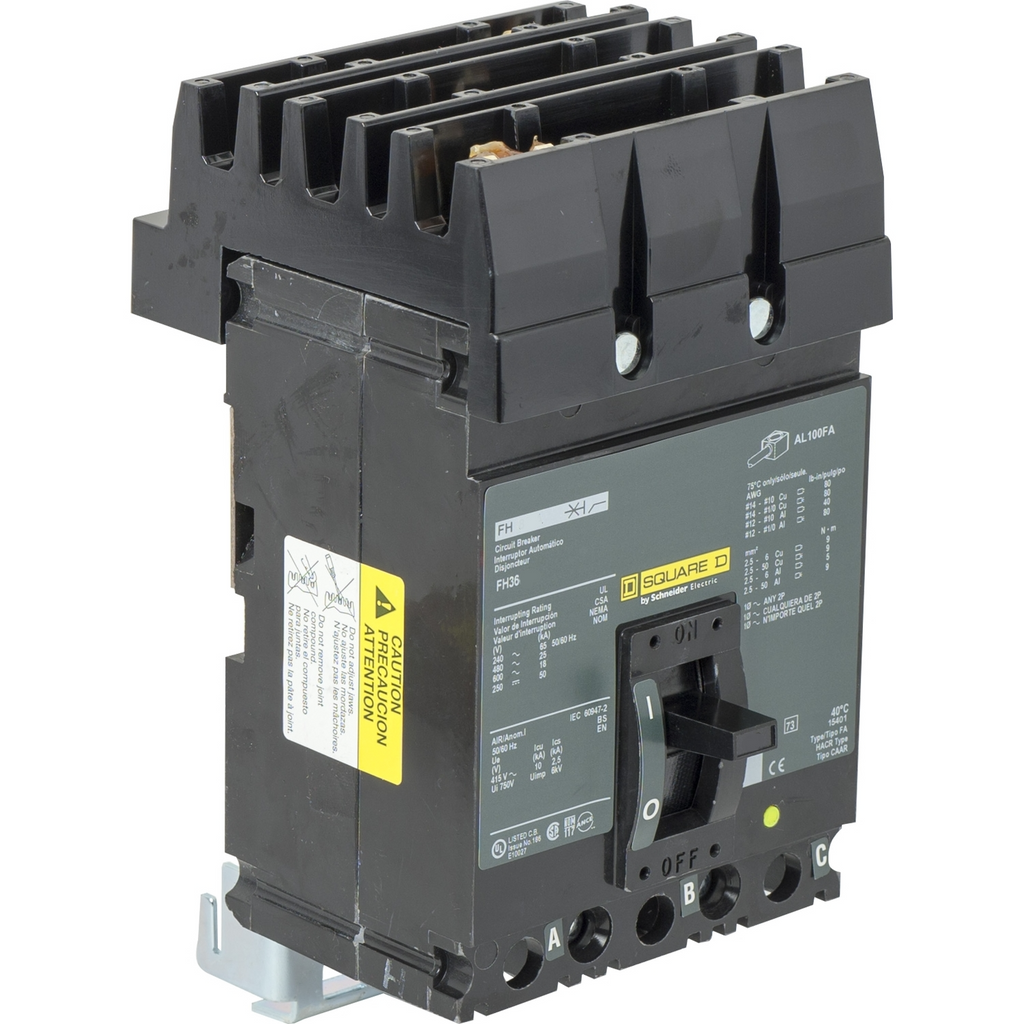

FH36050CBA is a Square D molded case circuit breaker designed for industrial power distribution applications with thermal-magnetic protection and I-Line style plug-in mounting.

This 3-pole circuit breaker features a 50-amp current rating at 600VAC with a 25kA interrupting capacity at 480V and 18kA at 600V. The FH frame type delivers reliable long-time and instantaneous trip functions with a magnetic hold current of 400A. The I-Line connection type allows for direct plug-in installation into compatible panelboards and switchboards, making it ideal for Class 650, 734, and 820 I-Line systems. Temperature rated for 40 degrees Celsius operation.

• Amperage: 50A
• Voltage: 600VAC
• Poles: 3-Pole
• Frame Type: FH
• Mounting: I-Line Style Plug-In
• Trip Unit: Thermal-Magnetic
• Interrupting Rating: 25kA @ 480V, 18kA @ 600V
• Functions: Long-Time and Instantaneous Trip
• Magnetic Hold Current: 400A
• Certifications: UL, CSA, CE
• Temperature Rating: 40 degrees C
• Dimensions: 6.4 inches H x 4.5 inches W x 4.13 inches D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH36050CBA
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 6
