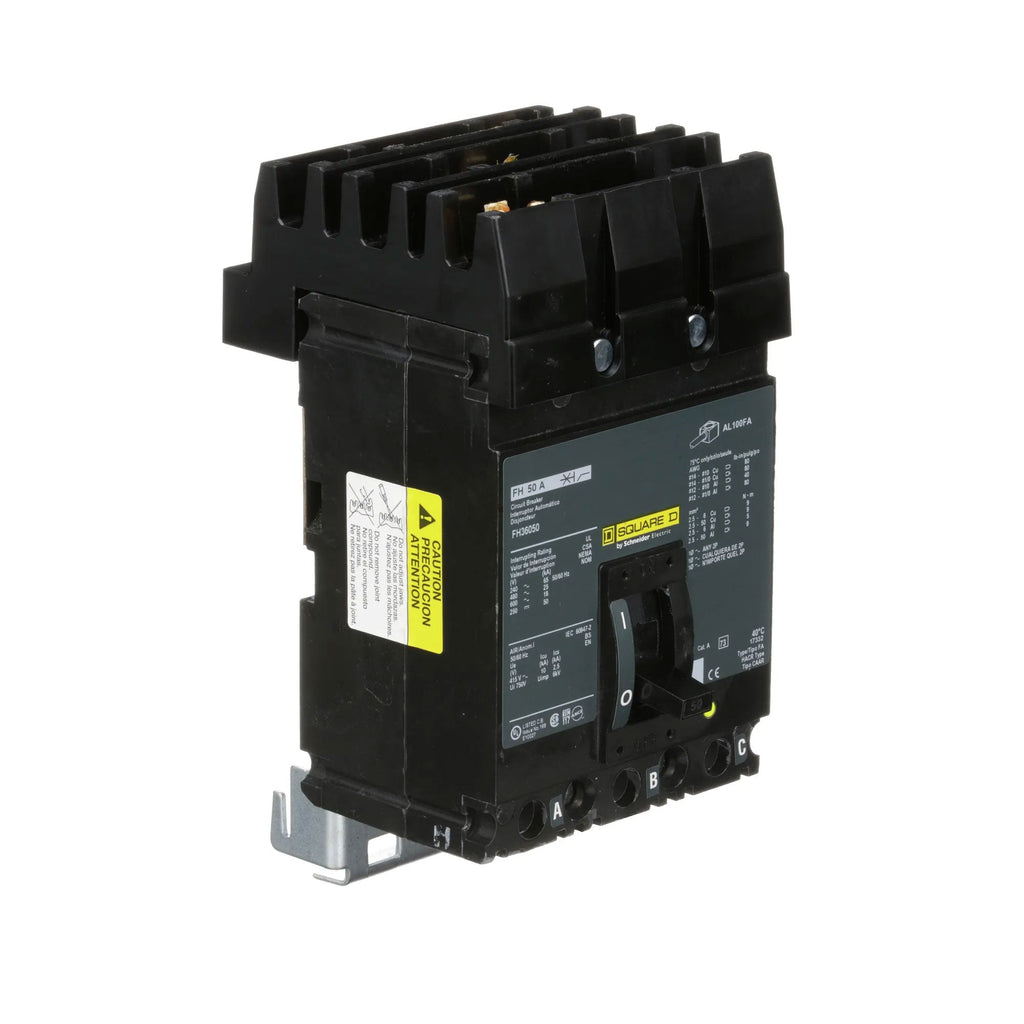

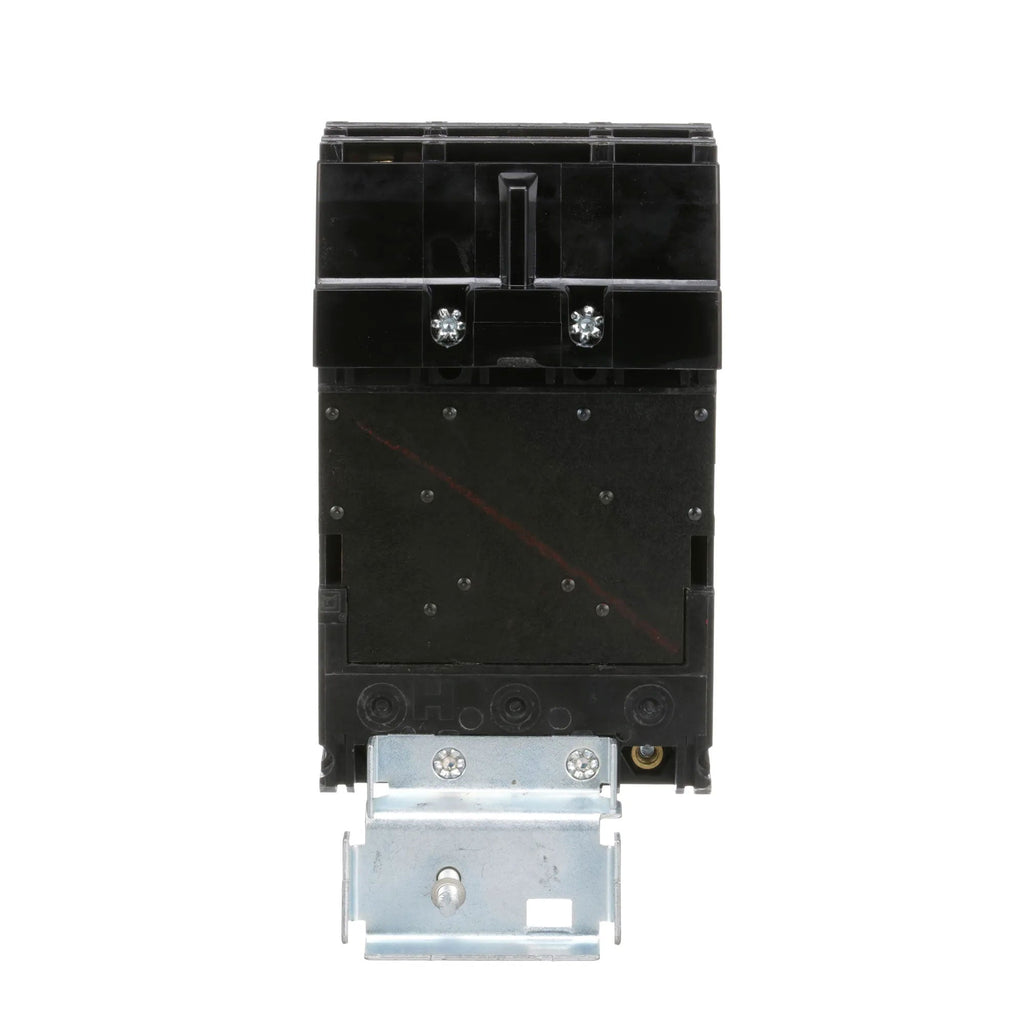

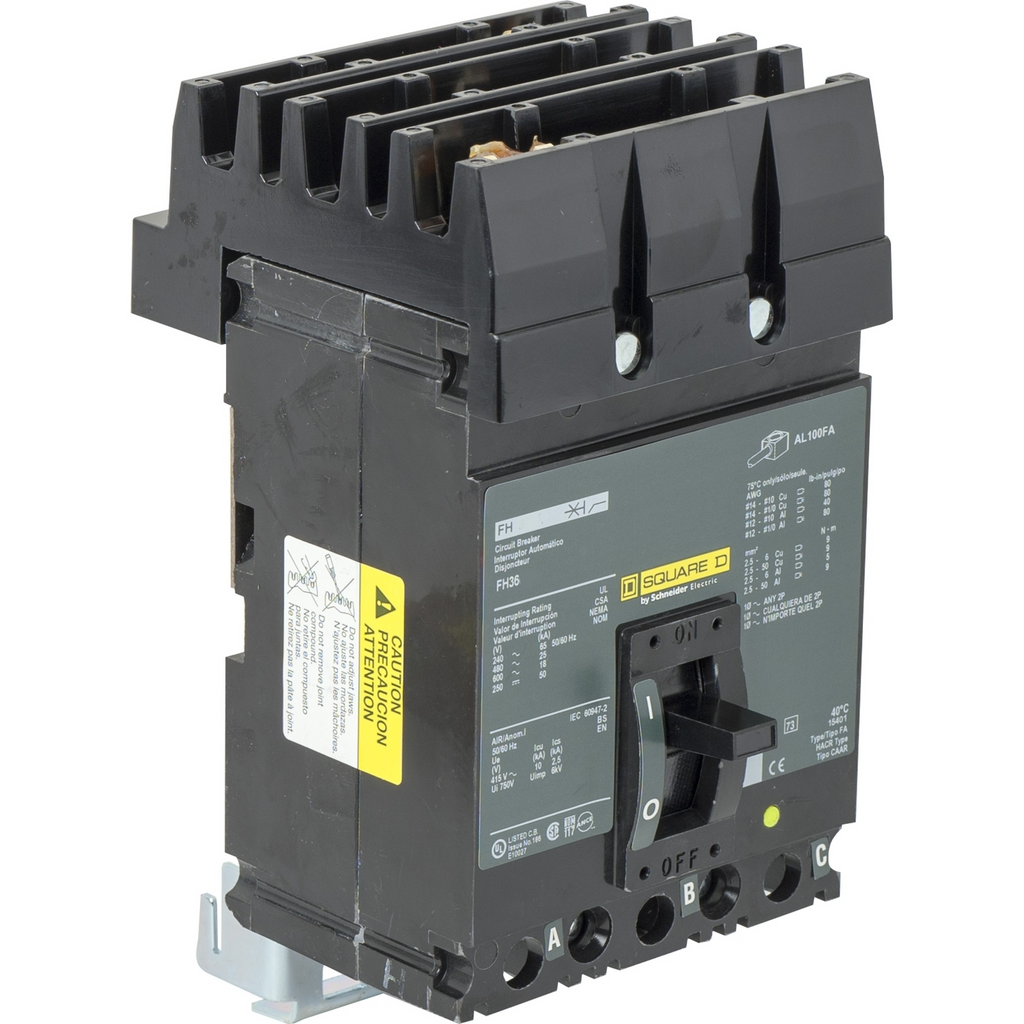

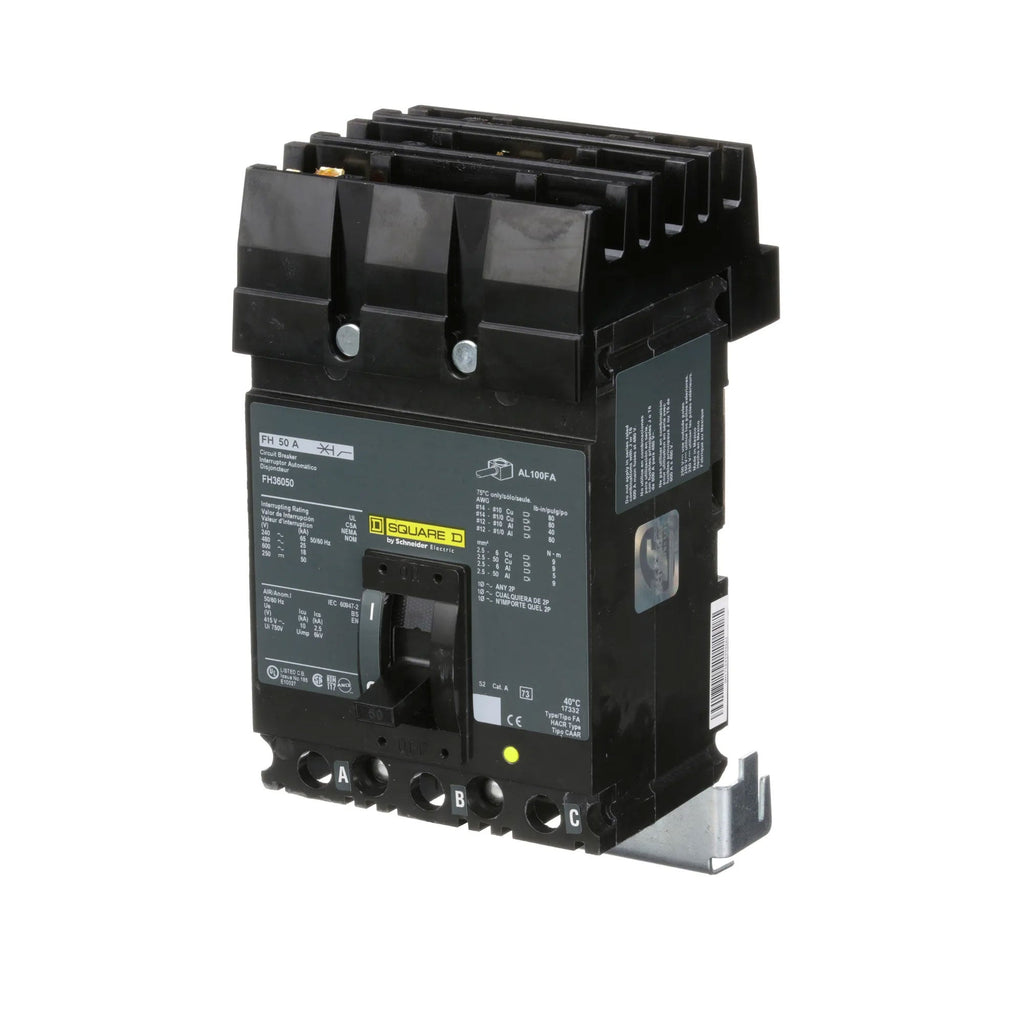

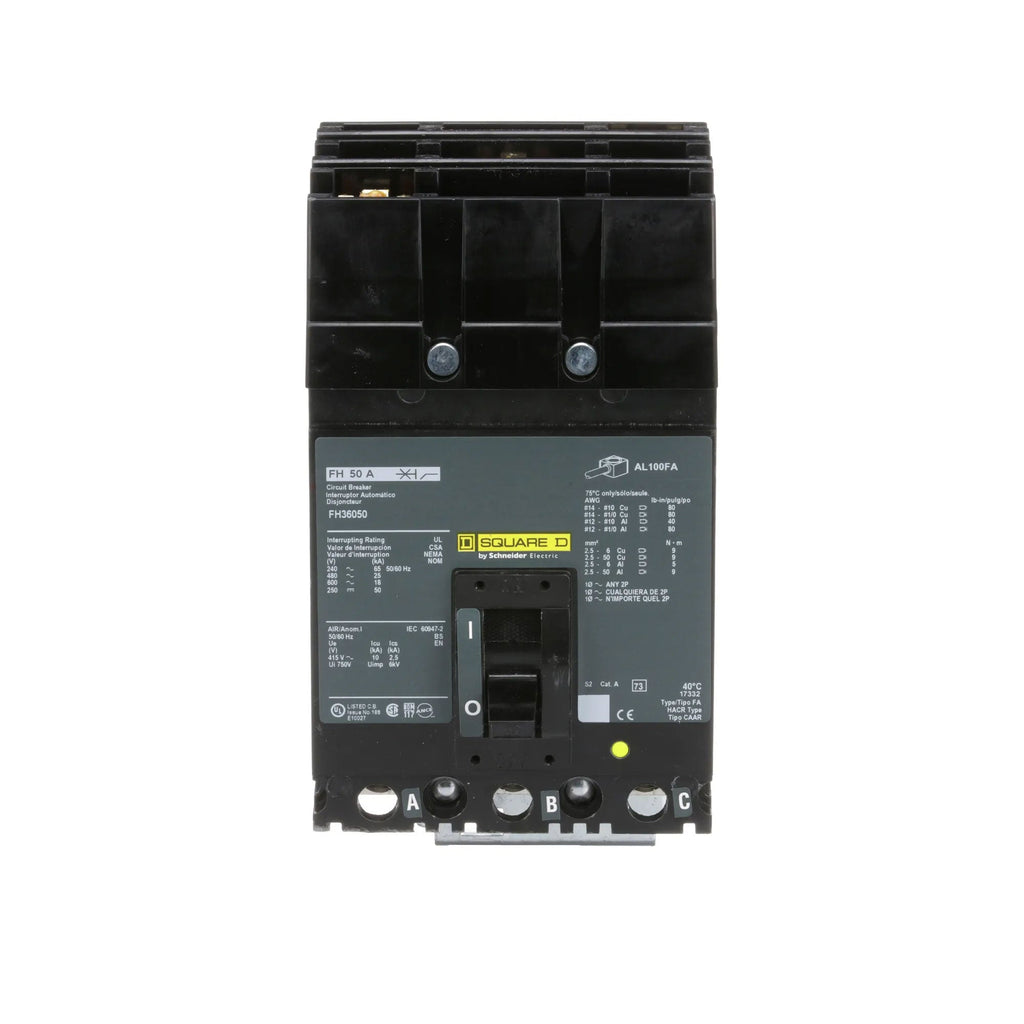

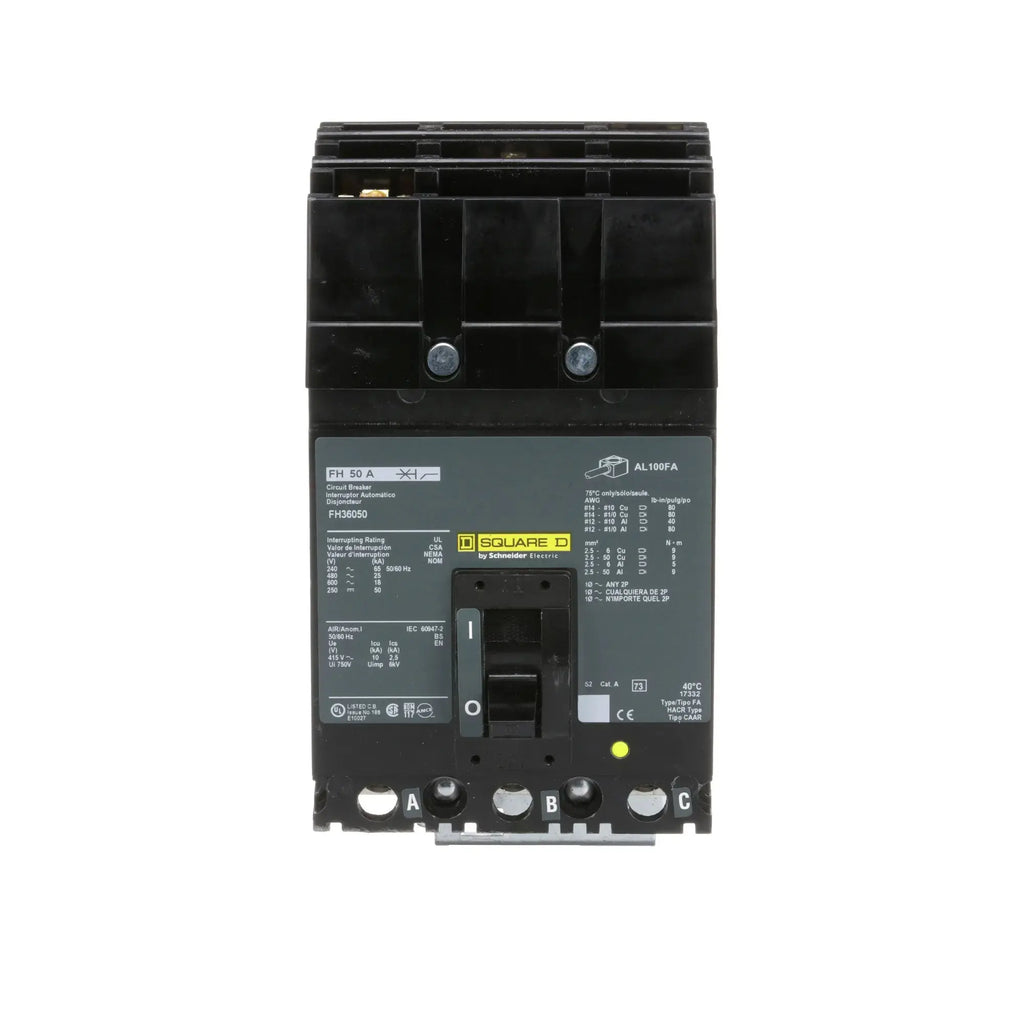

FH36050 - Square D 50A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker FH Frame

FH36050

FH36050 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 50 amps and 600 volts AC with I-Line plug-in mounting.

This FH series circuit breaker features a 25kA interrupting rating at 480V, long-time and instantaneous trip functions, and is UL, CSA, and CE certified. It is designed for 3-phase power distribution with a 3-pole configuration and I-Line style plug-in connection. The breaker has a thermal magnetic trip unit and load side lug terminal connections, suitable for industrial and commercial applications requiring reliable overcurrent protection.

Key Specifications
• Amperage: 50A
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 25kAIC at 480V
• Frame Type: FH
• Trip Unit: Thermal Magnetic with LI (long-time and instantaneous) functions
• Certifications: UL, CSA, CE
• Terminal Connection: Load side lug
• Dimensions: 4.5" W x 4.13" D x 6.4" H
• Temperature Rating: 40°C
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901241362
• GTIN : 00785901241362
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
