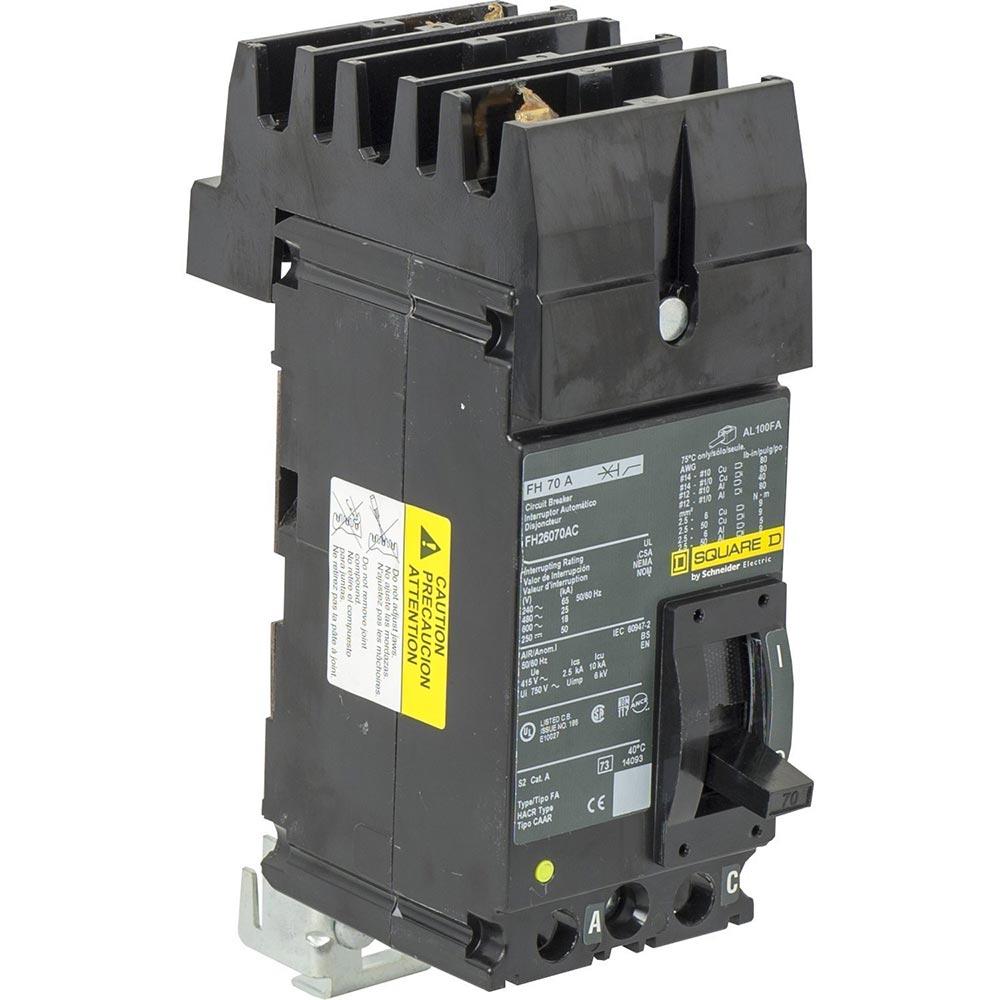

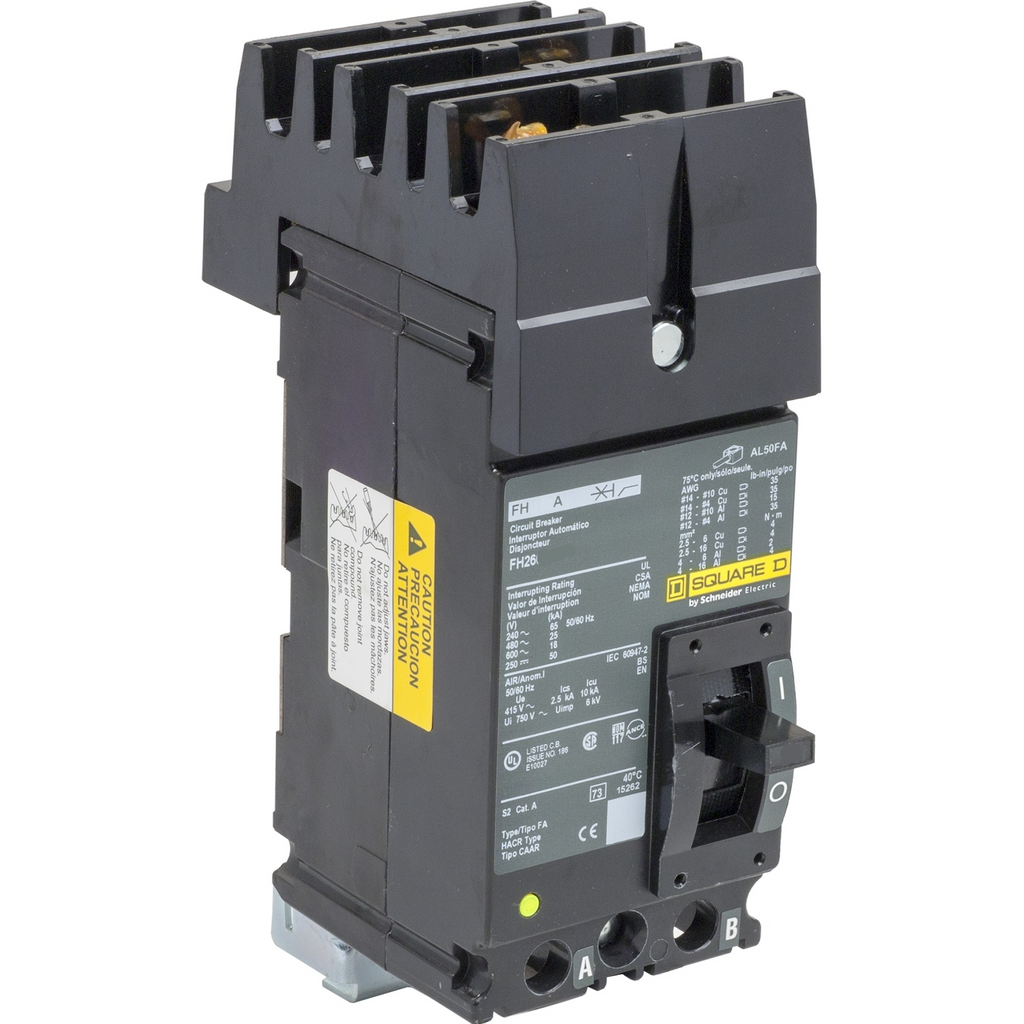

FH26070AC - Square D 70A 600V 2 Pole I-Line Style Circuit Breaker FH Frame

FH26070AC

FH26070AC is a Square D 2 pole, 70 amp, 600 volt I-Line style plug-in circuit breaker designed for reliable power distribution.This thermal magnetic molded case circuit breaker features a 65kA interrupting rating at 240V AC and 25kA at 480V AC, with long-time and instantaneous trip functions. It mounts on an I-Line style plug-in connection and supports lug load terminal connections. Certified by UL and CSA, it is suitable for single-phase applications and compatible with AWG 14 to 1/0 copper or aluminum wiring.

Key Specifications
• Manufacturer: Square D
• Part Number: FH26070AC
• Amperage: 70 Amps
• Voltage Rating: 600 Volts AC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 65kA at 240V AC, 25kA at 480V AC
• Frame Type: FH
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Terminal Connection: Lug Load
• Certifications: UL, CSA
• Phase: Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH26070AC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901343325
• GTIN : 00785901343325
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
• Wire Size : AWG 14...AWG 1/0 copper)1, AWG 12...AWG 1/0 aluminium)1
