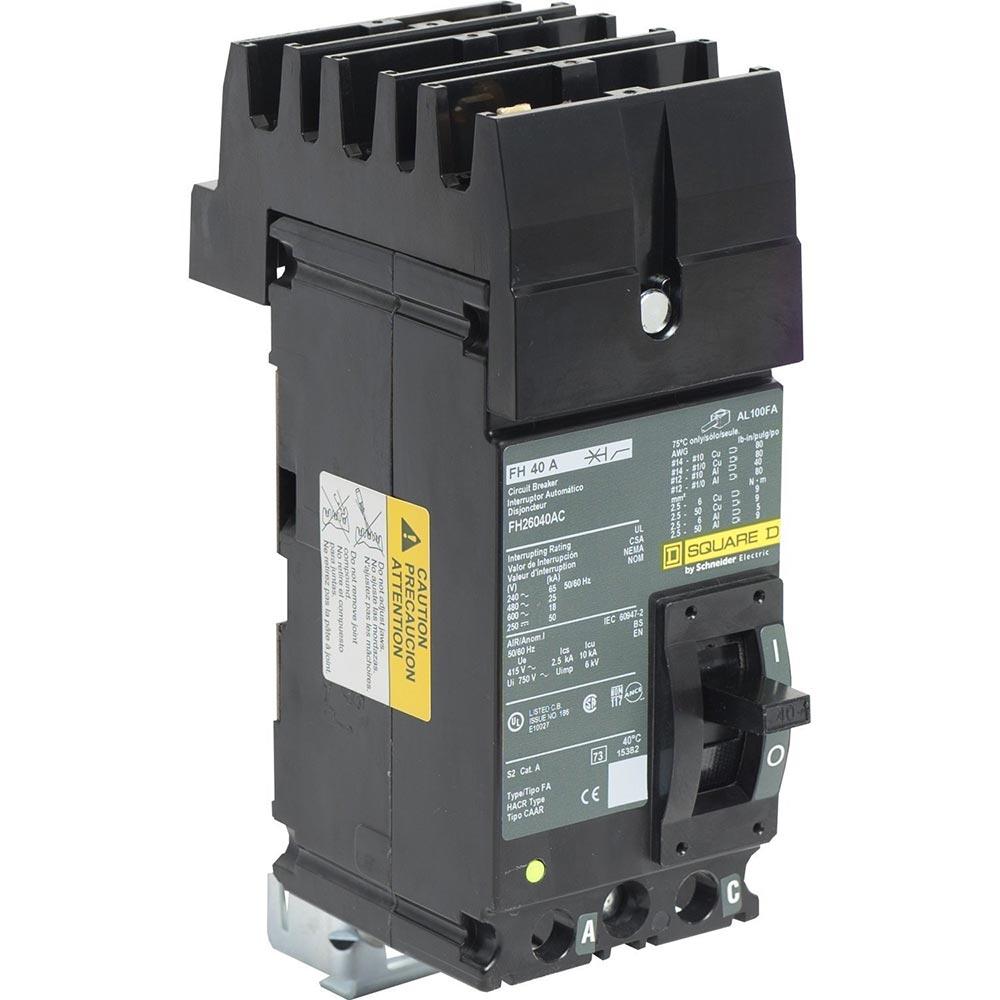

FH26040AC - Square D 40 Amp 600V 2 Pole I-Line Style Thermal Magnetic Circuit Breaker

FH26040AC

FH26040AC is a 2 pole, 40 amp, 600 volt thermal magnetic molded case circuit breaker from Square D designed for I-Line style plug-in panelboards.This FH series breaker features a 25kA interrupting rating at 480V, long time and instantaneous trip functions, and supports both AC and DC voltages up to 600VAC and 250VDC. It mounts via I-Line style plug-in connection and is UL, CSA, NOM, IEC, CCC, and CE certified for industrial and commercial power distribution applications.

Key Specifications
• Amperage: 40 Amps
• Voltage: 600VAC, 250VDC
• Poles: 2
• Interrupting Rating: 25kAIC @ 480V
• Series/Frame: FH
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Wire Size: 14 to 1/0 AWG Copper/Aluminum
• Phase: Single Phase
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH26040AC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901254768
• GTIN : 00785901254768
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
• Certification : UL, CSA, NOM, IEC, CCC, CE
• Wire Size : 14 to 1/0 AWG AL/CU
