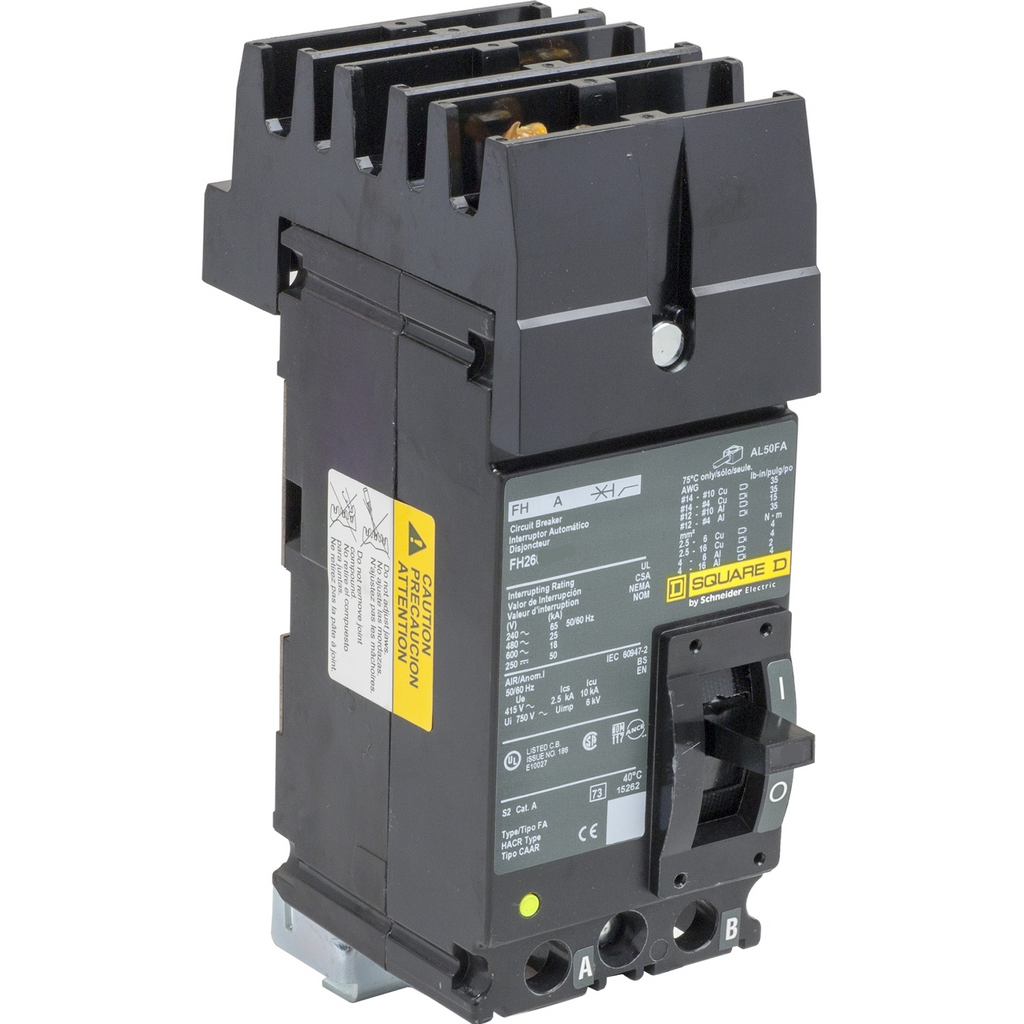

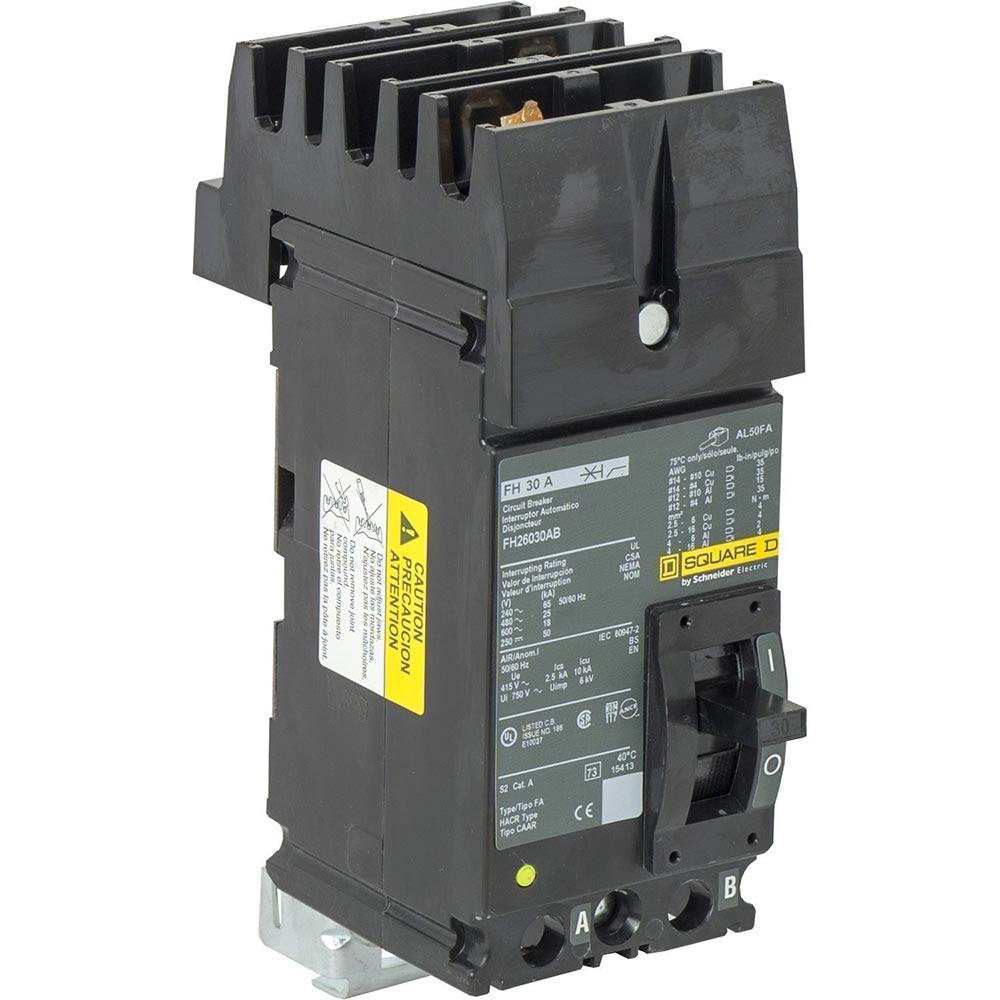

FH26030AB - Square D 30A 600V 2 Pole I-Line Plug-In Circuit Breaker Thermal Magnetic

FH26030AB

FH26030AB is a 2 pole, 30 amp, 600V I-Line plug-in circuit breaker designed for reliable thermal magnetic protection in commercial and industrial applications. This Square D molded case breaker features a high interrupting rating and is suitable for use in I-Line bus systems. Engineered for durability and safety, the FH26030AB offers long time and instantaneous trip functions, a 25kAIC interrupting rating at 480V, and is rated for use at 40°C ambient temperature. The breaker is designed for easy installation with I-Line style plug-in connections and accepts wire sizes from 14 to 4 AWG AL/CU.

• Part Number: FH26030AB
• Manufacturer: Square D
• Amperage: 30A
• Voltage: 600VAC, 250VDC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kAIC@480V
• Series/Frame: FH
• Trip Unit: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Lug
• Certifications: UL, CSA, NOM, IEC, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH26030AB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901254737
• GTIN : 00785901254737
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
• Certification : UL, CSA, NOM, IEC, CCC, CE
• Wire Size : 14 to 4 AWG AL/CU
